CH680-3032 - Kohler Command PRO Engine, Made for Makelim, 22.5hp, 16.8kW Ignition/ Charging Group 5-24-521 Parts Diagram

Command PRO Engine, Made for Makelim, 22.5hp, 16.8kW

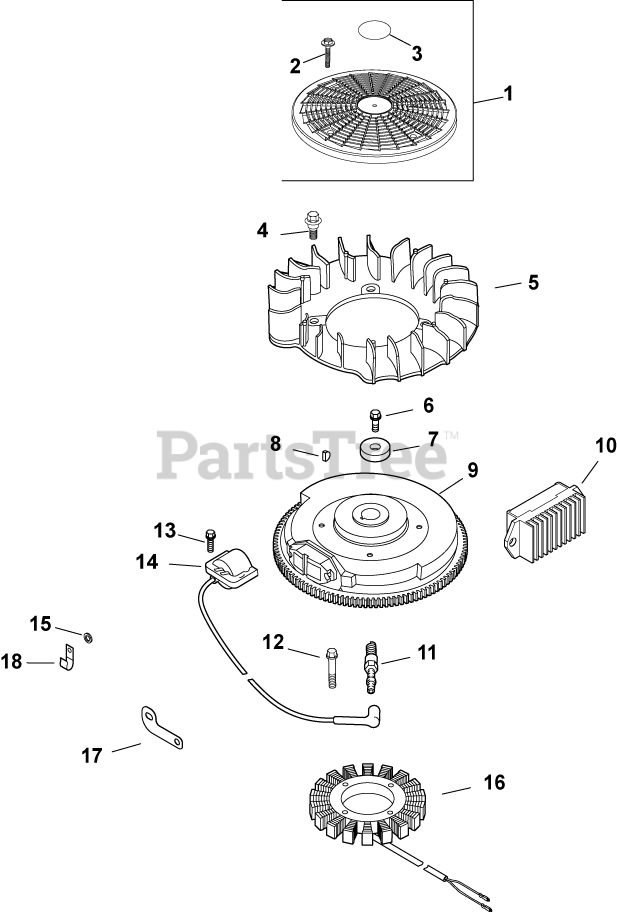

Ignition/ Charging Group 5-24-521 Parts Diagram

  • Title

1

Kohler 54 755 15-S

KIT, GRASS SCREEN

$41.99

$

In Stock, only 2 left!

0

2

Kohler 25 086 117-S

SCREW, FLG SEMS M4X.7X25

$3.49

$

In Stock, only 4 left!

0

3

Kohler 24 113 18-S

DECAL, GRASS SCREEN USE 24 113 499-S
(Superseded to 24 113 499-S)

$4.99

$

Usually ships in 2-5 days

0

4

Kohler 25 086 47-S

BOLT, SHOULDER

$2.99

$

In Stock, Qty 20+

0

5

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$50.99

$

In Stock, only 2 left!

0

6

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

Usually ships in 2-5 days

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

9

Kohler 24 025 55-S

FLYWHEEL

$310.99

$

Usually ships in 2-5 days

0

10

Kohler 25 403 21-S

REGULATOR, RECTIFIER USE 25 403 32-S
(Superseded to 25 403 48-S)

$87.99

$

In Stock, only 4 left!

0

11

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

12

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.99

$

In Stock, only 2 left!

0

13

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.99

$

In Stock, Qty 20+

0

14

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$93.99

$

Usually ships in 2-5 days

0

15

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 2 left!

0

16

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 11

0

17

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

$5.99

$

In Stock, only 2 left!

0

18

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

24176150-S

Kohler 24 176 150-S

HARNESS, WIRING ASSEMBLY

Note: NOT ILLUSTRATED

$59.99

$

Usually ships in 2-5 days

0

2417641-S

Kohler 24 176 41-S

LEAD, DUPLEX

Note: NOT ILLUSTRATED

$7.99

$

In Stock, only 2 left!

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRATED

$17.99

$

In Stock, only 1 left!

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$8.49

$

Usually ships in 2-5 days

0
