CH680-3174 - Kohler Command PRO Engine, Made for Gardner-Matweld, 22.5hp, 16.8kW 03 Lubrication Parts Diagram

Command PRO Engine, Made for Gardner-Matweld, 22.5hp, 16.8kW

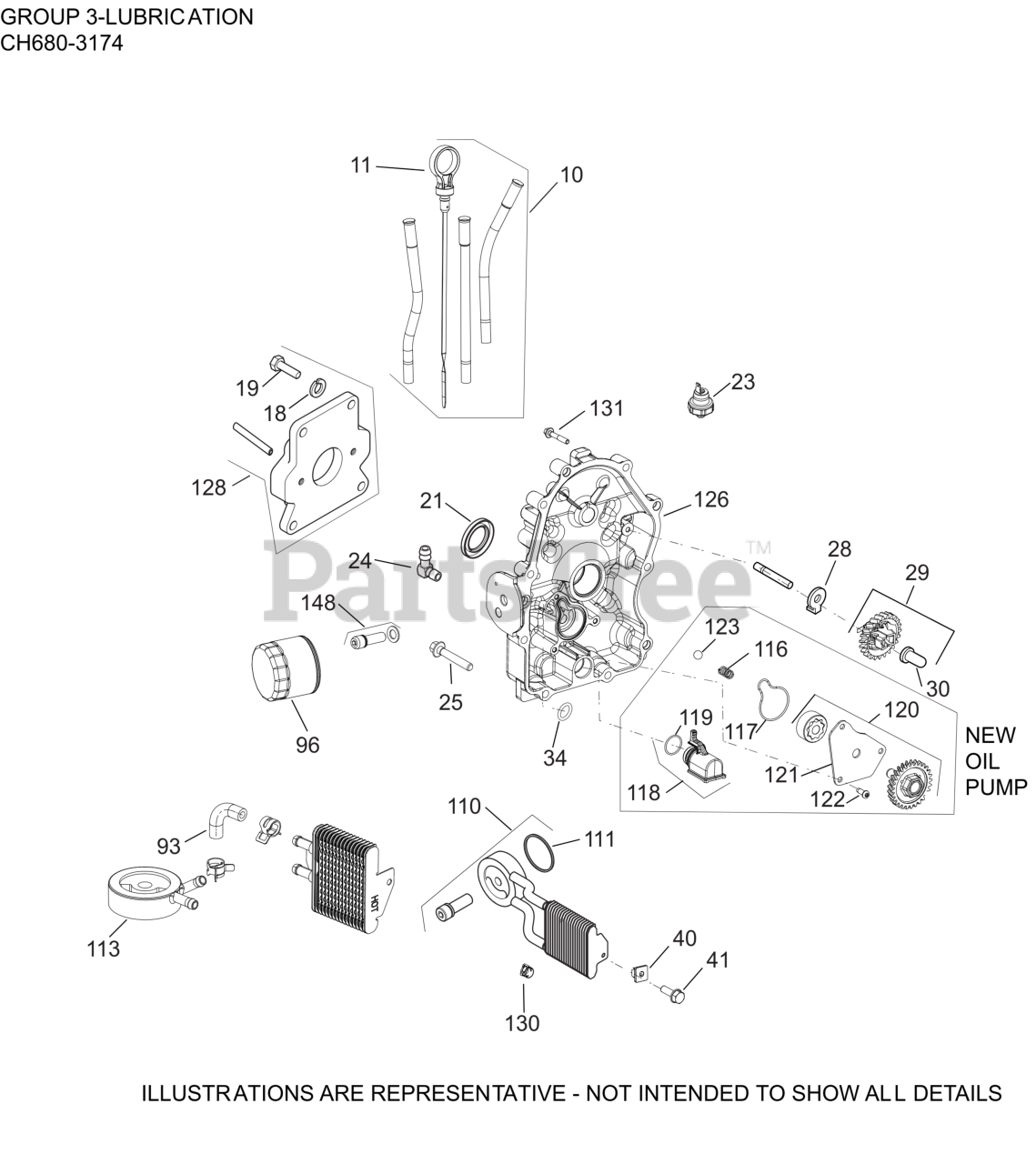

03 Lubrication Parts Diagram

  • Title

10

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

$45.99

$

In Stock, only 2 left!

0

11

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, Qty 7

0

18

Kohler X-23-1-S

WASHER, SPRING LOCK 7/16"

$3.99

$

Usually ships in 2-5 days

0

19

Kohler X-8-21-S

SCREW,CAP HD 7/16-14x1 1/2"

$3.49

$

Usually ships in 2-5 days

0

21

Kohler 25 032 06-S

OIL SEAL

$13.99

$

In Stock, Qty 20+

0

23

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, Qty 13

0

24

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

$14.99

$

In Stock, only 4 left!

0

25

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$3.49

$

In Stock, Qty 20+

0

28

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

29

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$76.99

$

In Stock, Qty 5

0

30

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 20+

0

34

Kohler 24 153 08-S

O-RING

$8.99

$

In Stock, Qty 20+

0

40

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 4 left!

0

41

Kohler 25 086 784-S

SCREW, HEX HEAD

$2.49

$

In Stock, Qty 17

0

93

Kohler 24 326 17-S

KIT, HOSE 140MM

$19.99

$

In Stock, only 3 left!

0

96

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

110

Kohler 24 594 57-S

COOLER,OIL&DIVERTER ASSY-USE 24 594 69-S
(Superseded to 24 594 69-S)

Note: BEFORE S/N 5322200011

$209.99

$

In Stock, only 3 left!

0

111

Kohler 24 153 21-S

O-RING, OIL COOLER

$6.49

$

In Stock, Qty 20+

0

113

Kohler 24 029 80-S

ADAPTER,OIL FILTER (CV EFI)-(#DSC)

Note: BEFORE S/N 5320100011

$

$

Not available

147

Kohler 24 029 126-S

ADAPTER, OIL COOLER ASSY-USE 24 594 69-S

Note: BEFORE S/N 5300600011 & AFTER S/N 5320100001

$78.99

$

In Stock, only 3 left!

0

116

Kohler 24 089 74-S

SPRING, COMPRESSION

$2.49

$

In Stock, only 1 left!

0

117

Kohler 24 153 33-S

SEAL, OIL PUMP COVER

$3.99

$

In Stock, only 1 left!

0

118

Kohler 24 381 13-S

PICK-UP ASSEMBLY, OIL

$7.49

$

In Stock, only 1 left!

0

119

Kohler 24 153 34-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, only 2 left!

0

120

Kohler 24 393 70-S

PUMP ASSEMBLY, OIL

$41.99

$

In Stock, only 2 left!

0

121

Kohler 24 096 151-S

COVER, OIL PUMP

$2.49

$

In Stock, only 2 left!

0

122

Kohler 25 086 792-S

SCREW, BUTTON HEAD

$2.49

$

Usually ships in 2-5 days

0

123

Kohler 25 194 03-S

PRESSURE RELIEF BALL

$3.49

$

In Stock, only 2 left!

0

126

Kohler 24 009 238-S

KIT, CLOSURE PLATE ASSY

$406.99

$

Usually ships in 2-5 days

0

128

Kohler 24 755 09-S

KIT, PUMP ADAPTER

$313.99

$

Usually ships in 2-5 days

0

130

Kohler 24 237 16-S

CLAMP, HOSE LOW PROFILE

$4.99

$

In Stock, only 3 left!

0

131

Kohler 25 086 317-S

SCREW, HEX FLANGE

$2.99

$

In Stock, Qty 20+

0

148

Kohler 24 136 10-S

KIT, OIL FILTER NIPPLE

$13.99

$

In Stock, only 1 left!

0

149

Kohler 24 594 69-S

KIT, OIL COOLER

Note: AFTER S/N 5300600001

$209.99

$

In Stock, only 3 left!

0

153

Kohler 25 144 22-S

SHAFT, GOVERNOR GEAR

$5.49

$

Usually ships in 2-5 days

0

154

Kohler 32 468 02-S

WASHER, FLAT

$2.99

$

In Stock, only 1 left!

0
