CH680-3174 - Kohler Command PRO Engine, Made for Gardner-Matweld, 22.5hp, 16.8kW 05 Ignition/Charging Parts Diagram

Command PRO Engine, Made for Gardner-Matweld, 22.5hp, 16.8kW

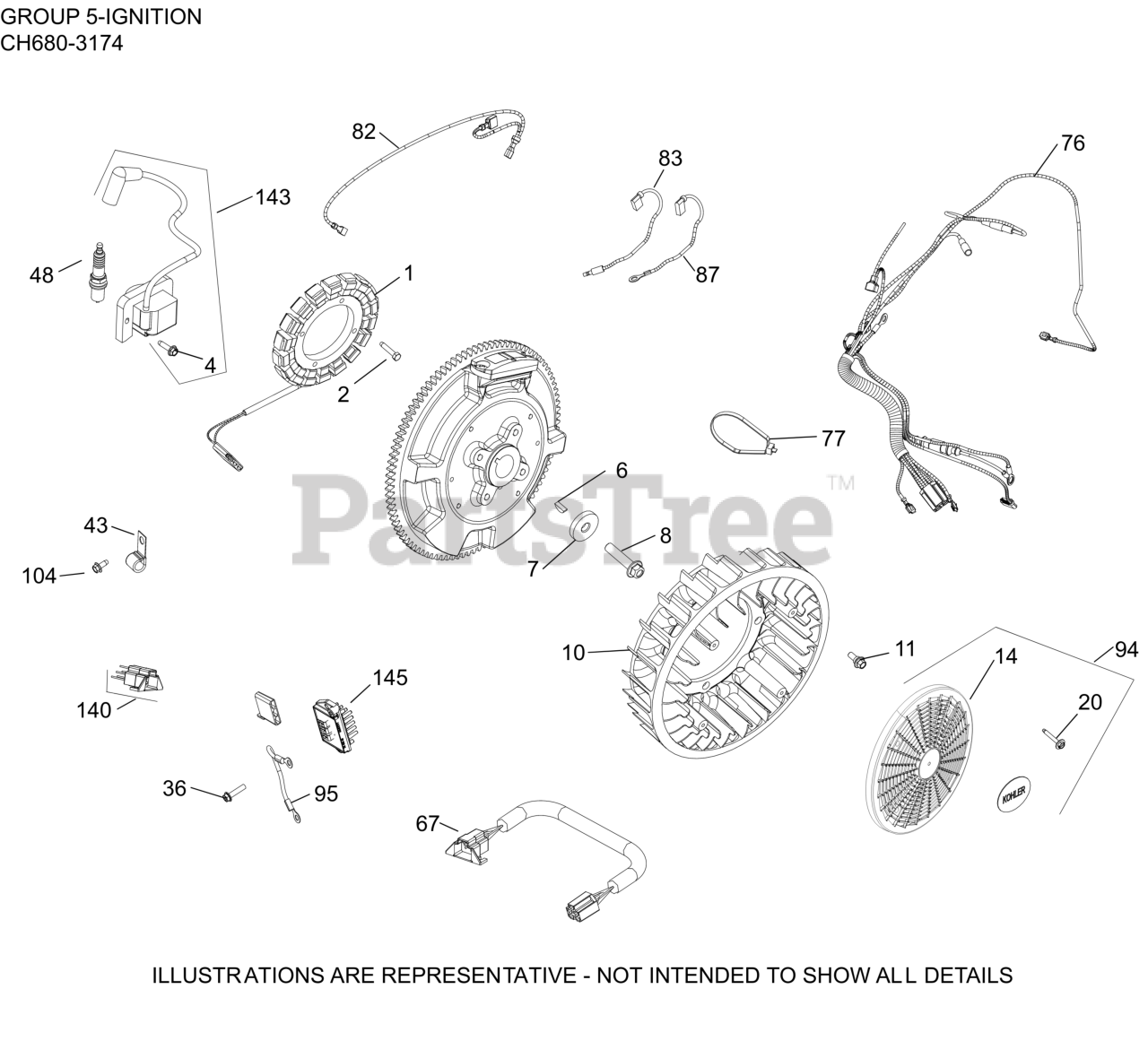

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

$194.99

$

In Stock, only 2 left!

0

2

Kohler 25 086 412-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 086 472-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 10

0

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

7

Kohler 25 468 09-S

WASHER, FLAT

$6.49

$

In Stock, only 2 left!

0

8

Kohler 25 086 361-S

SCREW, HEX FLANGE

$4.49

$

In Stock, only 4 left!

0

10

Kohler 24 157 11-S

FAN-USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, only 1 left!

0

11

Kohler 25 086 47-S

BOLT, SHOULDER

$3.49

$

In Stock, Qty 20+

0

14

Kohler 24 162 44-S

SCREEN, GRASS

$16.99

$

Usually ships in 2-5 days

0

20

Kohler 25 086 117-S

SCREW, FLG SEMS M4x.7x25

$2.99

$

In Stock, only 4 left!

0

36

Kohler 25 086 785-S

SCREW, HEX FLANGE HI-LO

$2.49

$

Usually ships in 2-5 days

0

43

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

48

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

67

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

76

Kohler 24 176 150-S

HARNESS WIRING ASSEMBLY

$56.99

$

Usually ships in 2-5 days

0

77

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

82

Kohler 24 176 41-S

LEAD, DUPLEX

$7.99

$

In Stock, only 2 left!

0

83

Kohler 24 518 09-S

LEAD, OIL SENTRY

$17.99

$

In Stock, only 1 left!

0

87

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

$6.99

$

Usually ships in 2-5 days

0

94

Kohler 54 755 15-S

KIT GRASS SCREEN

$41.99

$

In Stock, only 2 left!

0

95

Kohler 24 518 43-S

LEAD

$2.99

$

Usually ships in 2-5 days

0

104

Kohler 25 086 693-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

140

Kohler 25 155 07-S

CONNECTOR

$57.99

$

Usually ships in 2-5 days

0

143

Kohler 24 584 201-S

KIT IGNITION MODULE

$

$

Currently unavailable

145

Kohler 25 403 48-S

REGULATOR, RECTIFIER (20-30AMP,FW W/OVP)

$87.99

$

In Stock, Qty 15

0

153

Kohler 24 025 121-S

FLYWHEEL ASSEMBLY (LW, 22)

$311.99

$

In Stock, only 1 left!

0
