CH680-3175 - Kohler Command PRO Engine, Made for Walker, 22.5hp, 16.8kW 08 Fuel System Parts Diagram

Command PRO Engine, Made for Walker, 22.5hp, 16.8kW

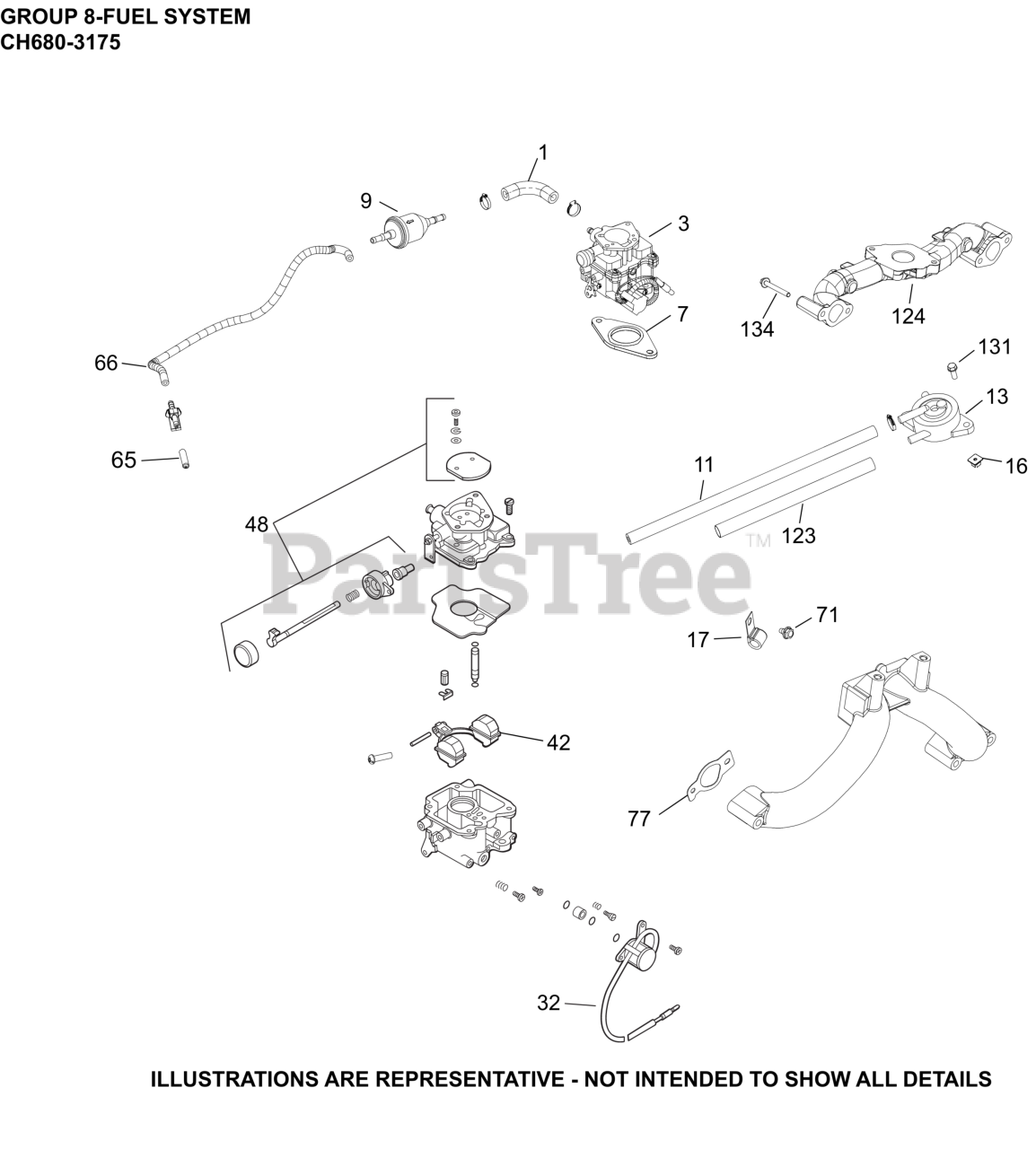

08 Fuel System Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 9

0

3

Kohler 24 853 305-S

KIT, CARBURETOR COMPLETE

$360.99

$

In Stock, only 2 left!

0

7

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, only 3 left!

0

9

Kohler 24 050 13-S

FILTER, FUEL

$17.99

$

In Stock, Qty 20+

0

11

Kohler 24 353 02-S

LINE, FLEXIBLE FUEL 15 1/2"

$9.99

$

In Stock, only 3 left!

0

13

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 19

0

16

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 4 left!

0

17

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

In Stock, only 2 left!

0

32

Kohler 24 757 01-S

KIT, SOLENOID

$261.99

$

In Stock, only 2 left!

0

42

Kohler 24 757 02-S

KIT, REPAIR FLOAT

$154.99

$

Usually ships in 2-5 days

0

48

Kohler 24 757 07-S

KIT, REPAIR CHOKE

$109.99

$

In Stock, only 1 left!

0

65

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

66

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"- (#24326143S)
(Superseded to 24 326 143-S)

$5.49

$

In Stock, only 3 left!

0

71

Kohler 25 086 406-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

77

Kohler 24 041 79-S

KIT, INTAKE MANIFOLD GASKET

$3.49

$

In Stock, only 4 left!

0

123

Kohler 25 431 35-S

SLEEVE, HEAT REFLECTIVE

$30.99

$

Usually ships in 2-5 days

0

124

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$291.99

$

Usually ships in 2-5 days

0

131

Kohler 25 086 784-S

SCREW, HEX HEAD

$2.49

$

In Stock, only 3 left!

0

134

Kohler 25 086 766-S

SCREW, HEX FLANGE

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 24 755 125-S

KIT, HIGH ALT (4000-8000 FT)

$75.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 755 201-S

KIT, HIGH ALT (8,000+ FT)

$84.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

$129.99

$

In Stock, Qty 8

0
