CH730-0023 - Kohler Command PRO Engine, Made for Dynamic Power Source, 23.5hp, 17.5kW Crankcase Goup 2-24-169 Parts Diagram

Command PRO Engine, Made for Dynamic Power Source, 23.5hp, 17.5kW

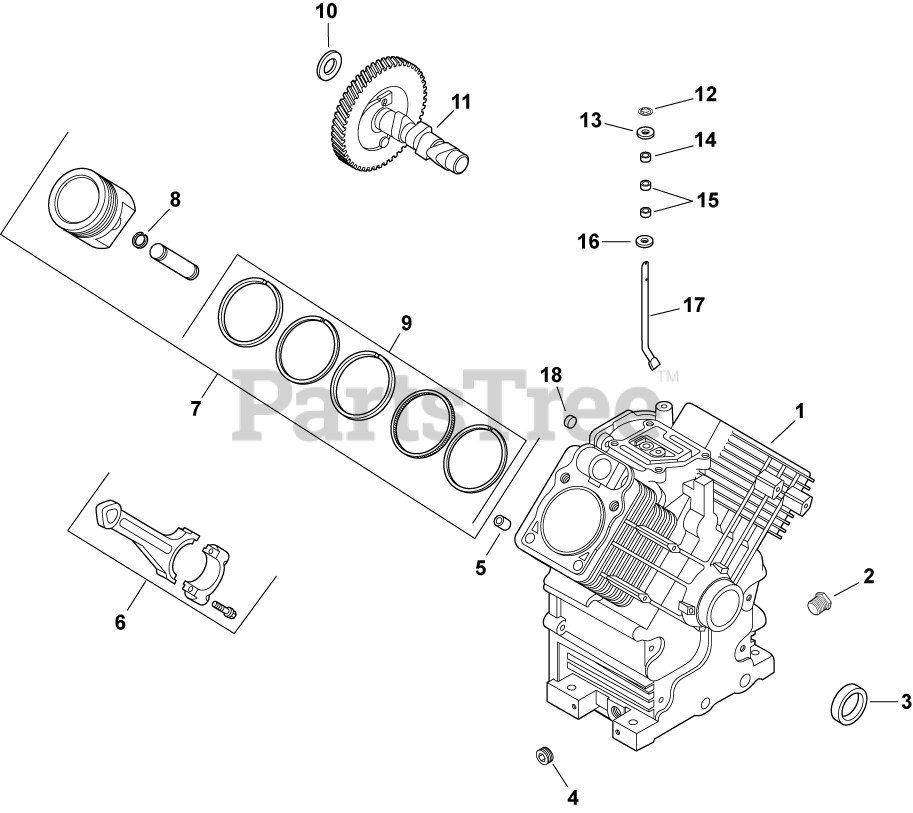

Crankcase Goup 2-24-169 Parts Diagram

  • Title

1

CRANKCASE

Note: (USE: SHORT BLOCK)

$

$

Not available

2

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

3

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$9.49

$

In Stock, Qty 20+

0

4

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

5

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 5

0

6

Kohler 24 067 24-S

ROD, CONNECTING ASSEMBLY-USE 24 067 28-S
(Superseded to 25 067 04-S)

$75.99

$

In Stock, Qty 20+

0

2406725-S

Kohler 24 067 25-S

ROD ASSY,CONNECT .25 U/S-USE 24 067 29-S
(Superseded to 25 067 05-S)

$75.99

$

In Stock, only 1 left!

0

7

Kohler 24 874 26-S

PISTON W/RINGS (STYLE A)(STD)-USE 25 874 01-S
(Superseded to 25 874 13-S)

Note: NOT ILLUSTRATED

$343.99

$

In Stock, Qty 5

0

2487427-S

Kohler 24 874 27-S

PISTON W/RINGS (STYLE A)(.08)-USE 25 874 02-S - RING SET 24 108 15-S
(Superseded to 25 874 07-S)

$332.99

$

Usually ships in 2-5 days

0

2487428-S

Kohler 24 874 28-S

PISTON W/RINGS (STYLE A)(.25) -USE 25 874 03-S - RING SET 24 108 16-S
(Superseded to 25 874 16-S)

$332.99

$

In Stock, only 1 left!

0

2487429-S

Kohler 24 874 29-S

PISTON W/RINGS (STYLE A)(.50)-USE 25 874 04-S - RING SET 24 108 17-S
(Superseded to 25 874 17-S)

$332.99

$

Usually ships in 2-5 days

0

8

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 14

0

9

Kohler 24 108 14-S

DISC USE PISTON ASSY PER SPEC-RING SET(STD)STYLE A-1.5mm Tp RING THICK - Discontinued

$

$

Not available

2410815-S

Kohler 24 108 15-S

RING SET(.08)STYLE A-1.5mm Tp RING THICK

$113.99

$

In Stock, only 1 left!

0

2410816-S

Kohler 24 108 16-S

RING SET(.25)STYLE A-1.5mm Tp RING THICK

$113.99

$

In Stock, only 2 left!

0

2410817-S

Kohler 24 108 17-S

RING SET(.50)STYLE A-1.5mm Tp RING THICK

$89.99

$

Usually ships in 2-5 days

0

10

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

In Stock, only 2 left!

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242210-S

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, Qty 11

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

11

Kohler 24 012 16-S

KIT, CAMSHAFT

$144.99

$

Usually ships in 2-5 days

0

12

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

In Stock, Qty 19

0

13

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 5

0

14

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$4.49

$

In Stock, only 2 left!

0

15

Kohler 28 030 05-S

BEARING, NEEDLE

$15.99

$

In Stock, only 2 left!

0

16

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 2 left!

0

17

Kohler 24 144 39-S

SHAFT, GOVERNOR CROSS

$52.99

$

Usually ships in 2-5 days

0

18

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, Qty 9

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
