CH730-0052 - Kohler Command PRO Engine, Made for J.P. Carlton, 23.5hp, 17.5kW Air Intake Group 10-24-108 Parts Diagram

Command PRO Engine, Made for J.P. Carlton, 23.5hp, 17.5kW

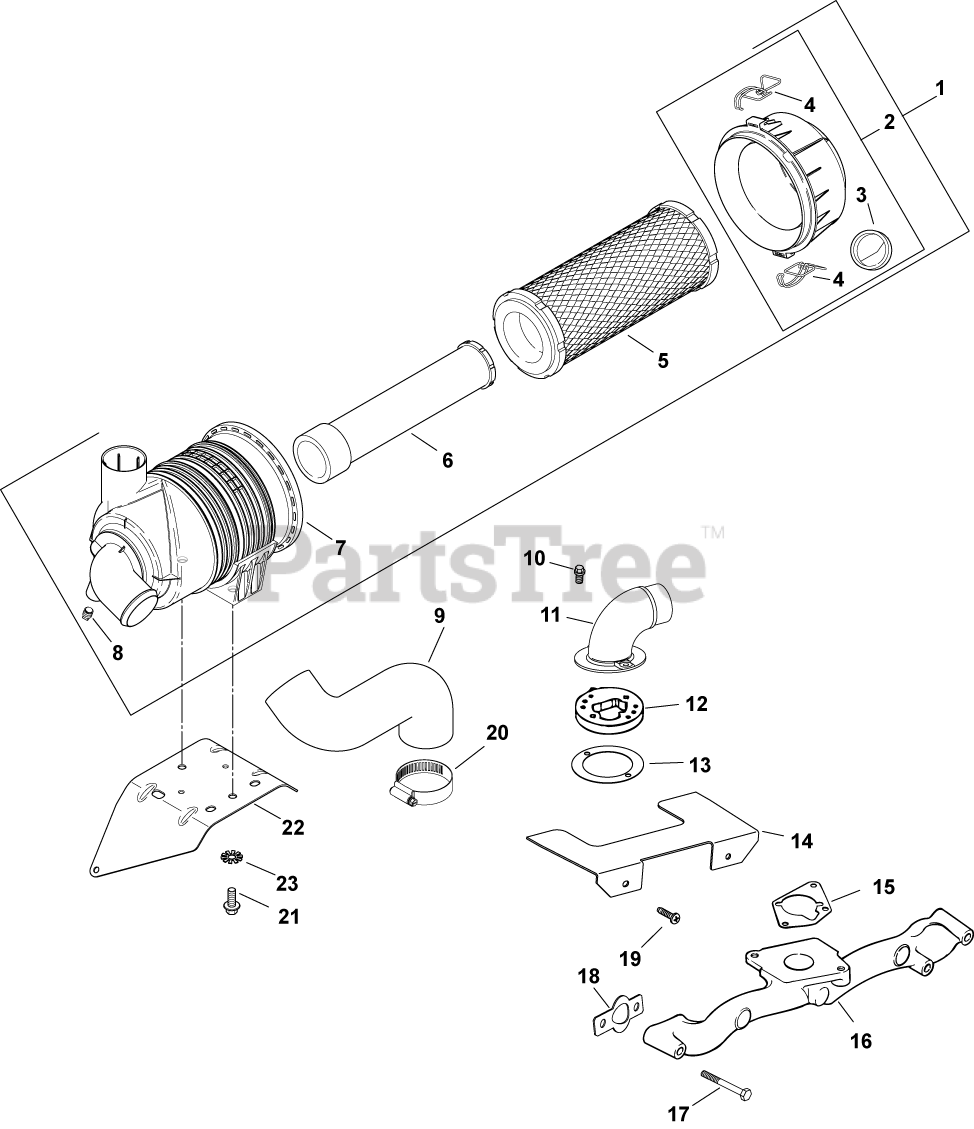

Air Intake Group 10-24-108 Parts Diagram

  • Title

1

Kohler 25 048 10-S

AIR CLEANER, CANISTER

$200.99

$

In Stock, only 3 left!

0

2

Kohler 25 096 06-S

COVER ASSEMBLY, AIR CLEANER

$87.99

$

In Stock, only 3 left!

0

3

Kohler 24 462 07-S

VALVE, DUST EJECTOR

$29.99

$

In Stock, Qty 20+

0

4

Kohler 25 154 05-S

CLIP - USE 62 154 07-S
(Superseded to 62 154 07-S)

$23.99

$

In Stock, Qty 20+

0

5

Kohler 25 083 01-S

ELEMENT, AIR FILTER - PRIMARY

$33.99

$

In Stock, Qty 20+

0

6

Kohler 25 083 04-S

ELEMENT, AIR FILTER - SAFETY

$33.99

$

In Stock, Qty 20+

0

7

Kohler 25 081 03-S

HOUSING, HEAVY DUTY A/C

$198.99

$

In Stock, only 1 left!

0

8

Kohler 25 139 20-S

PLUG, PIPE

$8.99

$

Usually ships in 2-5 days

0

9

Kohler 24 326 32-S

HOSE, AIR CLEANER

$14.99

$

Usually ships in 2-5 days

0

10

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 4 left!

0

11

Kohler 24 029 21-S

ADAPTER, REMOTE AIR CLEANER

$139.99

$

Usually ships in 2-5 days

0

12

Kohler 24 029 66-S

ADAPTER ASSY (CH18 / 20)-USE 24 029 97-S
(Superseded to 24 029 97-S)

$177.99

$

In Stock, only 1 left!

0

13

Kohler 24 041 34-S

GASKET, ADAPTER

$3.49

$

Usually ships in 2-5 days

0

14

Kohler 24 314 29-S

SHIELD, DEBRIS

$20.99

$

Usually ships in 2-5 days

0

15

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

16

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$325.99

$

Usually ships in 2-5 days

0

17

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 15

0

18

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 20+

0

19

Kohler 24 086 06-S

SCREW, PHL HD 11-16X3/4"

$2.49

$

In Stock, only 1 left!

0

20

Kohler 25 237 07-S

CLAMP, HOSE-USE 25 237 21-S
(Superseded to 25 237 21-S)

$7.99

$

In Stock, only 2 left!

0

21

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 24 126 146-S

BRACKET, AIR CLEANER

$20.99

$

In Stock, only 2 left!

0

23

Kohler X-22-16-S

WASHER,INT EXT TOOTH LOCK 5/16"

$3.99

$

Usually ships in 2-5 days

0

2545404-S

Kohler 25 454 04-S

TIE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0
