CH730-0052 - Kohler Command PRO Engine, Made for J.P. Carlton, 23.5hp, 17.5kW Crankcase Group 2-24-163 Parts Diagram

Command PRO Engine, Made for J.P. Carlton, 23.5hp, 17.5kW

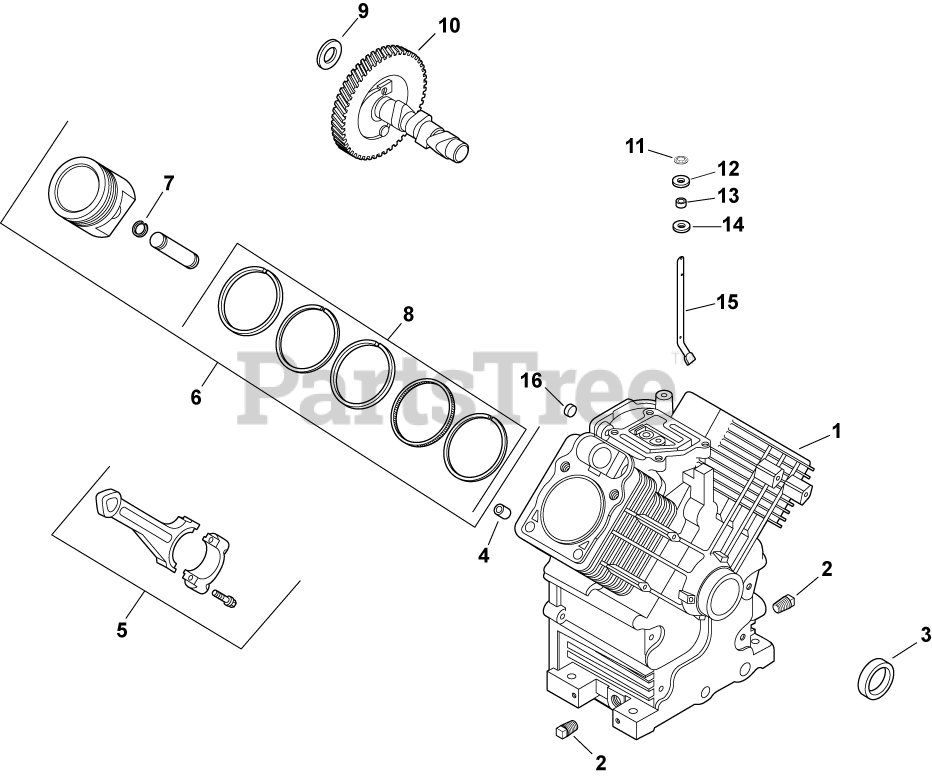

Crankcase Group 2-24-163 Parts Diagram

  • Title

1

Crankcase

Note: (Use Miniblock 24 782 32)

$

$

Not available

2

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, Qty 18

0

3

Kohler 24 032 01-S

SEAL, OIL FRONT-USE 24 032 19-S
(Superseded to 24 032 19-S)

$9.49

$

In Stock, Qty 20+

0

4

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 7

0

5

Kohler 24 067 24-S

ROD, CONNECTING ASSEMBLY-USE 24 067 28-S
(Superseded to 25 067 04-S)

$83.99

$

In Stock, Qty 20+

0

2406725-S

Kohler 24 067 25-S

ROD ASSY,CONNECT .25 U/S-USE 24 067 29-S
(Superseded to 25 067 05-S)

$83.99

$

In Stock, only 1 left!

0

6

Kohler 24 874 08-S

PISTON W/RINGS (STYLE A)(STD) USE 25 874 01-S
(Superseded to 25 874 13-S)

$301.99

$

In Stock, Qty 6

0

2487416-S

Kohler 24 874 16-S

KIT, PISTON W/RING SET-USE 24 874 27-S
(Superseded to 25 874 07-S)

$350.99

$

Usually ships in 2-5 days

0

2487420-S

Kohler 24 874 20-S

PISTON W/RING SET-USE 25 874 03-S
(Superseded to 25 874 16-S)

$282.99

$

In Stock, only 1 left!

0

2487421-S

Kohler 24 874 21-S

PISTON W/RING SET-USE 25 874 04-S
(Superseded to 25 874 17-S)

$280.99

$

Usually ships in 2-5 days

0

7

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 14

0

8

Kohler 24 108 14-S

DISC USE PISTON ASSY PER SPEC-RING SET(STD)STYLE A-1.5mm Tp RING THICK - Discontinued

$

$

Not available

2410805-S

Kohler 24 108 05-S

RING SET-USE 24 108 15-S
(Superseded to 24 108 15-S)

$113.99

$

In Stock, only 1 left!

0

2410806-S

Kohler 24 108 06-S

RINGS, .25 O/S-USE 24 108 16-S
(Superseded to 24 108 16-S)

$113.99

$

In Stock, only 2 left!

0

2410807-S

Kohler 24 108 07-S

RINGS, .50 O/S-USE 24 108 17-S
(Superseded to 24 108 17-S)

$

$

Not available

9

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

1242207-S

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

In Stock, only 2 left!

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242210-S

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, Qty 11

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 24 012 16-S

KIT, CAMSHAFT

$

$

Not available

11

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

In Stock, Qty 19

0

12

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 8

0

13

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$4.49

$

In Stock, Qty 10

0

14

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 1 left!

0

15

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$58.99

$

Usually ships in 2-5 days

0

16

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, Qty 10

0
