CH730-0112 - Kohler Command PRO Engine, Made for Cushman, 23.5hp, 17.5kW Ignition/Electrical 5-24-658 Parts Diagram

Command PRO Engine, Made for Cushman, 23.5hp, 17.5kW

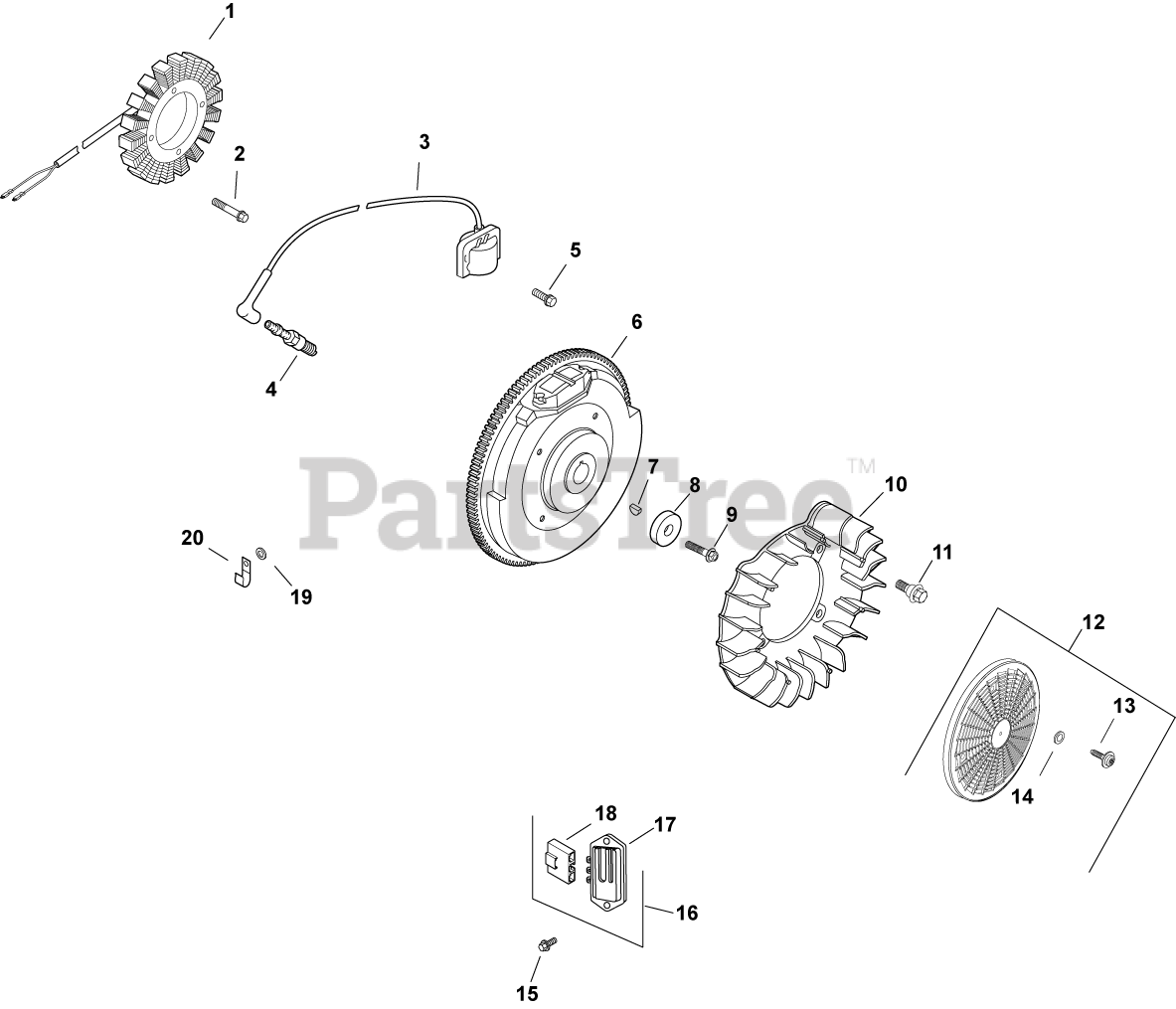

Ignition/Electrical 5-24-658 Parts Diagram

  • Title

1

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

Note: (includes 25 452 01-S

$194.99

$

In Stock, only 1 left!

0

2

Kohler M-545030-S

SCREW, THD FROM M5X0.8X30

$

$

Not available

3

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$

$

Not available

4

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

5

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 19

0

6

Kohler 24 025 48-S

FLYWHEEL, PAINTED-USE 24 025 59-S
(Superseded to 24 025 59-S)

$

$

Not available

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 5

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$6.49

$

In Stock, only 1 left!

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.49

$

In Stock, only 1 left!

0

10

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$45.99

$

In Stock, Qty 7

0

11

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 54 755 15-S

KIT, GRASS SCREEN

Note: (includes 13)

$41.99

$

Usually ships in 2-5 days

0

13

Kohler 25 086 117-S

SCREW, FLG SEMS M4X.7X25

$2.49

$

Usually ships in 2-5 days

0

14

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.99

$

In Stock, only 2 left!

0

15

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, Qty 5

0

16

Kohler 24 755 144-S

KIT, FULL WAVE CONVERSION

Note: (includes 17,18 & 25 452 01-S [qty 3])

$165.99

$

Usually ships in 2-5 days

0

17

Kohler 25 403 05-S

REG/RECTIFIER (20/25 AMP)-USE 25 403 20-
(Superseded to 25 403 39-S)

$85.99

$

In Stock, Qty 20+

0

18

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

19

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 4 left!

0

20

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

In Stock, only 1 left!

0

2417694-S

Kohler 24 176 94-S

KIT, HARNESS ASSEMBLY

Note: NOT ILLUSTRATED

$93.99

$

Usually ships in 2-5 days

0

2551838-S

Kohler 25 518 38-S

LEAD

Note: NOT ILLUSTRATED

$

$

Not available

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

Usually ships in 2-5 days

0
