CH730-0123 - Kohler Command PRO Engine, Made for Gen Mobile, 23.5hp, 17.5kW Ignition/Charging Group 5-24-967 CH18-750 Parts Diagram

Command PRO Engine, Made for Gen Mobile, 23.5hp, 17.5kW

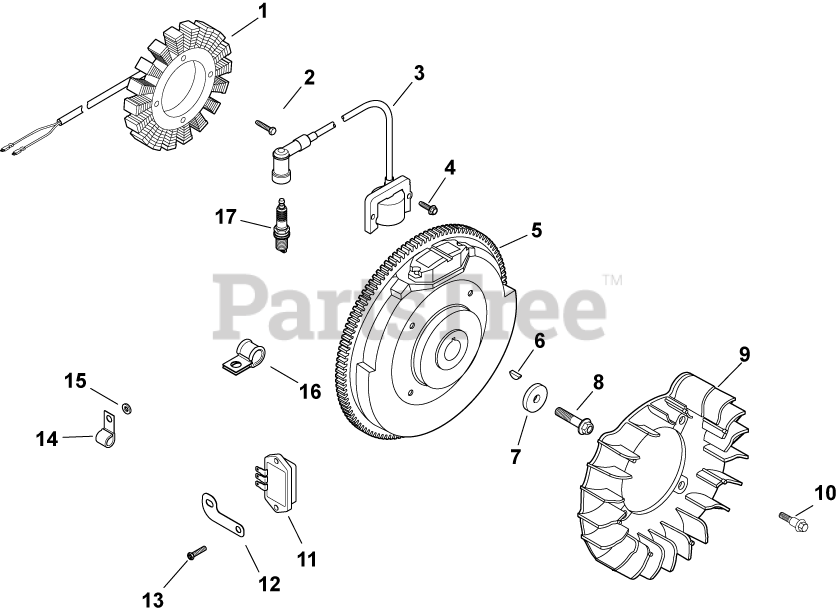

Ignition/Charging Group 5-24-967 CH18-750 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 10

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$3.49

$

In Stock, Qty 12

0

3

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$93.99

$

Usually ships in 2-5 days

0

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$3.49

$

In Stock, Qty 20+

0

5

Kohler 24 025 01-S

USE 24 025 04-S FLYWHEEL
(Superseded to 24 025 55-S)

$310.99

$

Usually ships in 2-5 days

0

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, Qty 5

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

In Stock, Qty 8

0

9

Kohler 24 157 16-S

FAN USE 24 157 11-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, Qty 5

0

10

Kohler 25 086 47-S

BOLT, SHOULDER

$3.49

$

In Stock, Qty 20+

0

11

Kohler 41 403 10-S

REGULATOR/RECTIFIER
(Superseded to 25 403 37-S)

$105.99

$

Usually ships in 2-5 days

0

12

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

$4.99

$

In Stock, only 2 left!

0

13

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.99

$

In Stock, only 2 left!

0

14

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

15

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

17

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.99

$

Usually ships in 2-6 days

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0

24176150-S

Kohler 24 176 150-S

HARNESS, WIRING ASSEMBLY

Note: NOT ILLUSTRATED

$56.99

$

Usually ships in 2-5 days

0

2417641-S

Kohler 24 176 41-S

LEAD, DUPLEX

Note: NOT ILLUSTRATED

$7.99

$

In Stock, only 2 left!

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRATED

$17.99

$

In Stock, only 1 left!

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0
