CH730-0172 - Kohler Command PRO Engine, Made for Central Power, 23.5hp, 17.5kW Ignition/Electrical 5-24-1015 Parts Diagram

Command PRO Engine, Made for Central Power, 23.5hp, 17.5kW

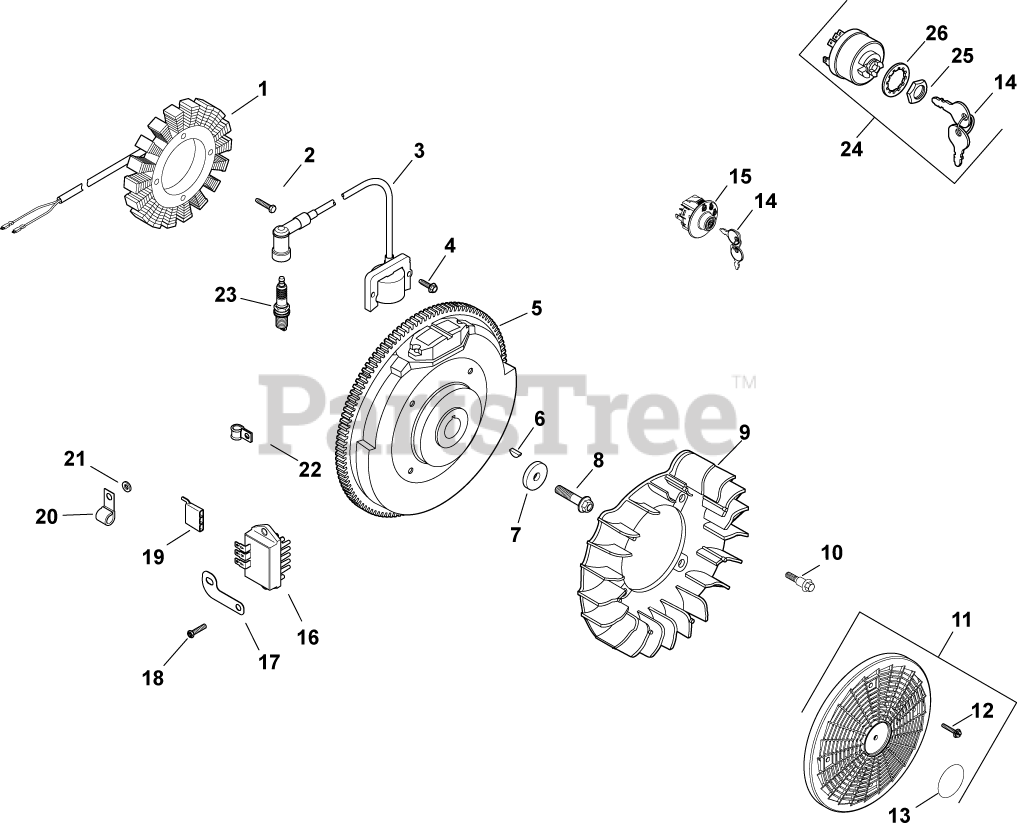

Ignition/Electrical 5-24-1015 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, only 4 left!

0

2

Kohler M-545030-S

SCREW, THD FROM M5X0.8X30

$

$

Not available

3

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$93.99

$

Usually ships in 2-5 days

0

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.99

$

In Stock, Qty 20+

0

5

Kohler 24 025 59-S

FLYWHEEL ASSEMBLY

$372.99

$

Usually ships in 2-5 days

0

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$50.99

$

Usually ships in 2-5 days

0

10

Kohler 25 086 47-S

BOLT, SHOULDER

$2.99

$

In Stock, Qty 20+

0

11

Kohler 54 755 15-S

KIT, GRASS SCREEN

Note: (INCLUDES 12, 13)

$41.99

$

In Stock, only 2 left!

0

12

Kohler 25 086 117-S

SCREW, FLG SEMS M4X.7X25

$3.49

$

In Stock, only 4 left!

0

13

Kohler 24 113 18-S

DECAL, GRASS SCREEN USE 24 113 499-S
(Superseded to 24 113 499-S)

$4.99

$

Usually ships in 2-5 days

0

14

Kohler 48 340 01-S

KEY, SET OF 2
(Superseded to 48 340 01-S1)

$4.99

$

In Stock, only 2 left!

0

15

Kohler 25 099 30-S

KIT, KEY SWITCH (SNAP-IN)

$36.99

$

Usually ships in 2-5 days

0

16

Kohler 25 403 21-S

REGULATOR, RECTIFIER USE 25 403 32-S
(Superseded to 25 403 48-S)

$82.99

$

In Stock, Qty 9

0

17

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

$5.99

$

In Stock, only 2 left!

0

18

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.99

$

In Stock, only 2 left!

0

19

Kohler 25 155 41-S

CONNECTOR

$29.99

$

In Stock, only 2 left!

0

20

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

21

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 2 left!

0

22

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

23

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

24

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: (Before S/N 3816800011)(includes 14, 25, 26)

$63.99

$

In Stock, only 2 left!

0

25

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

Usually ships in 2-5 days

0

26

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

24176142-S

Kohler 24 176 142-S

HARNESS, WIRING ASSEMBLY

Note: NOT ILLUSTRATED

$54.99

$

Usually ships in 2-5 days

0

2417641-S

Kohler 24 176 41-S

LEAD, DUPLEX

Note: NOT ILLUSTRATED

$7.99

$

In Stock, only 2 left!

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRATED

$16.99

$

In Stock, only 1 left!

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

$8.49

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
