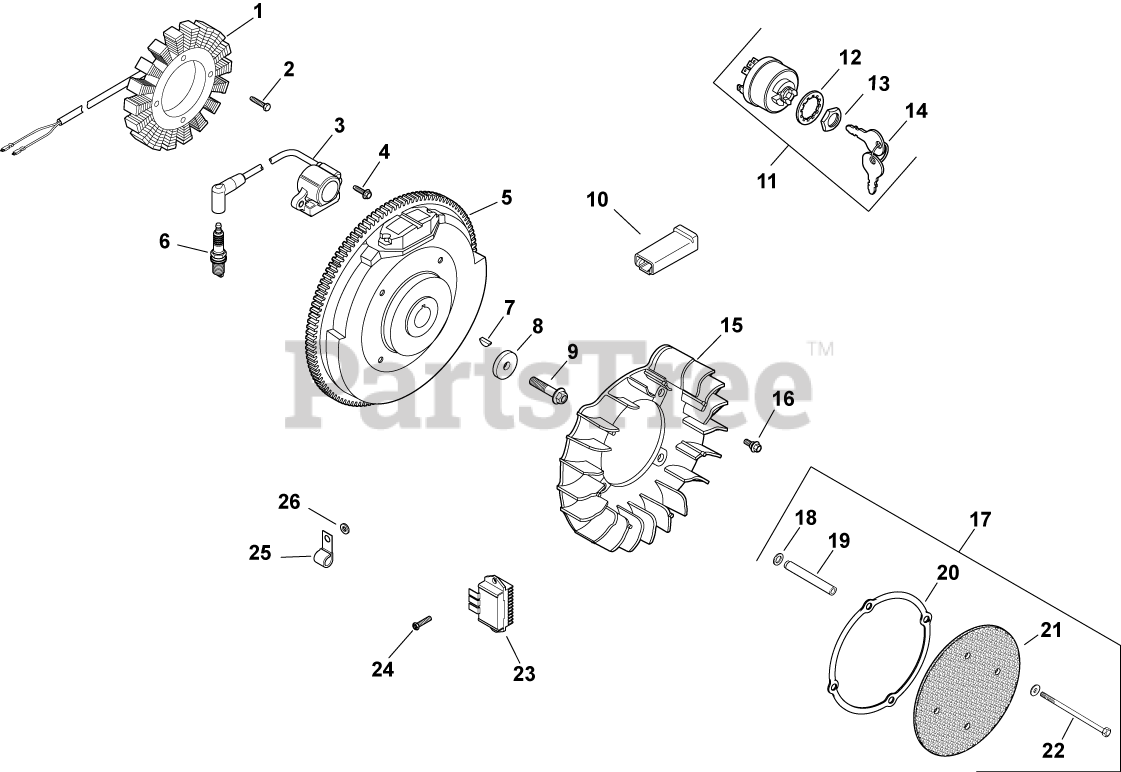

CH730-3255 - Kohler Command PRO Engine, Made for Red Roo Mowers, 23.5hp, 17.5kW Ignition/Electrical 5-24-669 Parts Diagram

Command PRO Engine, Made for Red Roo Mowers, 23.5hp, 17.5kW

Ignition/Electrical 5-24-669 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 16

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$3.49

$

In Stock, Qty 8

0

3

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$93.99

$

Usually ships in 2-5 days

0

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$3.49

$

In Stock, Qty 20+

0

5

Kohler 24 025 55-S

FLYWHEEL

$310.99

$

Usually ships in 2-5 days

0

6

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.99

$

Usually ships in 2-6 days

0

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

9

Kohler 24 086 36-S

SCREW, FLG M10X1.5X85 USE 62 086 08-S
(Superseded to 62 086 08-S)

$5.99

$

Usually ships in 2-5 days

0

10

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

11

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: (includes 12-14)

$63.99

$

In Stock, only 2 left!

0

12

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

13

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

Usually ships in 2-5 days

0

14

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.99

$

In Stock, only 2 left!

0

15

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, only 2 left!

0

16

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 24 755 79-S

KIT, CHOPPER SCREEN

Note: (includes 13-18)

$165.99

$

Usually ships in 2-5 days

0

18

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

In Stock, Qty 20+

0

19

Kohler 24 112 14-S

SPACER

$23.99

$

In Stock, Qty 11

0

20

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$6.49

$

In Stock, Qty 5

0

21

Kohler 24 162 23-S

SCREEN, GRASS-USE 24 162 39-S
(Superseded to 24 162 39-S)

$24.99

$

Usually ships in 2-5 days

0

22

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, only 3 left!

0

23

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$105.99

$

Usually ships in 2-5 days

0

24

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.99

$

In Stock, only 2 left!

0

25

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

26

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

Usually ships in 2-5 days

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

In Stock, only 2 left!

0

24176112-S

Kohler 24 176 112-S

HARNESS, WIRING-USE 24 176 150-S
(Superseded to 24 176 150-S)

Note: NOT ILLUSTRATED

$56.99

$

Usually ships in 2-5 days

0

2417641-S

Kohler 24 176 41-S

LEAD, DUPLEX

Note: NOT ILLUSTRATED

$7.99

$

In Stock, only 2 left!

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRATED

$17.99

$

In Stock, only 1 left!

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2451834-S

Kohler 24 518 34-S

LEAD

Note: NOT ILLUSTRATED

$

$

Not available
