CH730-3350 - Kohler Command PRO Engine, Made for Central Power, 23.5hp, 17.5kW 08 Fuel System Parts Diagram

Command PRO Engine, Made for Central Power, 23.5hp, 17.5kW

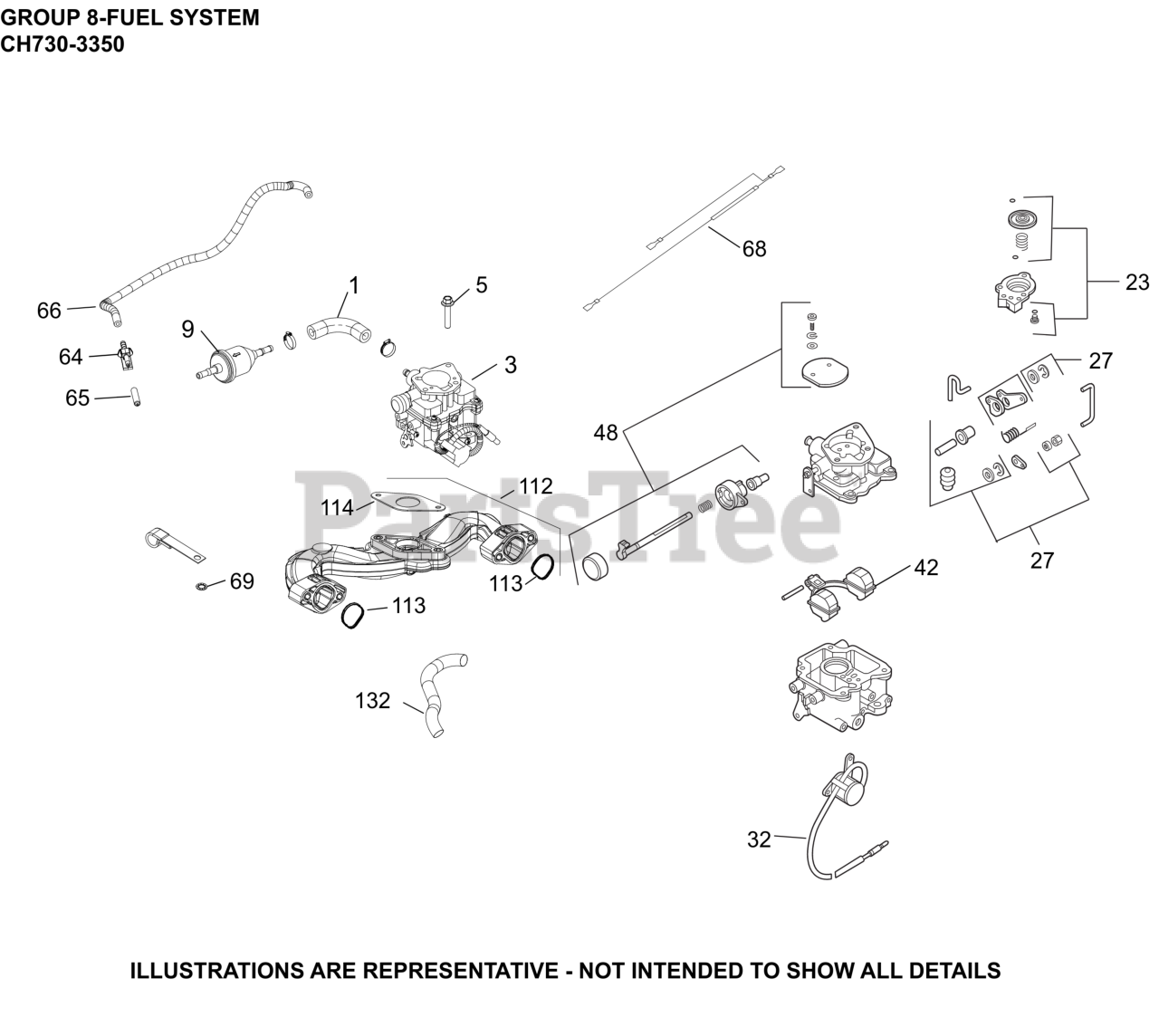

08 Fuel System Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 9

0

3

Kohler 24 853 306-s

KIT, CARBURETOR COMPLETE

$

$

Currently unavailable

5

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.99

$

In Stock, only 2 left!

0

9

Kohler 24 050 13-S

FILTER, FUEL

$17.99

$

In Stock, Qty 20+

0

23

Kohler 24 757 08-S

KIT, REPAIR ACC PUMP

$97.99

$

In Stock, only 1 left!

0

27

Kohler 24 757 09-S

KIT, REPAIR-ACC PUMP SEAL

$125.99

$

Usually ships in 2-5 days

0

32

Kohler 24 757 01-S

KIT, SOLENOID

$261.99

$

In Stock, only 2 left!

0

42

Kohler 24 757 02-S

KIT, REPAIR FLOAT

$154.99

$

Usually ships in 2-5 days

0

48

Kohler 24 757 07-S

KIT, REPAIR CHOKE

$109.99

$

In Stock, only 1 left!

0

64

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 2 left!

0

65

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

66

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"- (#24326143S)
(Superseded to 24 326 143-S)

$5.49

$

In Stock, only 3 left!

0

68

Kohler 24 518 24-S

LEAD, GROUND

$2.49

$

In Stock, only 1 left!

0

69

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

112

Kohler 24 164 275-S

INTAKE MANIFOLD W/GASKETS

$70.99

$

In Stock, only 1 left!

0

113

Kohler 24 153 37-S

O-RING, INTAKE PORT

$3.99

$

In Stock, only 2 left!

0

114

Kohler 24 041 92-S

GASKET, CARBURETOR (PIM, CH)

$5.99

$

In Stock, only 3 left!

0

132

Kohler 25 431 14-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

$10.99

$

In Stock, only 2 left!

0

NI

Kohler 24 755 130-S

KIT, HIGH ALT (8,000+ FT)

$65.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 755 309-S

KIT, HIGH ALT (4000-8000 FT)

$65.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

$

$

Not available
