CH730-3352 - Kohler Command PRO Engine, Made for Lincoln, 23.5hp, 17.5kW 08 Fuel System Parts Diagram

Command PRO Engine, Made for Lincoln, 23.5hp, 17.5kW

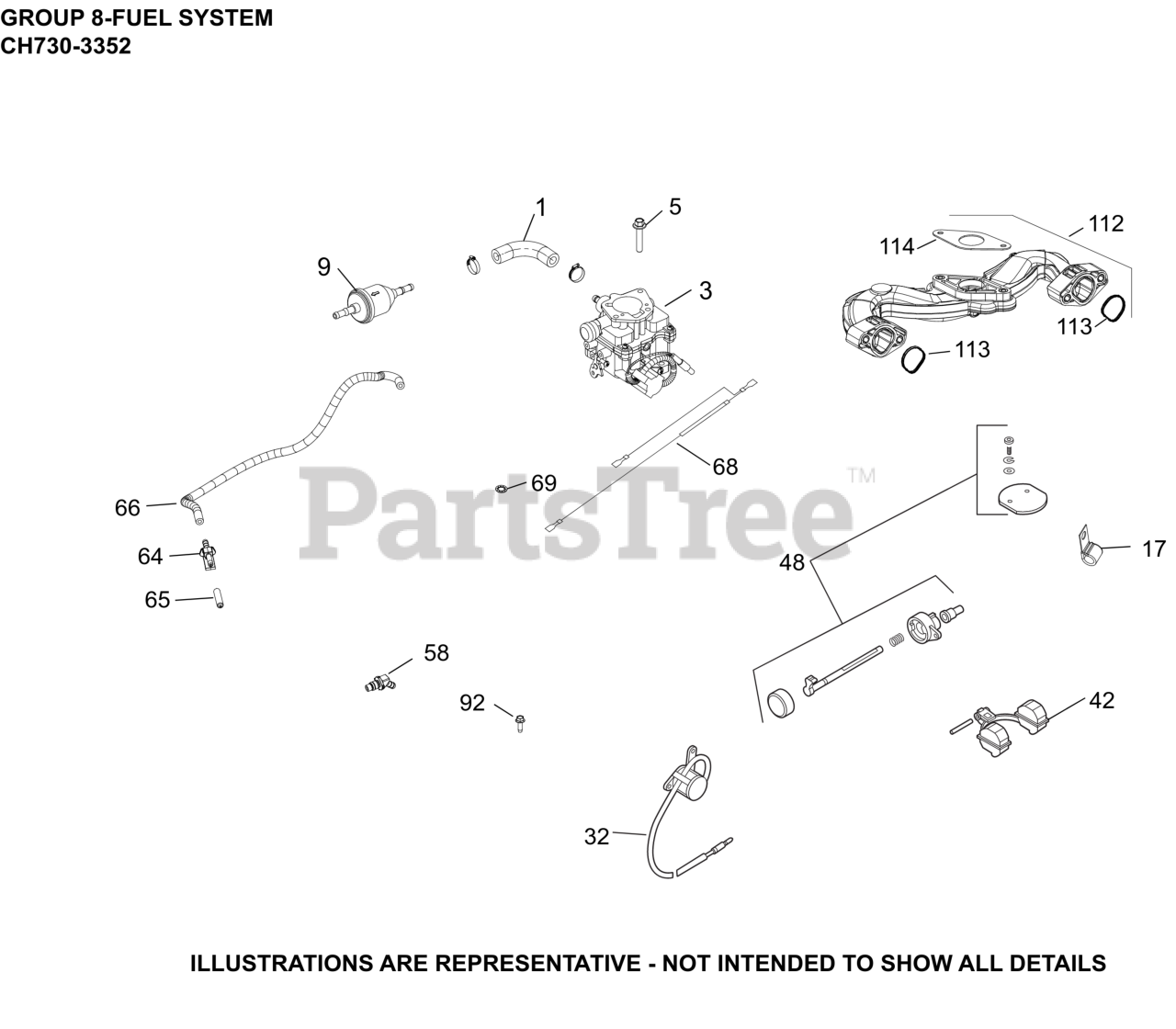

08 Fuel System Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 11

0

3

Kohler 24 853 305-S

KIT, CARBURETOR COMPLETE

$347.99

$

Usually ships in 2-5 days

0

5

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$3.49

$

In Stock, only 2 left!

0

9

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

17

Kohler 24 154 10-S

CLIP, CABLE

$2.99

$

In Stock, only 2 left!

0

32

Kohler 24 757 01-S

KIT, SOLENOID

$281.99

$

In Stock, only 2 left!

0

42

Kohler 24 757 02-S

KIT, REPAIR FLOAT

$166.99

$

Usually ships in 2-5 days

0

48

Kohler 24 757 07-S

KIT, REPAIR CHOKE

$116.99

$

In Stock, only 2 left!

0

58

Kohler 25 294 13-S

KIT, 45 DEG. FITTING

$6.99

$

Usually ships in 2-5 days

0

64

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 1 left!

0

65

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0

66

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"- (#24326143S)
(Superseded to 24 326 143-S)

$5.49

$

In Stock, only 3 left!

0

68

Kohler 24 518 24-S

LEAD, GROUND

$2.49

$

In Stock, only 1 left!

0

69

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 4 left!

0

92

Kohler 25 086 398-S

SCREW, THREAD FORMING

$4.49

$

In Stock, only 3 left!

0

112

Kohler 24 164 275-S

INTAKE MANIFOLD W/GASKETS

$89.99

$

In Stock, only 1 left!

0

113

Kohler 24 153 37-S

O-RING, INTAKE PORT

$3.99

$

In Stock, only 2 left!

0

114

Kohler 24 041 92-S

GASKET, CARBURETOR (PIM, CH)

$7.49

$

In Stock, Qty 5

0

NI

Kohler 24 755 125-S

KIT, HIGH ALT (4000-8000 FT)

$67.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 755 201-S

KIT, HIGH ALT (8,000+ FT)

$72.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

$

$

Not available
