CH740-0055 - Kohler Command PRO Engine, Made for Little Wonder, 25hp, 725cc Fuel System Group 8-24-723 Parts Diagram

Command PRO Engine, Made for Little Wonder, 25hp, 725cc

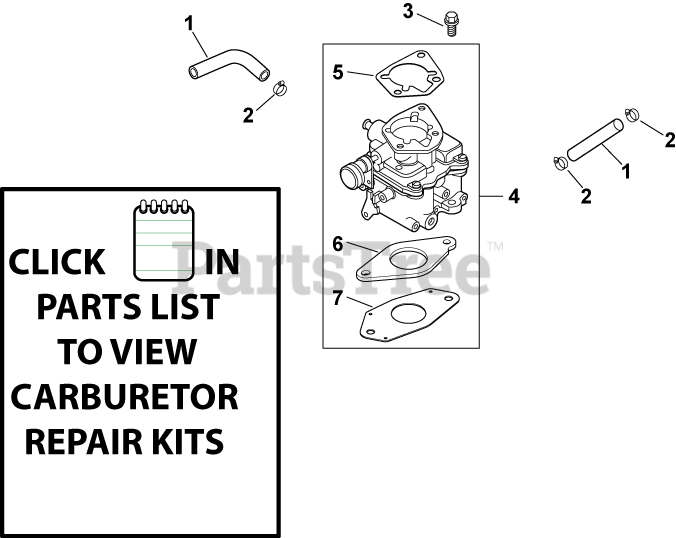

Fuel System Group 8-24-723 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 9

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 6

0

3

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

4

Kohler 24 853 93-S

KIT, CARBURETOR W/GASKETS
(Superseded to 24 853 313-S)

$285.99

$

In Stock, only 4 left!

0

5

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 9

0

6

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 15

0

7

Kohler 24 041 53-S

GASKET, CARBURETOR

$3.49

$

In Stock, Qty 12

0
