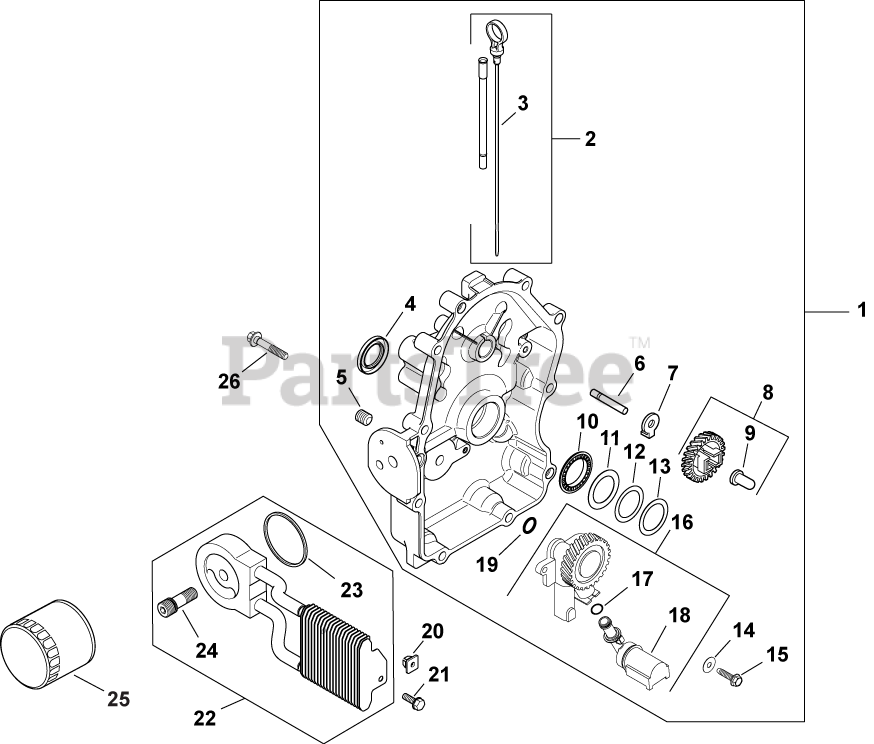

CH740-0055 - Kohler Command PRO Engine, Made for Little Wonder, 25hp, 725cc Oil Pan/Lubrication 3-24-594 Parts Diagram

Command PRO Engine, Made for Little Wonder, 25hp, 725cc

Oil Pan/Lubrication 3-24-594 Parts Diagram

  • Title

1

Kohler 24 755 39-S

KIT, CLOSURE PLATE USE 24 009 230-S
(Superseded to 24 009 230-S)

Note: (includes 2-18)

$538.99

$

Usually ships in 2-5 days

0

2

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

Note: (includes 3)

$43.99

$

In Stock, only 2 left!

0

3

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, only 3 left!

0

4

Kohler 25 032 06-S

SEAL, OIL

$12.99

$

In Stock, Qty 20+

0

5

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

6

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, only 2 left!

0

7

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, only 2 left!

0

8

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: (includes 9)

$68.99

$

In Stock, only 2 left!

0

9

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, only 4 left!

0

10

Kohler 24 030 08-S

BEARING, THRUST

$81.99

$

Usually ships in 2-5 days

0

11

Kohler 52 114 04-S

WASHER, THRUST (1MM)

$23.99

$

Usually ships in 2-5 days

0

12

Kohler 24 422 04-S

SHIM, THRUST (BLUE .5MM)

$

$

Not available

13

Kohler 24 422 03-S

SHIM, THRUST (GREEN .875MM) - DISCONTINUED

$

$

Not available

14

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.99

$

In Stock, Qty 14

0

15

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, only 2 left!

0

16

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: (includes 17, 18)

$

$

Not available

17

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 13

0

18

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 2 left!

0

19

Kohler 24 153 08-S

O-RING

$7.99

$

In Stock, Qty 7

0

20

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 4 left!

0

21

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 54 755 21-S

KIT, OIL COOLER

Note: (includes 23, 24)

$257.99

$

Usually ships in 2-5 days

0

23

Kohler 24 153 21-S

O-RING, OIL COOLER

$6.49

$

In Stock, Qty 10

0

24

Kohler 24 136 05-S

NIPPLE, OIL FILTER
(Superseded to 24 136 10-S)

$13.99

$

Usually ships in 2-5 days

0

25

Kohler 12 050 01-S

OIL FILTER

$18.99

$

In Stock, Qty 20+

0

26

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.99

$

In Stock, Qty 20+

0
