CH740-0061 - Kohler Command PRO Engine, Made for Vermeer, 25hp, 725cc Ignition/Electrical 5-24-775 CH18-750 Parts Diagram

Command PRO Engine, Made for Vermeer, 25hp, 725cc

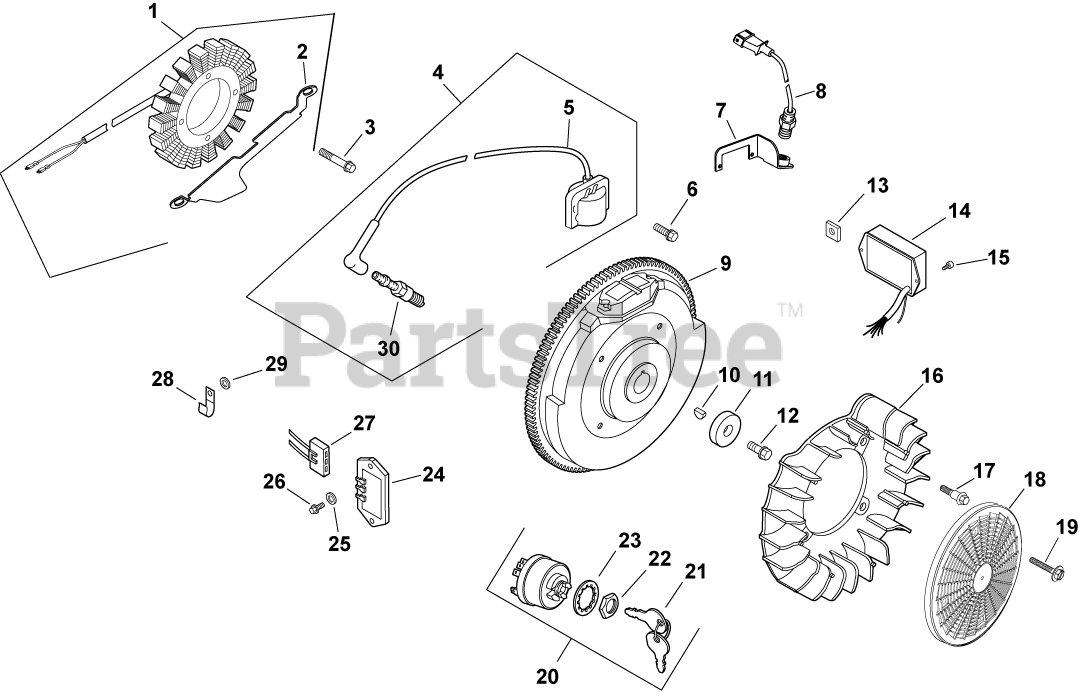

Ignition/Electrical 5-24-775 CH18-750 Parts Diagram

  • Title

1

Kohler 54 755 09-S

STATOR KIT - USE 237878-S
(Superseded to 237878-S)

Note: (includes 2)

$149.99

$

In Stock, Qty 20+

0

2

Kohler 24 126 139-S

BRACKET, STATOR WIRE

$15.99

$

Usually ships in 2-5 days

0

3

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$3.49

$

In Stock, Qty 12

0

4

Kohler 24 707 04-S

IGNITION MODULE KIT-USE 25 707 01-S
(Superseded to 25 707 01-S)

$70.99

$

In Stock, only 2 left!

0

5

Kohler 24 584 35-S

MODULE, IGNITION USE 24 707 05-S
(Superseded to 24 707 05-S)

$193.99

$

In Stock, only 2 left!

0

6

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$3.49

$

In Stock, Qty 20+

0

7

Kohler 24 126 91-S

BRACKET, SPEED SENSOR-USE 24 126 171-S
(Superseded to 24 418 14-S)

$250.99

$

Usually ships in 2-5 days

0

8

Kohler 24 418 10-S

SENSOR, SPEED-USE 24 418 14-S
(Superseded to 24 418 14-S)

$250.99

$

Usually ships in 2-5 days

0

9

Kohler 24 025 15-S

FLYWHEEL ASSEMBLY-USE 24 025 58-S
(Superseded to 24 025 58-S)

$

$

Not available

10

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

11

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, Qty 10

0

12

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

In Stock, Qty 18

0

13

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 24 584 30-S

MODULE, SPEED ADVANCE -USE 24 755 172-S
(Superseded to 24 755 172-S)

$

$

Not available

15

Kohler 24 086 41-S

SCREW, PHL HD #11-16X1/2"

$2.99

$

In Stock, only 1 left!

0

16

Kohler 24 157 07-S

FAN (WITH HOLE)-USE 24 157 16-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, only 4 left!

0

17

Kohler 25 086 47-S

BOLT, SHOULDER

$3.49

$

In Stock, Qty 20+

0

18

Kohler 24 162 34-S

SCREEN, GRASS-USE 24 162 45-S
(Superseded to 24 162 45-S)

$21.99

$

Usually ships in 2-5 days

0

19

Kohler 25 086 117-S

SCREW, FLG SEMS M4X.7X25

$2.99

$

In Stock, Qty 6

0

20

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: (includes 21-23)

$63.99

$

In Stock, only 2 left!

0

21

Kohler 48 340 01-S

KEY, SET OF 2
(Superseded to 48 340 01-S1)

$4.99

$

In Stock, only 1 left!

0

22

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 2 left!

0

23

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

24

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

25

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

Usually ships in 2-5 days

0

26

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

27

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$11.99

$

In Stock, Qty 18

0

28

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 2 left!

0

29

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

30

Kohler 28 132 02-S

SPARK PLUG - DISCONTINUED

Note: (Before S/N 3612000011)

$13.99

$

In Stock, only 1 left!

0

30

Kohler 25 132 14-S

SPARK PLUG, RFI

Note: (After S/N 3612000001)

$14.99

$

Usually ships in 2-5 days

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2546807-S

Kohler 25 468 07-S

WASHER, FLAT 7/32"

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

24176112-S

Kohler 24 176 112-S

HARNESS, WIRING-USE 24 176 150-S
(Superseded to 24 176 150-S)

Note: NOT ILLUSTRATED

$61.99

$

Usually ships in 2-5 days

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRATED

$18.99

$

In Stock, only 1 left!

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

24113126-S

Kohler 24 113 126-S

DECAL, KEY SWITCH

Note: NOT ILLUSTRATED

$2.99

$

Usually ships in 2-5 days

0

2411324-S

Kohler 24 113 24-S

DECAL, 22 HP USE 24 113 138-S
(Superseded to 24 113 138-S)

Note: NOT ILLUSTRATED

$

$

Not available
