CH740-0069 - Kohler Command PRO Engine, Made for Mertz, 25hp, 725cc Air Intake/Filtration 10-24-219 Parts Diagram

Command PRO Engine, Made for Mertz, 25hp, 725cc

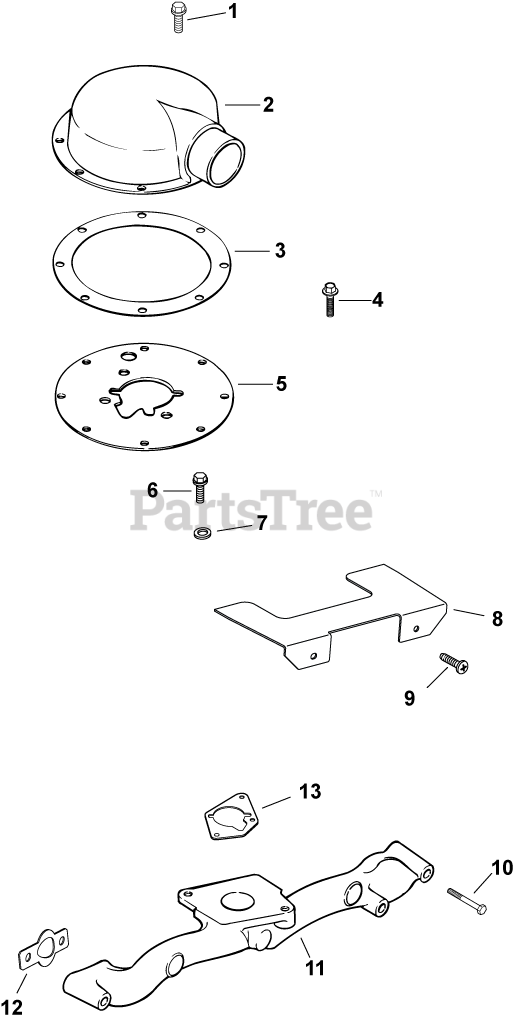

Air Intake/Filtration 10-24-219 Parts Diagram

  • Title

1

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 20+

0

2

Kohler 24 029 72-S

KIT, HDAC IGLOO ADAPTER

$163.99

$

Usually ships in 2-5 days

0

3

Kohler 24 041 38-S

GASKET, AIR CLEANER ADAPTER

$10.99

$

Usually ships in 2-5 days

0

4

Kohler M-551016-S

SCREW, HVY FLG M5X.8X16

$2.49

$

In Stock, only 1 left!

0

5

Kohler 24 029 35-S

PLATE, ADAPTER-USE 24 029 83-S
(Superseded to 24 029 79-S)

$55.99

$

Usually ships in 2-5 days

0

6

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

7

Kohler X-25-12-S

WASHER

$3.49

$

In Stock, only 2 left!

0

8

Kohler 24 314 25-S

SHIELD, DEBRIS

$44.99

$

Usually ships in 2-5 days

0

9

Kohler 24 086 06-S

SCREW, PHL HD 11-16X3/4"

$2.49

$

In Stock, Qty 7

0

10

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$1.99

$

In Stock, Qty 20+

0

11

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$229.99

$

Usually ships in 2-5 days

0

12

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 5

0

13

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 9

0
