CH740-3136 - Kohler Command PRO Engine, Made for Toro, 25hp, 725cc Fuel System 8-24-786 Parts Diagram

Command PRO Engine, Made for Toro, 25hp, 725cc

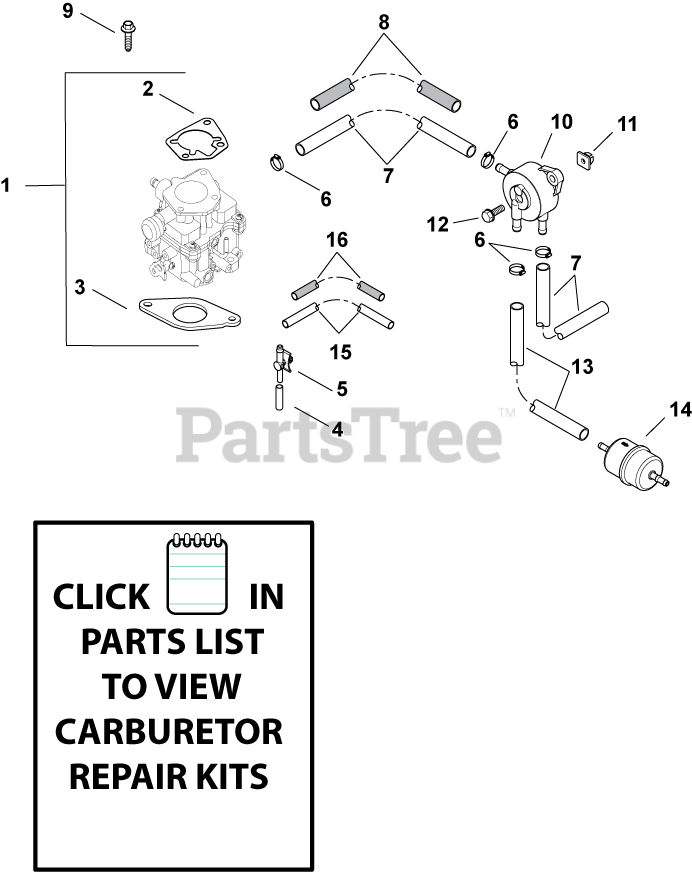

Fuel System 8-24-786 Parts Diagram

  • Title

1

Kohler 24 853 163-S

KIT, CARBURETOR (TIER III)
(Superseded to 24 853 302-S)

Note: (includes 2, 3)

$403.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 9

0

3

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 12

0

4

Kohler 25 173 23-S

CAP, EVAP SYSTEM 3/16"-USE 25 173 33-S
(Superseded to 25 173 33-S)

$2.49

$

In Stock, only 1 left!

0

5

Kohler 25 155 40-S

CONNECTOR, TIER III ORIFICE-USE 25 155 5
(Superseded to 25 155 51-S)

$13.99

$

In Stock, only 1 left!

0

6

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 6

0

7

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 5

0

8

Kohler 20 431 01-S

SLEEVE, ANTI ABRASION -USE 25 431 12-S
(Superseded to 20 431 02-S)

$10.99

$

In Stock, only 1 left!

0

9

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$2.49

$

Usually ships in 2-5 days

0

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 20+

0

11

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 3 left!

0

12

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

13

Kohler 24 353 02-S

LINE, FLEXIBLE FUEL 15 1/2"

$8.99

$

In Stock, only 1 left!

0

14

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

15

Kohler 25 326 28-S

HOSE, EVAPORATIVE

$4.49

$

In Stock, Qty 6

0

16

Kohler 25 431 02-S

SLEEVE, ANTI ABRASION

$20.99

$

Usually ships in 2-5 days

0

25086158-S

Kohler 25 086 158-S

SCREW, FLNG THD FRM M6X1.0X10 USE 25 086 406-S
(Superseded to 25 086 406-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

4715401-S

Kohler 47 154 01-S

CLIP, CABLE

Note: NOT ILLUSTRATED

$4.99

$

In Stock, Qty 7

0
