CH740-3137 - Kohler Command PRO Engine, Made for Toro, 25hp, 725cc Crankcase 2-24-358 CH18-750 Parts Diagram

Command PRO Engine, Made for Toro, 25hp, 725cc

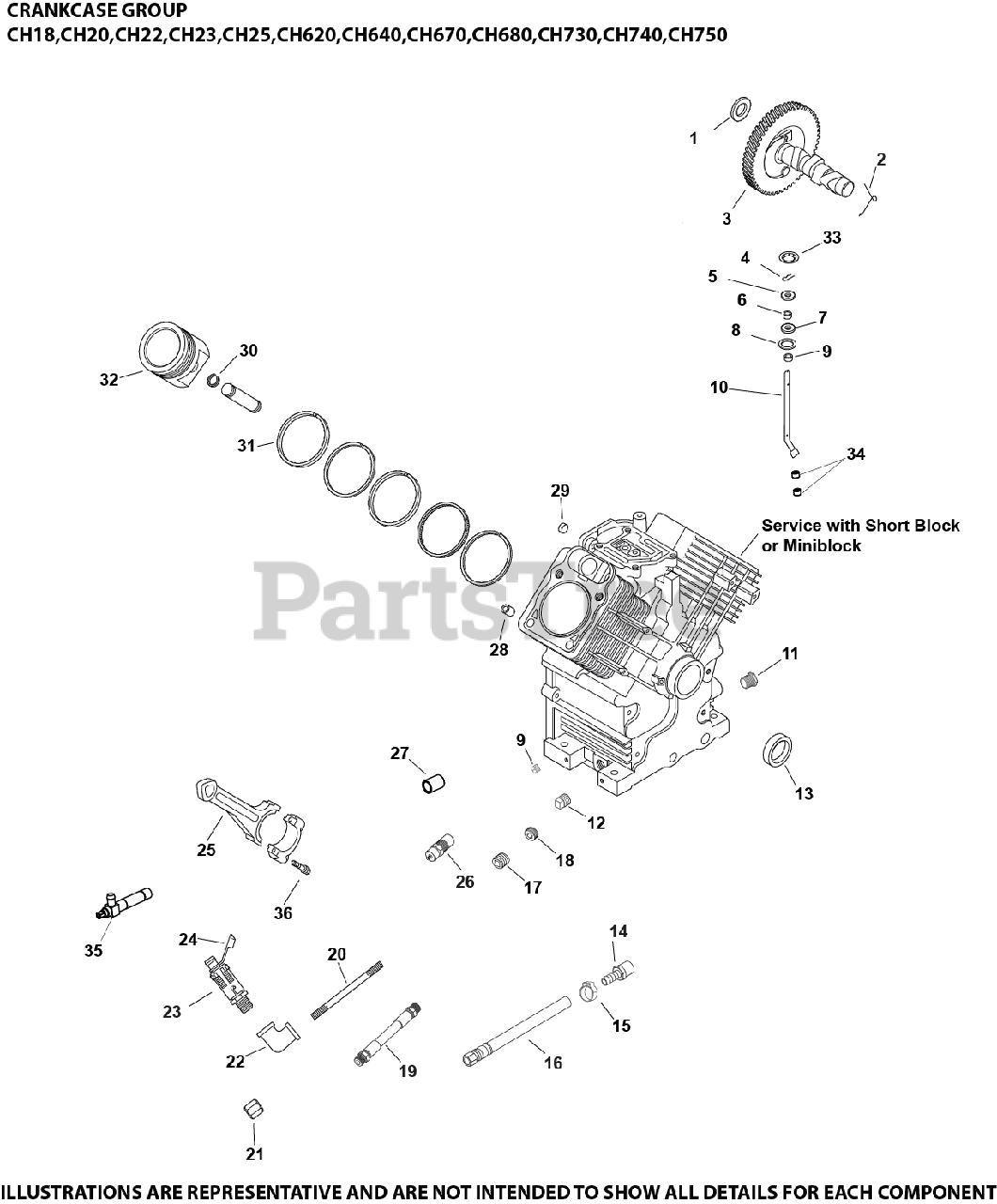

Crankcase 2-24-358 CH18-750 Parts Diagram

  • Title

3

Kohler 24 012 18-S

KIT, CAMSHAFT

$137.99

$

Usually ships in 2-5 days

0

11

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

13

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$8.99

$

In Stock, Qty 20+

0

23

Kohler 25 755 14-S

KIT, OIL DRAIN VALVE

$26.99

$

In Stock, only 2 left!

0

24

Kohler 25 173 14-S

CAP, OIL DRAIN VALVE

$2.49

$

In Stock, only 1 left!

0

25

Kohler 24 067 34-S

KIT, CONNECTING ROD ASSEMBLY USE 25 067 04-S
(Superseded to 25 067 04-S)

$71.99

$

In Stock, Qty 10

0

28

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 16

0

29

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 4 left!

0

29

Kohler 25 139 28-S

PLUG, CUP

$2.49

$

Usually ships in 2-5 days

0

30

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 9

0

31

Kohler 25 108 01-S

RING SET(STD)STYLE B-1.2mm Tp RING THICK

$75.99

$

In Stock, only 4 left!

0

31

Kohler 25 108 02-S

RING SET(.08)STYLE B-1.2mm Tp RING THICK

$34.99

$

In Stock, only 2 left!

0

31

Kohler 25 108 03-S

RING SET(.25)STYLE B-1.2mm Tp RING THICK

$34.99

$

In Stock, only 2 left!

0

31

Kohler 25 108 04-S

RING SET(.50)STYLE B-1.2mm Tp RING THICK

$123.99

$

Usually ships in 2-5 days

0

32

Kohler 25 874 13-S

PISTON W/RINGS (STYLE B)(STD) - RING SET 25 108 01-S

$324.99

$

In Stock, only 3 left!

0

32

Kohler 25 874 15-S

PISTON W/RINGS (STYLE B)( 0.08) - RING SET 25 108 02-S

$313.99

$

Usually ships in 2-5 days

0

32

Kohler 25 874 16-S

PISTON W/RINGS (STYLE B)(0.25) - RING SET 25 108 03-S

$313.99

$

In Stock, only 1 left!

0

32

Kohler 25 874 17-S

PISTON W/RINGS (STYLE B)(0.50) - RING SET 25 108 04-S

$313.99

$

Usually ships in 2-5 days

0

36

Kohler 25 086 452-S

KIT, ROD BOLTS
(Superseded to 25 086 677-S)

$2.49

$

Usually ships in 2-5 days

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 2 left!

0
