CH740-3159 - Kohler Command PRO Engine, Made for Monarch, 25hp, 725cc Ignition/Electrical 5-24-912 Parts Diagram

Command PRO Engine, Made for Monarch, 25hp, 725cc

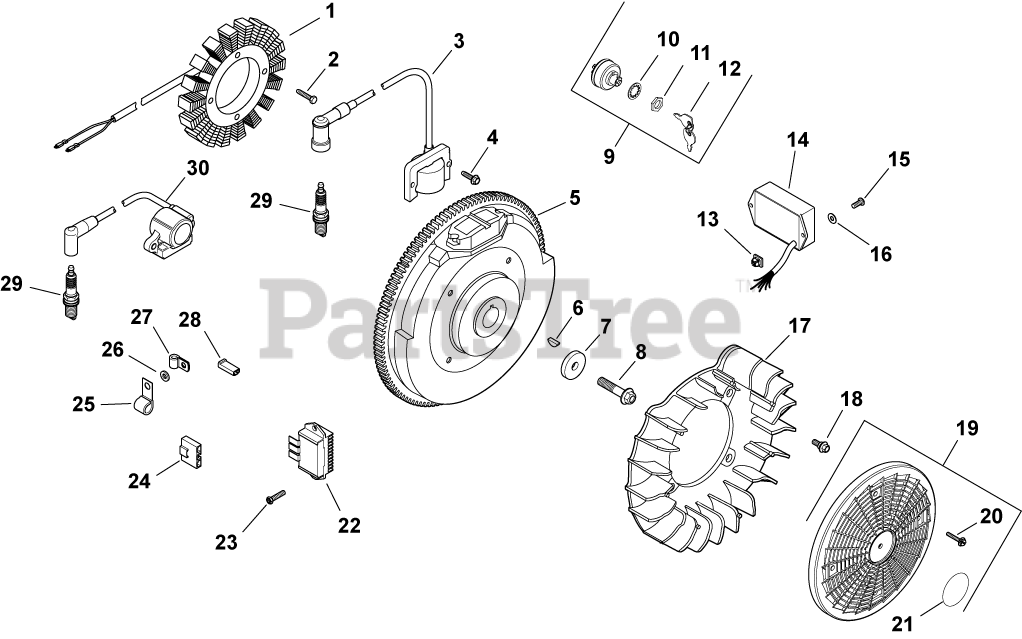

Ignition/Electrical 5-24-912 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 6

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.99

$

In Stock, only 1 left!

0

3

Kohler 24 584 36-S

MODULE, IGNITION

Note: (Before S/N 2633900011)

$112.99

$

In Stock, Qty 6

0

2458452-S

Kohler 24 584 52-S

MODULE, SPARK ADV -USE 24 584 89-S
(Superseded to 24 584 89-S)

Note: (After S./N 2633900001)

$

$

Not available

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.99

$

In Stock, Qty 20+

0

5

Kohler 24 025 15-S

FLYWHEEL ASSEMBLY-USE 24 025 58-S
(Superseded to 24 025 58-S)

Note: (Before S/N 2633900011)

$310.99

$

Usually ships in 2-5 days

0

2402558-S

Kohler 24 025 58-S

FLYWHEEL ASSEMBLY (LW)

Note: (After S/N 2633900001)

$310.99

$

Usually ships in 2-5 days

0

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: (includes 10-12)

$63.99

$

In Stock, only 2 left!

0

10

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

11

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

Usually ships in 2-5 days

0

12

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.99

$

In Stock, only 2 left!

0

13

Kohler 24 100 02-S

NUT, PLASTIC

Note: (Before S/N 2633900011)

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 24 584 27-S

MODULE, DIGITAL SPARK ADV - (#DSC)

Note: (Before S/N 2633900011)

$

$

Not available

24755162-S

Kohler 24 755 162-S

DSAI CONVERSION KIT-USE 24 755 172-S DISC SEE PB 259
(Superseded to 24 755 172-S)

Note: (After S/N 2633900001)

$

$

Not available

15

Kohler 24 086 41-S

SCREW, PHL HD #11-16X1/2"

Note: (Before S/N 2633900011)

$2.99

$

In Stock, only 2 left!

0

16

Kohler 25 468 07-S

WASHER, FLAT 7/32"

Note: (Before S/N 2633900011)

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$50.99

$

In Stock, only 1 left!

0

18

Kohler 25 086 47-S

BOLT, SHOULDER

$2.99

$

In Stock, Qty 20+

0

19

Kohler 54 755 15-S

KIT, GRASS SCREEN

Note: (includes 20, 21)

$41.99

$

In Stock, only 2 left!

0

20

Kohler 25 086 117-S

SCREW, FLG SEMS M4X.7X25

$3.49

$

In Stock, only 4 left!

0

21

Kohler 24 113 18-S

DECAL, GRASS SCREEN USE 24 113 499-S
(Superseded to 24 113 499-S)

$4.99

$

Usually ships in 2-5 days

0

22

Kohler 25 403 05-S

REG/RECTIFIER (20/25 AMP)-USE 25 403 20-
(Superseded to 25 403 48-S)

$82.99

$

In Stock, Qty 9

0

23

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.99

$

In Stock, only 2 left!

0

24

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$29.99

$

In Stock, only 2 left!

0

25

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

26

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 2 left!

0

27

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

28

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

29

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

30

Kohler 24 584 52-S

MODULE, SPARK ADV -USE 24 584 89-S
(Superseded to 24 584 89-S)

Note: (After S/N 2633900001)

$

$

Not available

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$5.99

$

In Stock, only 2 left!

0

24176112-S

Kohler 24 176 112-S

HARNESS, WIRING-USE 24 176 150-S
(Superseded to 24 176 150-S)

Note: NOT ILLUSTRATED (Before S/N 2633900011)

$55.99

$

Usually ships in 2-5 days

0

24176130-S

Kohler 24 176 130-S

HARNESS, DSAI WIRING

Note: NOTILLUSTRATED (After S/N 2633900001)

$33.99

$

Usually ships in 2-5 days

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRATED

$16.99

$

In Stock, only 1 left!

0

2546807-S

Kohler 25 468 07-S

WASHER, FLAT 7/32"

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$8.49

$

Usually ships in 2-5 days

0

2415403-S

Kohler 24 154 03-S

CLIP, CABLE - USE 24 154 10-S
(Superseded to 24 154 10-S)

Note: NOT ILLUSTRATED

$2.99

$

In Stock, only 2 left!

0

2508691-S

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
