CH745-0005 - Kohler Command PRO EFI Engine, Made for Western Arial, 28hp, 20.9kW Fuel System 8-24-526 Parts Diagram

Command PRO EFI Engine, Made for Western Arial, 28hp, 20.9kW

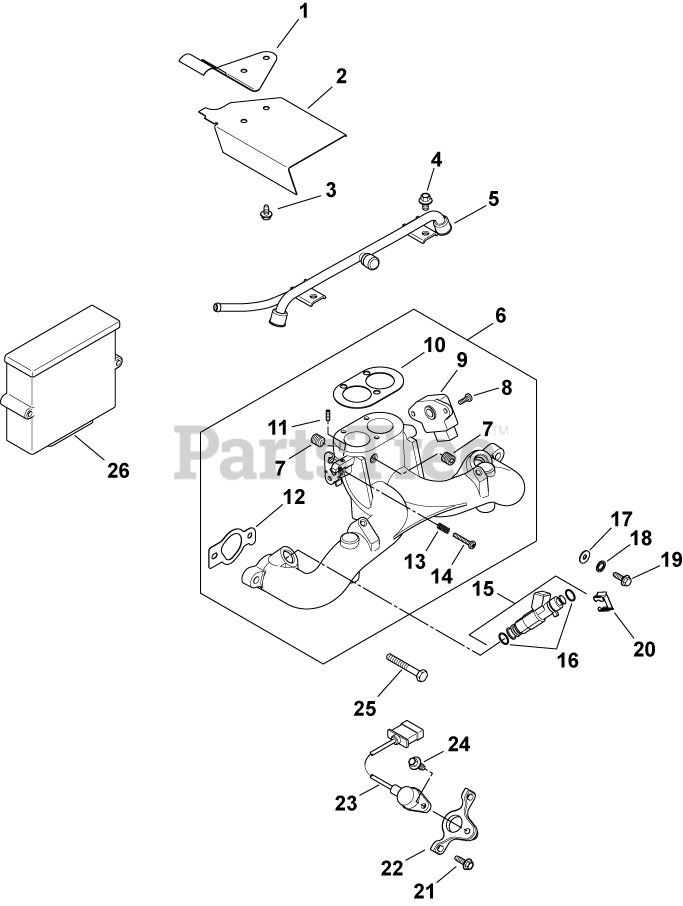

Fuel System 8-24-526 Parts Diagram

  • Title

1

Kohler 24 063 37-S

BAFFLE, VALLEY

$52.99

$

Usually ships in 2-5 days

0

2

Kohler 24 265 08-S

DEFLECTOR, AIR
(Superseded to 24 265 11-S)

$68.99

$

Usually ships in 2-5 days

0

3

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, Qty 13

0

4

Kohler M-639010-S

SCREW, FLG M6X1.0X10

$2.49

$

In Stock, only 1 left!

0

5

Kohler 24 399 04-S

KIT, FUEL RAIL

Note: (includes 16)

$153.99

$

Usually ships in 2-5 days

0

6

Kohler 24 164 84-S

KIT, INTAKE MANIFOLD

Note: (includes 7-14)

$587.99

$

Usually ships in 2-5 days

0

7

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 3 left!

0

8

Kohler M-442012-S

SCREW, PHL PAN M4X0.7X12

$4.99

$

Usually ships in 2-5 days

0

9

Kohler 24 418 06-S

KIT, THROTTLE POSITION SENSOR

$

$

Not available

10

Kohler 24 041 36-S

GASKET, AIR CLEANER BASE

$5.49

$

In Stock, only 1 left!

0

11

Kohler 24 086 49-S

SCREW, THD FRM 1/4-14X.75"

$3.49

$

Usually ships in 2-5 days

0

12

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

13

Kohler 12 089 11-S

SPRING, SPEED CONTROL (SHORT)

$2.49

$

In Stock, Qty 9

0

14

Kohler M-442025-S

SCREW, PHL PAN M4X0.7X25

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 24 331 02-S

INJECTOR, FUEL

Note: (includes 16)

$205.99

$

In Stock, only 2 left!

0

16

Kohler 24 153 26-S

O-RING

$3.99

$

In Stock, only 1 left!

0

17

Kohler X-25-79-S

WASHER, FLAT 3/16"

$3.99

$

In Stock, only 2 left!

0

18

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

$3.99

$

In Stock, only 1 left!

0

19

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

$2.49

$

In Stock, Qty 15

0

20

Kohler 24 154 05-S

CLIP, FUEL INJECTOR

$3.49

$

In Stock, only 3 left!

0

21

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

In Stock, Qty 13

0

22

Kohler 24 418 03-S

KIT, SPEED PICK-UP SENSOR

Note: (includes 25 455 07-S)

$200.99

$

Usually ships in 2-5 days

0

23

Kohler 24 126 131-S

BRACKET, SPEED SENSOR

$10.99

$

Usually ships in 2-5 days

0

24

Kohler 24 086 42-S

SCREW,FLG THD FRM M6X1.0X16-(#25086404S)
(Superseded to 25 086 404-S)

$3.99

$

Usually ships in 2-5 days

0

25

Kohler M-639025-S

SCREW,FLG M6X1.0X25 (#25086294S)
(Superseded to 25 086 294-S)

$2.49

$

Usually ships in 2-5 days

0

26

Kohler 24 584 29-S

MODULE, ENG MNG (ECU)-USE 24 584 58-S
(Superseded to 24 584 58-S)

$737.99

$

Usually ships in 2-5 days

0

24176122-S

Kohler 24 176 122-S

KIT, WIRING HARNESS (32 PIN)

Note: NOT ILLUSTRATED (includes 20 404 01-s)

$686.99

$

Usually ships in 2-5 days

0

2545404-S

Kohler 25 454 04-S

TIE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

2040401-S

Kohler 20 404 01-S

RELAY

Note: NOT ILLUSTRATED

$43.99

$

In Stock, only 1 left!

0

2545507-S

Kohler 25 455 07-S

GAUGE,FEELER(.060" CLR PLASTIC)

Note: NOT ILLUSTRATED

$4.49

$

Usually ships in 2-5 days

0
