CH960-0010 - Kohler Command PRO Engine, Made for Construction Equipment, 36hp, 999cc Air Intake Group 10-62-4 Parts Diagram

Command PRO Engine, Made for Construction Equipment, 36hp, 999cc

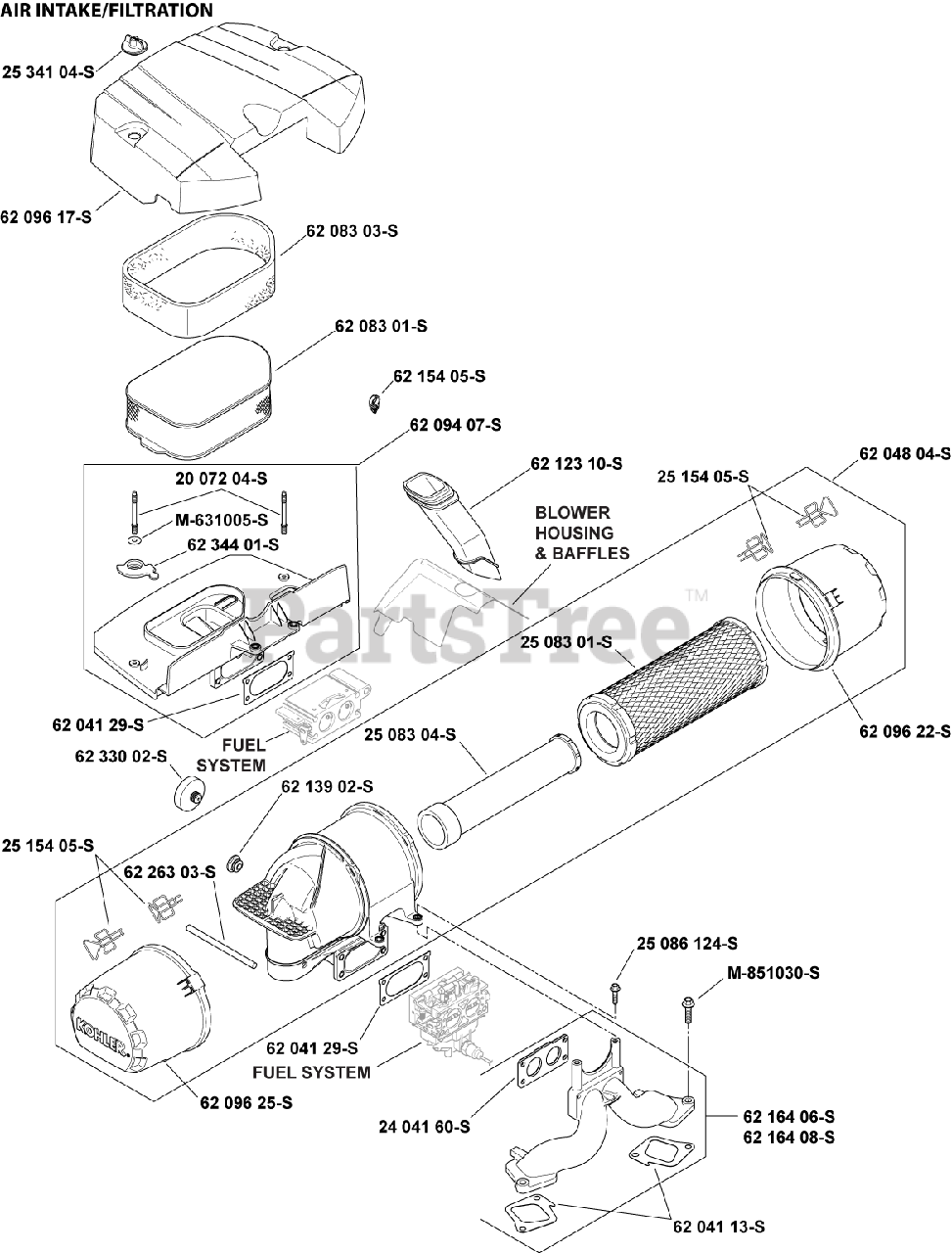

Air Intake Group 10-62-4 Parts Diagram

  • Title

6204804-S

Kohler 62 048 04-S

FILTER ASSEMBLY, AIR-USE 62 048 09-S
(Superseded to 62 048 09-S)

Note: (INCLUDES 25 083 01-S, 25 083 04-S, 25 154 05-S, 62 096 22-S, 62 096 25-S, 62 139 02-S, 62 263 03-S)

$288.99

$

Usually ships in 2-5 days

0

6209622-S

Kohler 62 096 22-S

COVER, AIR FILTER

$29.99

$

In Stock, only 1 left!

0

2515405-S

Kohler 25 154 05-S

CLIP - USE 62 154 07-S
(Superseded to 62 154 07-S)

$12.99

$

In Stock, only 3 left!

0

2508301-S

Kohler 25 083 01-S

ELEMENT, AIR FILTER - PRIMARY

$31.99

$

In Stock, Qty 20+

0

2508304-S

Kohler 25 083 04-S

ELEMENT, AIR FILTER - SAFETY

$31.99

$

In Stock, Qty 14

0

6213902-S

Kohler 62 139 02-S

PLUG, HOLE

$7.49

$

In Stock, only 1 left!

0

6209625-S

Kohler 62 096 25-S

COVER, RAIN CAP

$29.99

$

Usually ships in 2-5 days

0

6233002-S

Kohler 62 330 02-S

SENSOR, FILTER REPLACEMENT

$

$

Not available

6204129-S

Kohler 62 041 29-S

GASKET, AIR CLEANER ELBOW

$2.49

$

Usually ships in 2-5 days

0

25086124-S

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

M-851030-S

Kohler M-851030-S

SCREW, FLG M8X1.25X30

$2.49

$

In Stock, only 4 left!

0

6216406-S

Kohler 62 164 06-S

KIT, INTAKE MANIFOLD - USE 62 164 21-S
(Superseded to 62 164 21-S)

Note: (INCLUDES 24 041 60-S, 62 041 13-S)

$276.99

$

Usually ships in 2-5 days

0

6204113-S

Kohler 62 041 13-S

GASKET, INTAKE MANIFOLD

$14.99

$

Usually ships in 2-5 days

0

2404160-S

Kohler 24 041 60-S

GASKET, CARBURETOR - USE 24 041 82-S
(Superseded to 24 041 81-S)

$7.99

$

Usually ships in 2-5 days

0

6226303-S

Kohler 62 263 03-S

DAMPER, FOAM INSERT

$12.99

$

Usually ships in 2-5 days

0
