CH980-2011 - Kohler Command PRO Engine, Made for BGP, 35hp, 999cc Oil Pan/Lubrication 3-62-6 Parts Diagram

Command PRO Engine, Made for BGP, 35hp, 999cc

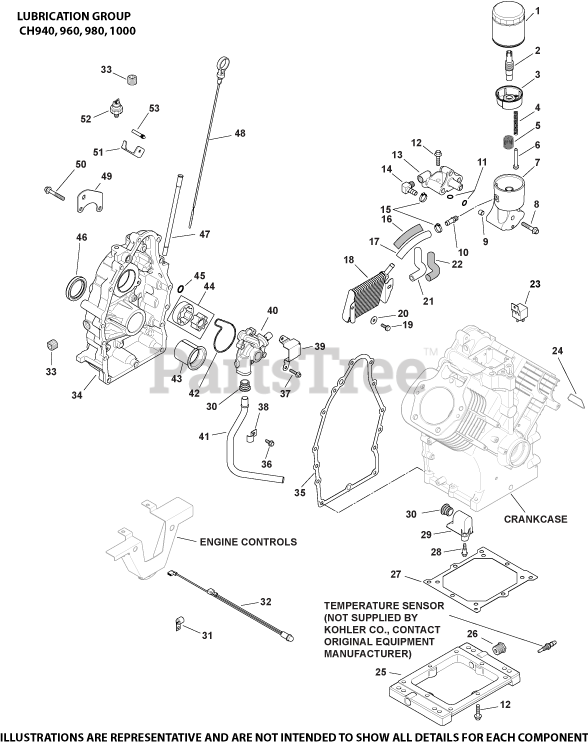

Oil Pan/Lubrication 3-62-6 Parts Diagram

  • Title

1

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

2

Kohler 62 136 01-S

NIPPLE, OIL FILTER - USE 62 136 05-S
(Superseded to 62 136 06-S)

$15.99

$

Usually ships in 2-5 days

0

3

Kohler 62 109 01-S

CUP, OIL FILTER - USE 62 109 02-S
(Superseded to 62 109 02-S)

$14.99

$

Usually ships in 2-5 days

0

4

Kohler 62 089 11-S

SPRING, OIL FILTER VALVE

$2.49

$

In Stock, only 1 left!

0

5

Kohler 62 089 12-S

SPRING, OIL FILTER CUP

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 62 462 02-S

VALVE, OIL FILTER

$7.99

$

Usually ships in 2-5 days

0

7

Kohler 62 081 11-S

HOUSING,HORZL OIL FILTER-USE 62 081 34-S
(Superseded to 62 081 34-S)

$141.99

$

Usually ships in 2-5 days

0

8

Kohler M-851040-S

SCREW, FLG M8X1.25X40

$3.99

$

Usually ships in 2-5 days

0

9

Kohler 15 380 01-S

PIN

$2.49

$

Usually ships in 2-5 days

0

10

Kohler 12 294 04-S

FITTING, HOSE TO PIPE

$29.99

$

Usually ships in 2-5 days

0

11

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, only 3 left!

0

12

Kohler M-851030-S

SCREW, FLG M8X1.25X30

$2.49

$

In Stock, only 4 left!

0

13

Kohler 62 029 04-S

ADAPTER, HORIZONTAL OIL FILTER

$88.99

$

Usually ships in 2-5 days

0

14

Kohler 24 294 12-S

FITTING, 90 DEG. BARBED

$19.99

$

Usually ships in 2-5 days

0

15

Kohler 25 237 02-S

CLAMP

$3.99

$

In Stock, only 2 left!

0

16

Kohler 25 431 16-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

$10.99

$

In Stock, only 1 left!

0

17

Kohler 62 326 10-S

HOSE, OIL RETURN

$7.99

$

Usually ships in 2-5 days

0

18

Kohler 62 594 02-S

COOLER, OIL ASSY - USE 62 594 03-S
(Superseded to 62 594 05-S)

$183.99

$

Usually ships in 2-5 days

0

19

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

20

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 2 left!

0

21

Kohler 62 326 06-S

HOSE, OIL SUPPLY

$16.99

$

In Stock, only 1 left!

0

22

Kohler 25 431 11-S

SLEEVE, ANTI ABRASION 5.5 O.L.-USE 25 43
(Superseded to 25 431 18-S)

$10.99

$

In Stock, only 1 left!

0

24

Kohler 25 113 05-S

DECAL, OIL SENTRY - (#DSC)

$

$

Not available

25

Kohler 62 199 02-S

KIT, OIL RESERVOIR
(Superseded to 62 199 14-S)

$119.99

$

In Stock, only 1 left!

0

27

Kohler 62 041 22-S

GASKET, OIL RESERVOIR

$6.99

$

Usually ships in 2-5 days

0

28

Kohler 32 086 01-S

SCREW, SHD THD FRM M6X.0X6.5

$2.99

$

In Stock, only 1 left!

0

29

Kohler 62 081 06-S

HOUSING, OIL PICK-UP ASSEMBLY

$8.49

$

Usually ships in 2-5 days

0

30

Kohler 62 032 09-S

SEAL, OIL PICK-UP TUBE-USE 62 032 19-S
(Superseded to 62 032 19-S)

$2.49

$

In Stock, only 1 left!

0

31

Kohler 47 154 01-S

CLIP, CABLE

$4.99

$

In Stock, Qty 7

0

32

Kohler 25 352 21-S

LIGHT, INDICATOR ASSEMBLY

$21.99

$

Usually ships in 2-5 days

0

33

Kohler 25 139 74-S

PLUG, PIPE 1/2 NPTF SQ CTSK

$2.49

$

Usually ships in 2-5 days

0

34

Kohler 62 009 11-S

KIT, CLOSURE PLATE USE 62 009 21-S
(Superseded to 62 009 21-S)

$

$

Not available

35

Kohler 62 041 21-S

GASKET, OIL PAN

$12.99

$

In Stock, Qty 12

0

36

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 20+

0

37

Kohler M-639025-S

SCREW,FLG M6X1.0X25 (#25086294S)
(Superseded to 25 086 294-S)

$2.49

$

Usually ships in 2-5 days

0

38

Kohler 62 237 02-S

CLAMP

$2.49

$

Usually ships in 2-5 days

0

39

Kohler 62 063 14-S

BAFFLE, RELIEF VALVE

$34.99

$

Usually ships in 2-5 days

0

40

Kohler 62 081 08-S

USE 62 081 25-S OIL PUMP ASSY
(Superseded to 62 081 25-S)

$

$

Not available

41

Kohler 62 123 05-S

TUBE, OIL PICK-UP
(Superseded to 62 123 42-S)

$18.99

$

Usually ships in 2-5 days

0

42

Kohler 62 153 04-S

O-RING, OIL PUMP HOUSING

$7.49

$

In Stock, only 1 left!

0

43

Kohler 62 030 04-S

BEARING, CRANKSHAFT (PTO)

$58.99

$

Usually ships in 2-5 days

0

44

Kohler 62 393 01-S

PUMP ASSEMBLY, OIL/GEROTOR

$28.99

$

Usually ships in 2-5 days

0

45

Kohler 24 153 08-S

O-RING

$6.49

$

Usually ships in 2-5 days

0

46

Kohler 62 032 16-S

SEAL, OIL
(Superseded to 25 032 18-S)

$9.49

$

In Stock, Qty 7

0

47

Kohler 62 123 15-S

KIT, DIPSTICK TUBE

$41.99

$

Usually ships in 2-5 days

0

48

Kohler 62 038 02-S

DIPSTICK

$13.99

$

Usually ships in 2-5 days

0

49

Kohler 62 445 04-S

STRAP, LIFTING
(Superseded to 62 445 10-S)

$10.99

$

Usually ships in 2-5 days

0

50

Kohler 62 086 07-S

SCREW, FLG M8X1.25X50 USE 25 086 618-S
(Superseded to 25 086 618-S)

$2.99

$

Usually ships in 2-5 days

0

52

Kohler 52 099 08-S

SWITCH, OIL PRESSURE

$62.99

$

Usually ships in 2-5 days

0
