CRT 9016 (7800941-00) - Snapper 16" Rear-Tine Tiller Hood & Tine Group Parts Diagram

16" Rear-Tine Tiller

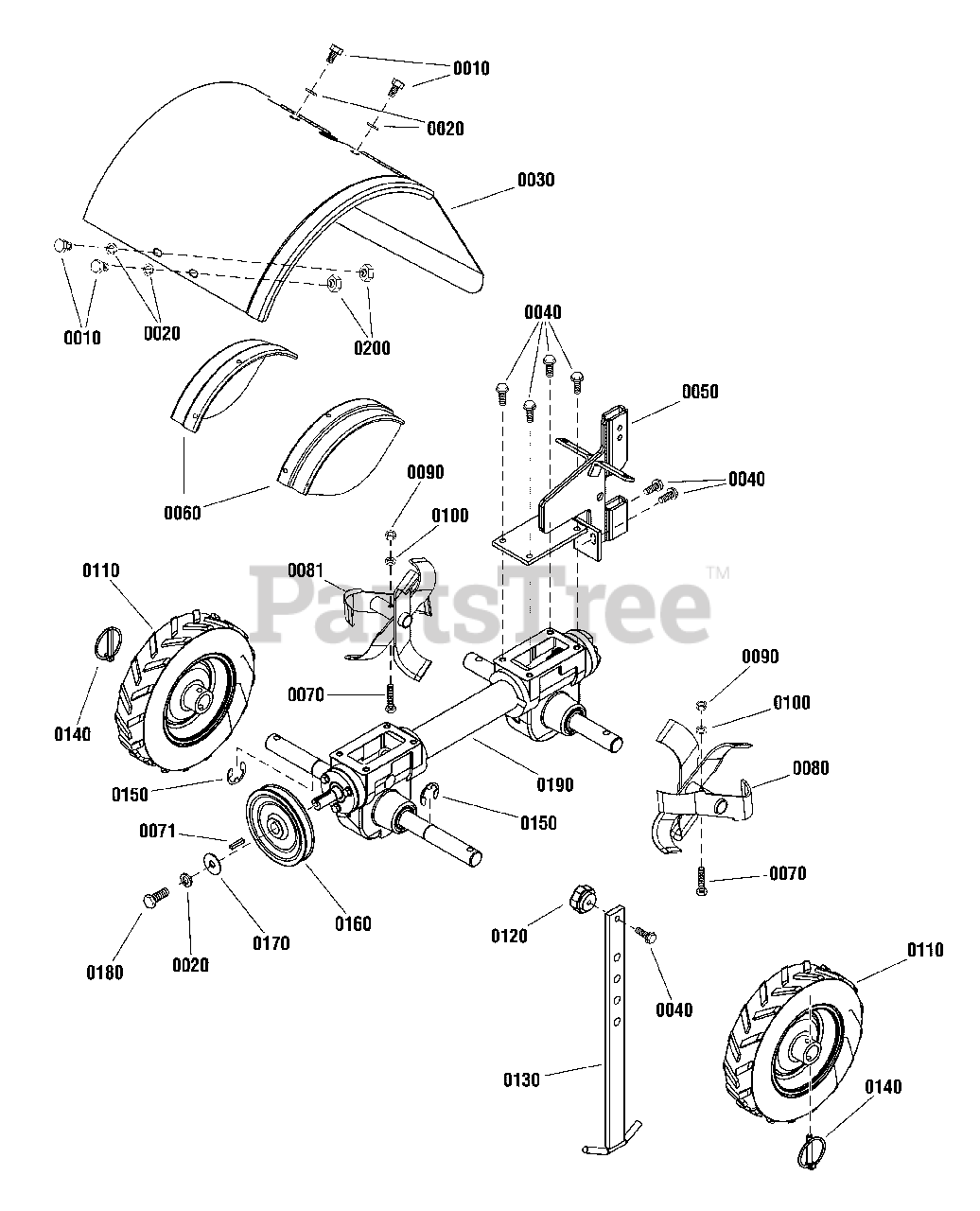

Hood & Tine Group Parts Diagram

  • Title

0010

Snapper 1920787

BOLT, Hex-Head, 5/16-18 x 1/2, G5
(Superseded to 704317)

Note: each

$4.49

$

Usually ships in 2-12 days

0

0020

Snapper 1917356

WASHER, Locking, Spring, 5/16
(Superseded to 703116)

Note: each

$3.49

$

In Stock, Qty 6

0

0030

Snapper 705822

HOOD ASSEMBLY

Note: each

$223.99

$

Usually ships in 2-12 days

0

0040

Snapper 1716780

BOLT, Hex Head, 5/16-18 X 3/4, G5
(Superseded to 704287)

Note: each

$3.99

$

In Stock, Qty 20+

0

0050

Snapper 1738670

DEPTH REGULATOR, Tail Mount
(Superseded to 1738670YP)

Note: each

$192.99

$

Usually ships in 2-12 days

0

0060

Snapper 705823

HOOD, Side Shield

Note: each

$126.99

$

Usually ships in 2-12 days

0

0070

Snapper 1931353

BOLT, 3/8-16 x 1 3/4, G5
(Superseded to 703858)

Note: each

$4.99

$

Usually ships in 2-12 days

0

0071

Snapper 1716771

KEY, Square, 3/16 x 5/8
(Superseded to 1716771YP)

Note: each

$6.49

$

Usually ships in 2-12 days

0

0080

Snapper 1721513

TINE ASSEMBLY - LH
(Superseded to 1721513SM)

Note: each

$174.99

$

Usually ships in 2-12 days

0

0081

Snapper 1721514

TINE ASSEMBLY - RH
(Superseded to 1721514SM)

Note: each

$174.99

$

Usually ships in 2-12 days

0

0090

Snapper 7091585

NUT, Hex, Locking, Two-Way, 3/8-16
(Superseded to 703347)

Note: each

$4.99

$

In Stock, Qty 8

0

0100

Snapper 720178

WASHER, Spring-Lock, 3/8
(Superseded to 018X31MA)

Note: each

$4.49

$

Usually ships in 2-12 days

0

0110

Snapper 705821

TIRE, Pneumatic, Dual Direction

Note: each

$145.99

$

In Stock, only 1 left!

0

0120

Snapper 1733098

KNOB, 5-Star, 5/16-18
(Superseded to 1733098SM)

Note: each

$10.99

$

In Stock, only 3 left!

0

0130

Snapper 1751866

DRAG STAKE ASSEMBLY. Tiller, CRT
(Superseded to 1751866YP)

Note: each

$87.99

$

Usually ships in 2-12 days

0

0140

Snapper 1716776

LOCKPIN, 5/16 x 1 3/4
(Superseded to 703160)

Note: each

$5.49

$

In Stock, only 2 left!

0

0150

Snapper 1716821

RING, Snap
(Superseded to 1716821SM)

Note: each

$6.49

$

Usually ships in 2-12 days

0

0160

Snapper 1751867

PULLEY, Transmission Small, Rear Tine
(Superseded to 1751867YP)

Note: each

$74.99

$

Usually ships in 2-12 days

0

0170

Snapper 1716770

WASHER, 5/16 x 1 1/2
(Superseded to 1716770SM)

Note: each

$6.99

$

Usually ships in 2-12 days

0

0180

Snapper 1921515

BOLT, Hex-Head, 5/16-24 x 3/4
(Superseded to 1921515SM)

Note: each

$3.99

$

Usually ships in 2-12 days

0

0190

Snapper 705818

TRANSMISSION ASSEMBLY CRT7

Note: each

$923.99

$

Usually ships in 2-12 days

0

0200

Snapper 5025057

NUT, Nylock, 5/16-18
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0
