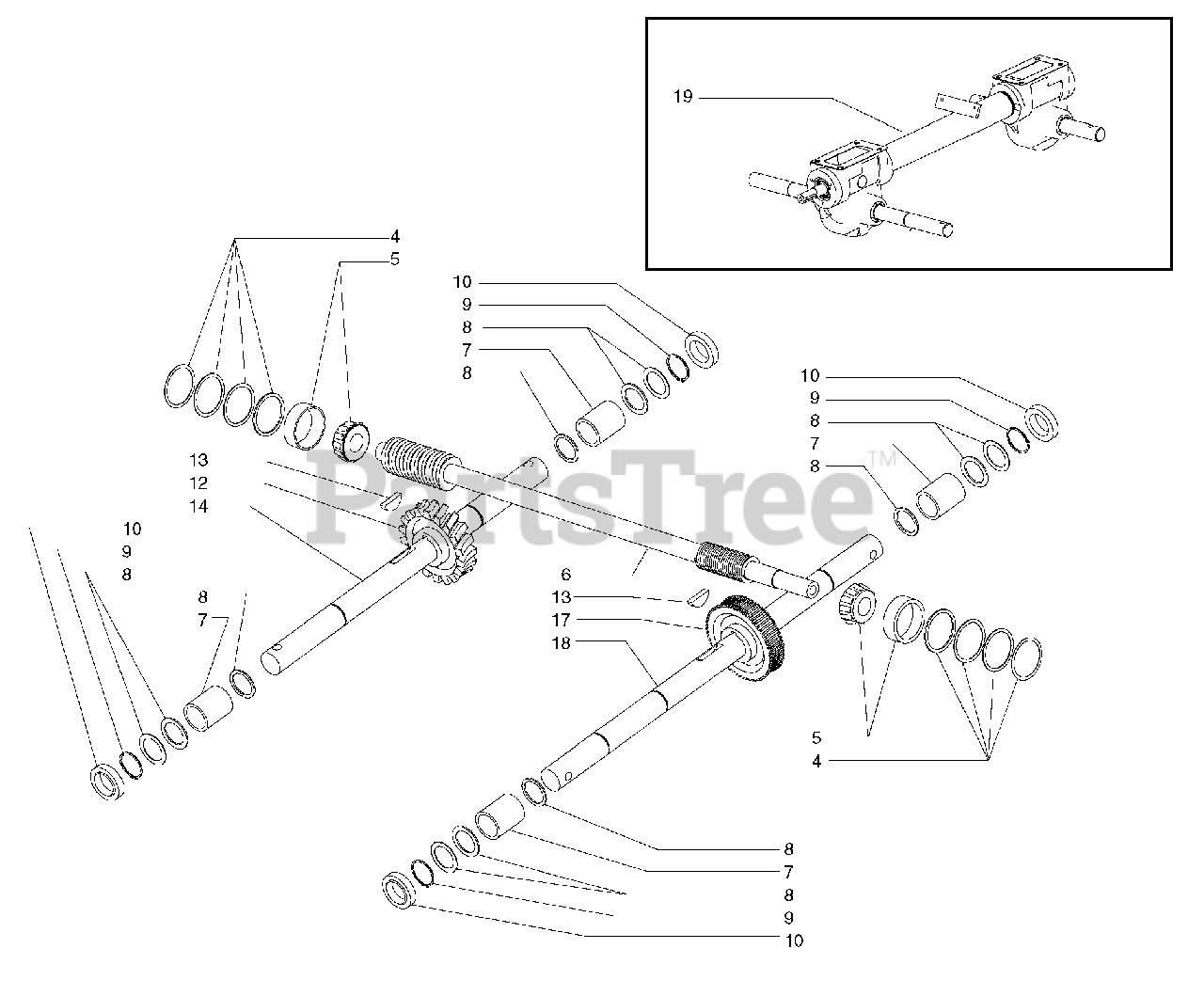

CRT 9016 (7800941-00) - Snapper 16" Rear-Tine Tiller Transmission Group (CRT9016) Parts Diagram

16" Rear-Tine Tiller

Transmission Group (CRT9016) Parts Diagram

  • Title

4

* SHIM, Drive shaft

Note: each

$

$

Not available

5

* BEARING, Tapered Roll

Note: each

$

$

Not available

6

* SHAFT, Drive SRT

Note: each

$

$

Not available

7

* BUSHING

Note: each

$

$

Not available

8

* SPACER, 1" ID x 1-1/4 OD

Note: each

$

$

Not available

9

Snapper 1716830

RING, Retainer Shaft
(Superseded to 1716830SM)

Note: each

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 1716791

SEAL, Oil, Housing
(Superseded to 1716791SM)

Note: each

$52.99

$

Usually ships in 2-12 days

0

12

Snapper 706158

* GEAR, Tine

Note: each

$176.99

$

Usually ships in 2-12 days

0

13

* KEY, Woodruff, 6 x 25

Note: each

$

$

Not available

14

Snapper 705827

* SHAFT, Tine

Note: each

$108.99

$

Usually ships in 2-12 days

0

17

Snapper 705826

* GEAR WHEEL

Note: each

$188.99

$

Usually ships in 2-12 days

0

18

* SHAFT, WHEEL, Long

Note: each

$

$

Not available

19

Snapper 1738764

TRANSMISSION ASSEMBLY
(Superseded to 1738764YP)

Note: each

$1595.99

$

Usually ships in 2-12 days

0
