CS-345 - Echo Chainsaw (SN: 04001001 - 04999999) Clutch Parts Diagram

Chainsaw

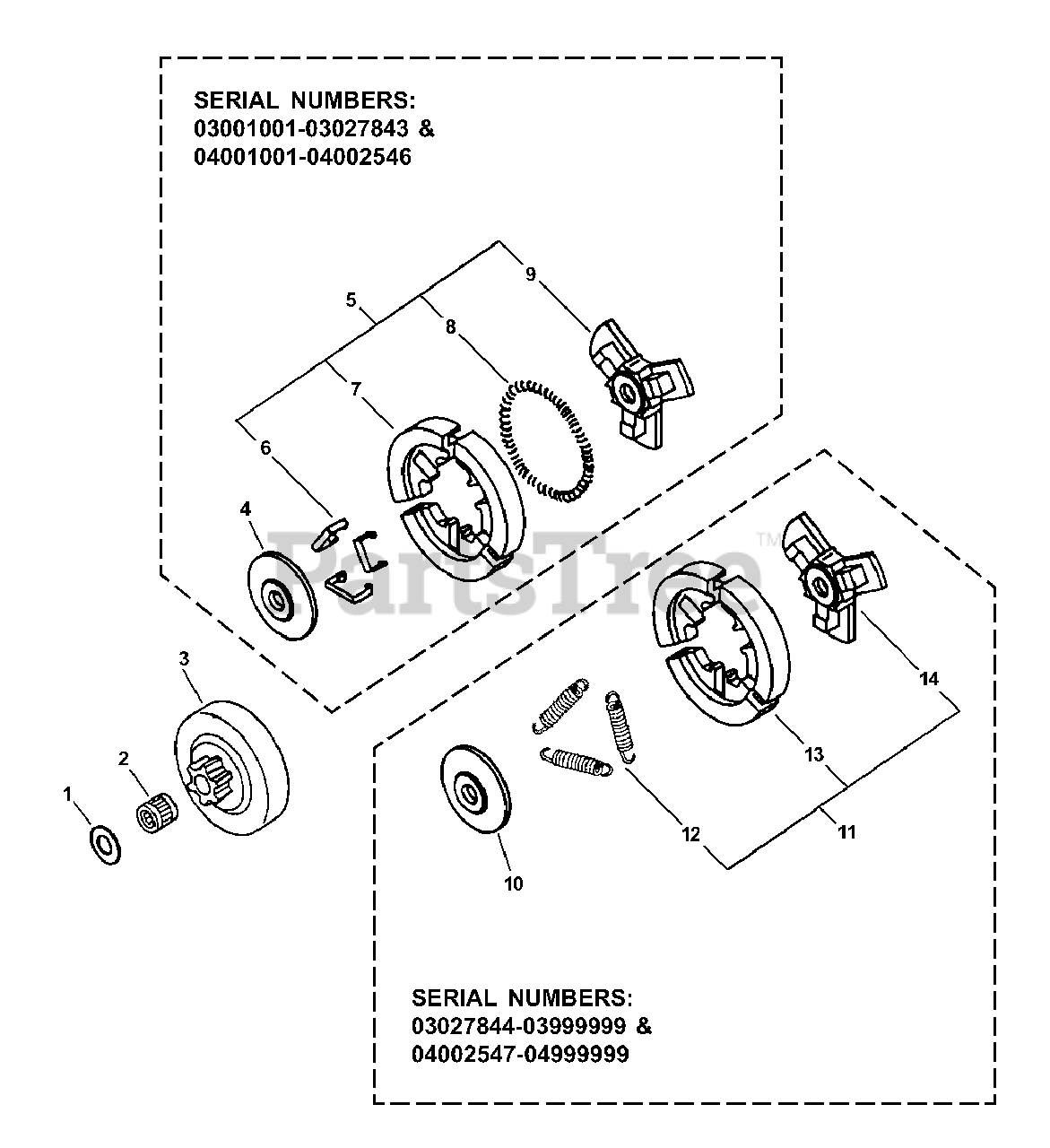

Clutch Parts Diagram

  • Title

1

Echo 17501439131

WASHER

$2.99

$

In Stock, Qty 20+

0

2

Echo 17501235630

BEARING, NEEDLE

$14.99

$

In Stock, Qty 20+

0

3

Echo 17500539133

DRUM, CLUTCH

$22.99

$

In Stock, Qty 20+

0

4

Echo 17501939430

PLATE, CLUTCH

Note: S/N: 03001001-03027843 & 04001001-04002546

$8.99

$

In Stock, Qty 17

0

5

Echo A056000010

CLUTCH ASSY

Note: INCLUDES ITEM 6-9;

$59.99

$

In Stock, only 1 left!

0

6

Echo 17502259530

CLIP, SPRING

Note: S/N: 03001001-03027843 & 04001001-04002546

$3.99

$

In Stock, only 3 left!

0

7

Echo P021000270

CLUTCH SHOE SET

Note: S/N: 03001001-03027843 & 04001001-04002546

$38.99

$

In Stock, only 1 left!

0

8

Echo 17501839430

SPRING, CLUTCH

Note: S/N: 03001001-03027843 & 04001001-04002546

$3.49

$

In Stock, only 3 left!

0

9

Echo A552000000

HUB, CLUTCH

Note: S/N: 03001001-03027843 & 04001001-04002546

$15.99

$

Usually ships in 2-4 days

0

10

Echo A551000010

PLATE, CLUTCH

Note: S/N: 03027844-03999999 & 04002547-04999999

$7.49

$

In Stock, only 2 left!

0

11

Echo A056000070

CLUTCH ASSY
(Superseded to A056000071)

Note: Includes ITEMS 12-13

$38.99

$

In Stock, Qty 14

0

12

Echo V451000470

SPRING, CLUTCH

Note: S/N: 03027844-03999999 & 04002547-04999999

$3.99

$

In Stock, Qty 20+

0

13

Echo P021005810

CLUTCH SHOE SET

Note: S/N: 03027844-03999999 & 04002547-04999999

$34.99

$

In Stock, only 4 left!

0

14

Echo A552000020

HUB, CLUTCH

Note: S/N: 03027844-03999999 & 04002547-04999999

$14.99

$

In Stock, only 4 left!

0
