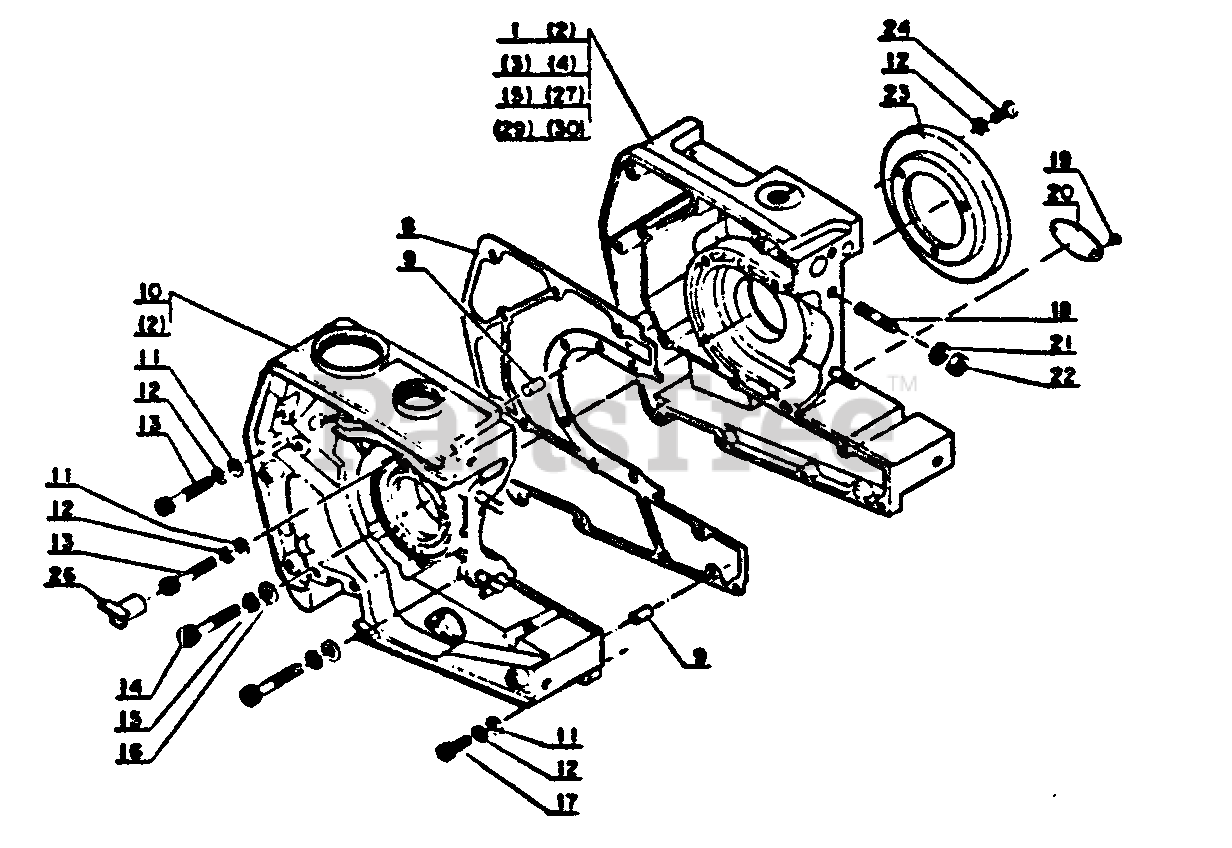

CS-451 VL - Echo Chainsaw Crankcase Parts Diagram

Chainsaw

Crankcase Parts Diagram

  • Title

1

Echo 10020003435

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

2

N/A

$

$

Not available

3

N/A

$

$

Not available

4

N/A

$

$

Not available

5

N/A

$

$

Not available

8

Echo 10024203431

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

9

Echo 10021502830

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

10

Echo 10020003435

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

11

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

12

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

13

Echo 10027703430

BOLT - 4×33
(Superseded to 90010504033)

$1.49

$

Usually ships in 2-4 days

0

14

Echo 10024500830

BOLT - 5×30
(Superseded to 90010505030)

$1.49

$

Usually ships in 2-4 days

0

15

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

16

Echo 10024702830

WASHER
(Superseded to Discontinued)

$

$

Not available

17

Echo 35101403930

BOLT - 4×20
(Superseded to 90010504020)

$

$

Not available

18

Echo 10021400830

STUD
(Superseded to Discontinued)

$

$

Not available

19

Echo 89001100130

RIVET
(Superseded to Discontinued)

$

$

Not available

20

Echo 89011003431

MODEL PLATE

$

$

Currently unavailable

21

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

22

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

23

Echo 10061803431

SEAL, DUST

$4.99

$

Usually ships in 2-4 days

0

24

Echo 90022004010

SCREW 4×10

$

$

Not available

26

Echo 15911003430

CLIP, CORD
(Superseded to Discontinued)

$

$

Not available

27

N/A

$

$

Not available

29

N/A

$

$

Not available

30

N/A

$

$

Not available
