CS-451 VL - Echo Chainsaw Cylinder, Muffler Parts Diagram

Chainsaw

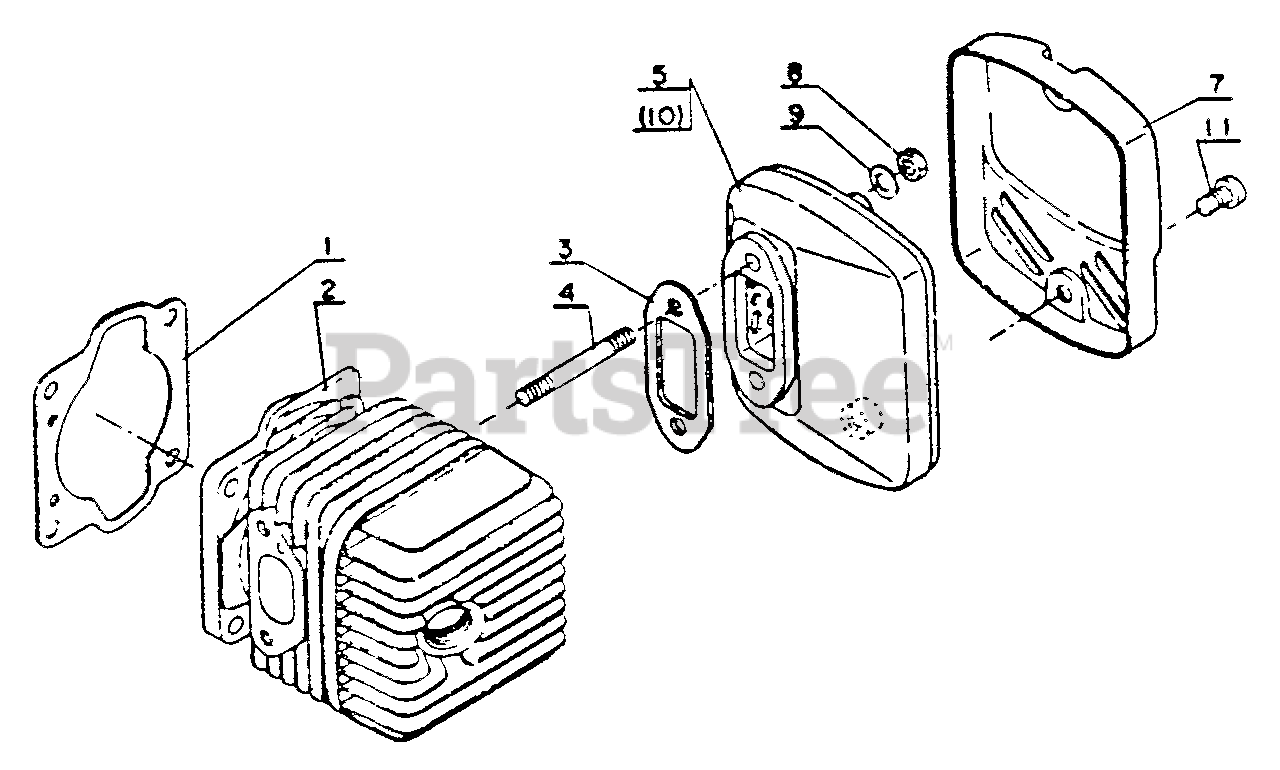

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 10101003430

GASKET, CYLINDER
(Superseded to 10101003431)

$

$

Not available

2

Echo 10101103432

CYLINDER
(Superseded to Discontinued)

$

$

Not available

3

Echo 14551003430

GASKET, EXHAUST
(Superseded to 14551003431)

$

$

Not available

4

Echo 10102503430

STUD

$1.49

$

Usually ships in 2-4 days

0

5

Echo 14560503432

MUFFLER ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 14561303431

LID, MUFFLER
(Superseded to Discontinued)

$

$

Not available

8

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.49

$

In Stock, only 3 left!

0

9

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

10

------------------

N/A

$

$

Not available

11

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, Qty 12

0

12

Echo 90010005008

BOLT - 5X8

$0.99

$

Usually ships in 2-4 days

0

13

Echo 90061000005

LOCKWASHER - 5

$0.99

$

Usually ships in 2-4 days

0
