CS-451 VL - Echo Chainsaw Guide Bar Parts Diagram

Chainsaw

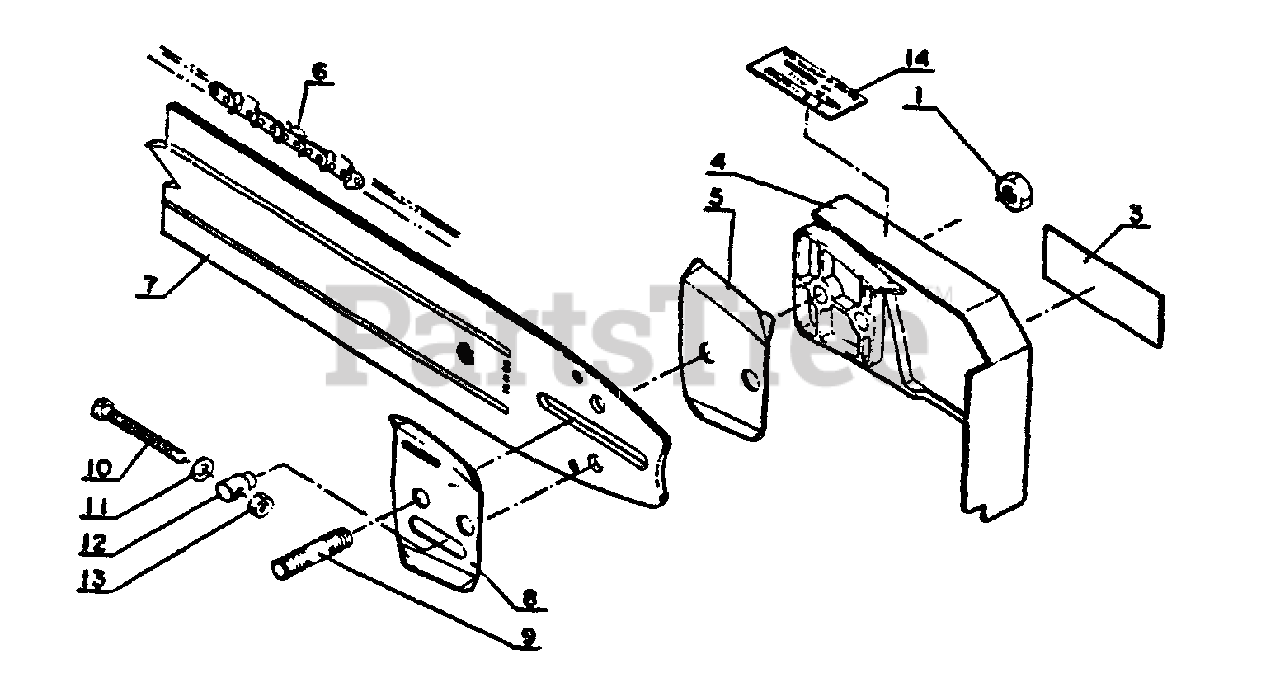

Guide Bar Parts Diagram

  • Title

1

Echo 43301900330

NUT - FLANGE
(Superseded to 43301912330)

$1.99

$

In Stock, Qty 20+

0

3

Echo 89002102831

LABEL - ECHO
(Superseded to 89002102832)

$

$

Not available

4

Echo 43301003431

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

5

Echo 43301202830

PLATE, GUIDE - OUTER
(Superseded to 43301212332)

$6.49

$

In Stock, only 3 left!

0

6

------------------

CHAIN, SAW

$

$

Not available

7

------------------

GUIDE BAR

$

$

Not available

8

Echo 43301302830

PLATE, GUIDE - INNER
(Superseded to 43301312332)

$6.49

$

In Stock, only 2 left!

0

9

Echo 43301100330

STUD, GUIDE BAR
(Superseded to Discontinued)

$

$

Not available

10

Echo 43301602830

SCREW, TENSIONER

$3.99

$

In Stock, only 1 left!

0

11

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available

12

Echo 43301402830

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

13

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.49

$

In Stock, only 3 left!

0

14

------------------

UNKNOWN

$

$

Not available
