CS-451 VL - Echo Chainsaw Left Handle Parts Diagram

Chainsaw

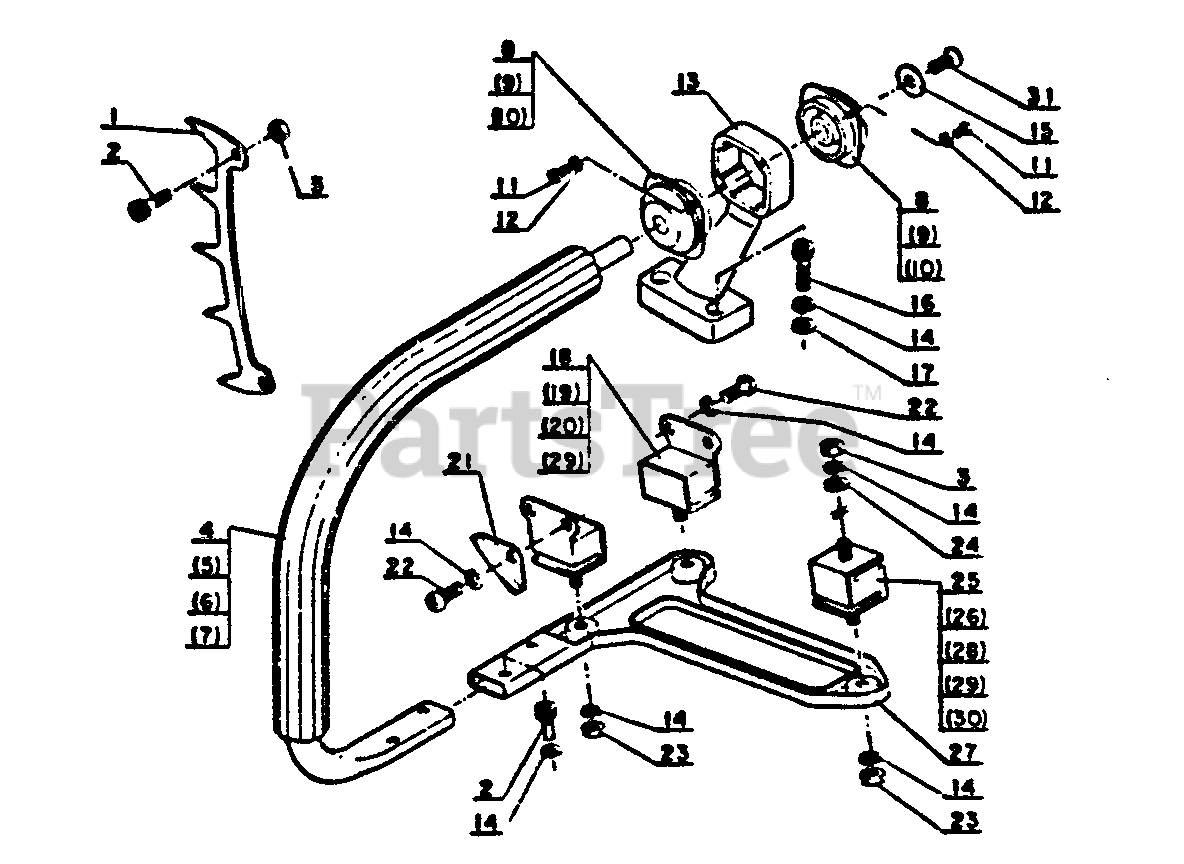

Left Handle Parts Diagram

  • Title

1

Echo 88021003430

BUMPER, SPIKED
(Superseded to 88020003430)

$

$

Not available

2

Echo 17723602830

BOLT - 5×12
(Superseded to 90010505012)

$1.49

$

In Stock, only 3 left!

0

3

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.99

$

In Stock, only 2 left!

0

4

Echo 35160603430

LEFT HANDLE
(Superseded to Discontinued)

$

$

Not available

5

N/A

$

$

Not available

6

N/A

$

$

Not available

7

N/A

$

$

Not available

8

Echo 35160503430

CUSHION RUBBER (L-U)
(Superseded to Discontinued)

$

$

Not available

9

N/A

$

$

Not available

10

N/A

$

$

Not available

11

Echo 90022003008

SCREW 3×8

$0.99

$

Usually ships in 2-4 days

0

12

Echo 90060500003

LOCKWASHER - 3

$0.99

$

Usually ships in 2-4 days

0

13

Echo 35161403430

BRACKET, HANDLE - UPPER
(Superseded to Discontinued)

$

$

Not available

14

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

15

Echo 35163303430

WASHER
(Superseded to Discontinued)

$

$

Not available

16

Echo 10011800830

BOLT - 5×18
(Superseded to 90010505018)

$1.49

$

Usually ships in 2-4 days

0

17

Echo 10024702830

WASHER
(Superseded to Discontinued)

$

$

Not available

18

Echo 35160703430

CUSHION RUBBER (L-L)
(Superseded to Discontinued)

$

$

Not available

19

N/A

$

$

Not available

20

N/A

$

$

Not available

21

Echo 10027603430

PLATE, WIND PROOF
(Superseded to Discontinued)

$

$

Not available

22

Echo 90022045012

SCREW - 5×12

$

$

Currently unavailable

23

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

24

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

25

Echo 35160903430

CUSHION RUBBER (L-L: 2)
(Superseded to Discontinued)

$

$

Not available

26

N/A

$

$

Not available

27

Echo 35161303430

BRACKET, HANDLE - LOWER
(Superseded to 35161303431)

$

$

Not available

28

N/A

$

$

Not available

29

N/A

$

$

Not available

30

N/A

$

$

Not available

31

Echo 90021405012

SCREW 5×12

$

$

Not available
