CS-451 VL - Echo Chainsaw Starter Parts Diagram

Chainsaw

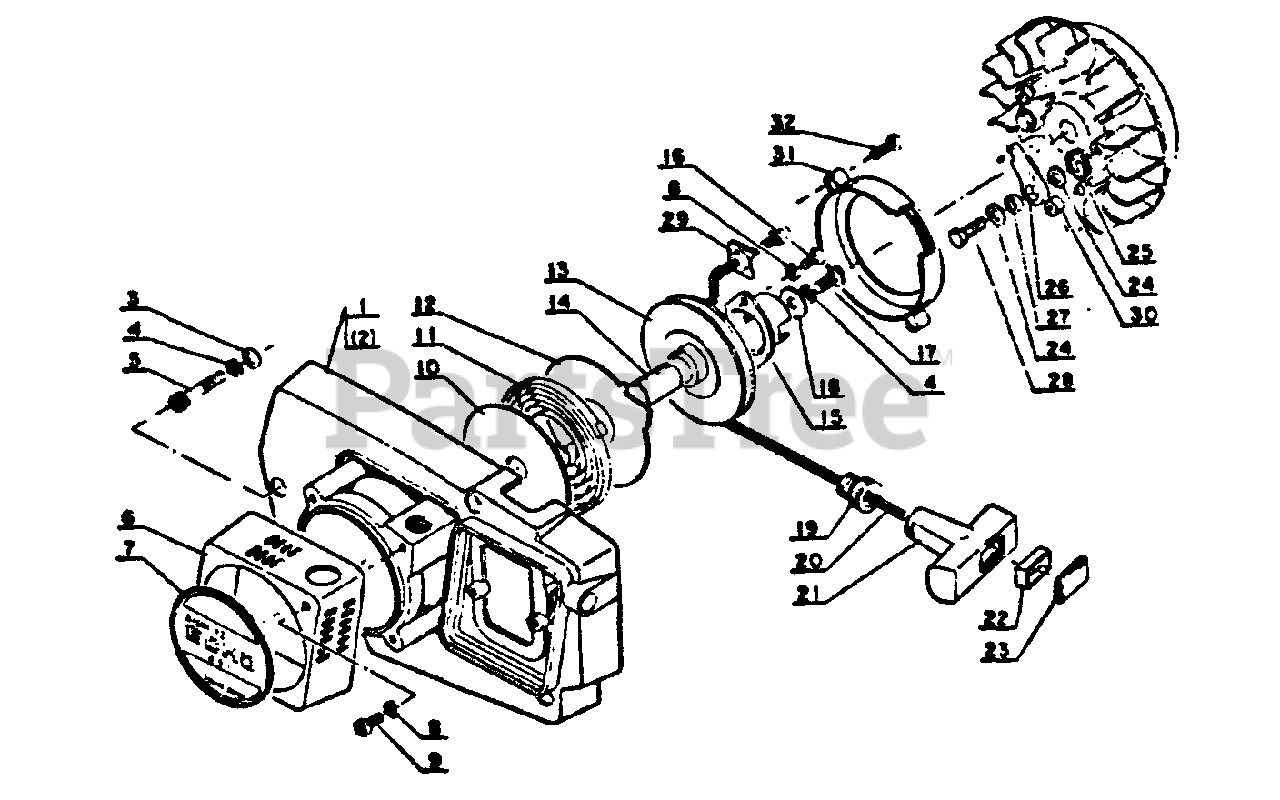

Starter Parts Diagram

  • Title

Echo 17720003431

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 10150703431

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

2

UNKNOWN

$

$

Not available

6

Echo 10061603431

FILTER, DEBRIS
(Superseded to 10061603430)

$

$

Not available

8

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

9

Echo 90022004008

SCREW 4×8

$0.99

$

In Stock, Qty 6

0

10

Echo 17722102830

PLATE, STARTER

$7.49

$

In Stock, only 2 left!

0

11

Echo 17722002834

SPRING, RECOIL

$25.99

$

In Stock, only 1 left!

0

12

Echo 17724203430

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

13

Echo 17721502834

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

14

Echo 17721602832

BUSHING

$1.99

$

In Stock, only 1 left!

0

15

Echo 17724302832

CATCHER, PAWL
(Superseded to Discontinued)

$

$

Not available

16

Echo 90022004010

SCREW 4×10

$

$

Not available

17

Echo 17723602830

BOLT - 5×12
(Superseded to 90010505012)

$1.49

$

In Stock, only 3 left!

0

18

Echo 177214-02830

WASHER 5.2×16×1.0

$0.99

$

In Stock, only 2 left!

0

19

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

20

Echo 17722607060

ROPE, STARTER 4.0×950

Note: RePower BULK OPTION: 99944450000

$12.99

$

In Stock, only 4 left!

0

21

Echo 17722802830

GRIP, STARTER
(Superseded to 17722812330)

$30.99

$

In Stock, Qty 12

0

22

Echo 17722902830

WASHER

$1.99

$

Usually ships in 2-4 days

0

23

Echo 17724402830

COVER, HANDLE

$0.99

$

Usually ships in 2-4 days

0

29

Echo 17724602832

RETAINER, ROPE

$

$

Not available

3

Echo 10024702830

WASHER
(Superseded to Discontinued)

$

$

Not available

4

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

5

Echo 35121800830

BOLT - 5×25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 9

0

7

Echo 89001203431

NAME PLATE
(Superseded to Discontinued)

$

$

Not available

24

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

25

Echo 17723402831

SPRING

$2.99

$

Usually ships in 2-4 days

0

26

Echo 17721802830

PAWL, STARTER

$7.49

$

Usually ships in 2-4 days

0

27

Echo 17721703430

SPACER

$1.99

$

Usually ships in 2-4 days

0

28

Echo 900100-05018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

30

Echo 17724502830

CAP

$0.99

$

In Stock, Qty 6

0

31

Echo 17724103430

COVER, DUST
(Superseded to Discontinued)

$

$

Not available

32

Echo 90022004016

SCREW 4×16

$

$

Not available
