CS-451 VL - Echo Chainsaw Throttle And Carburetor Parts Diagram

Chainsaw

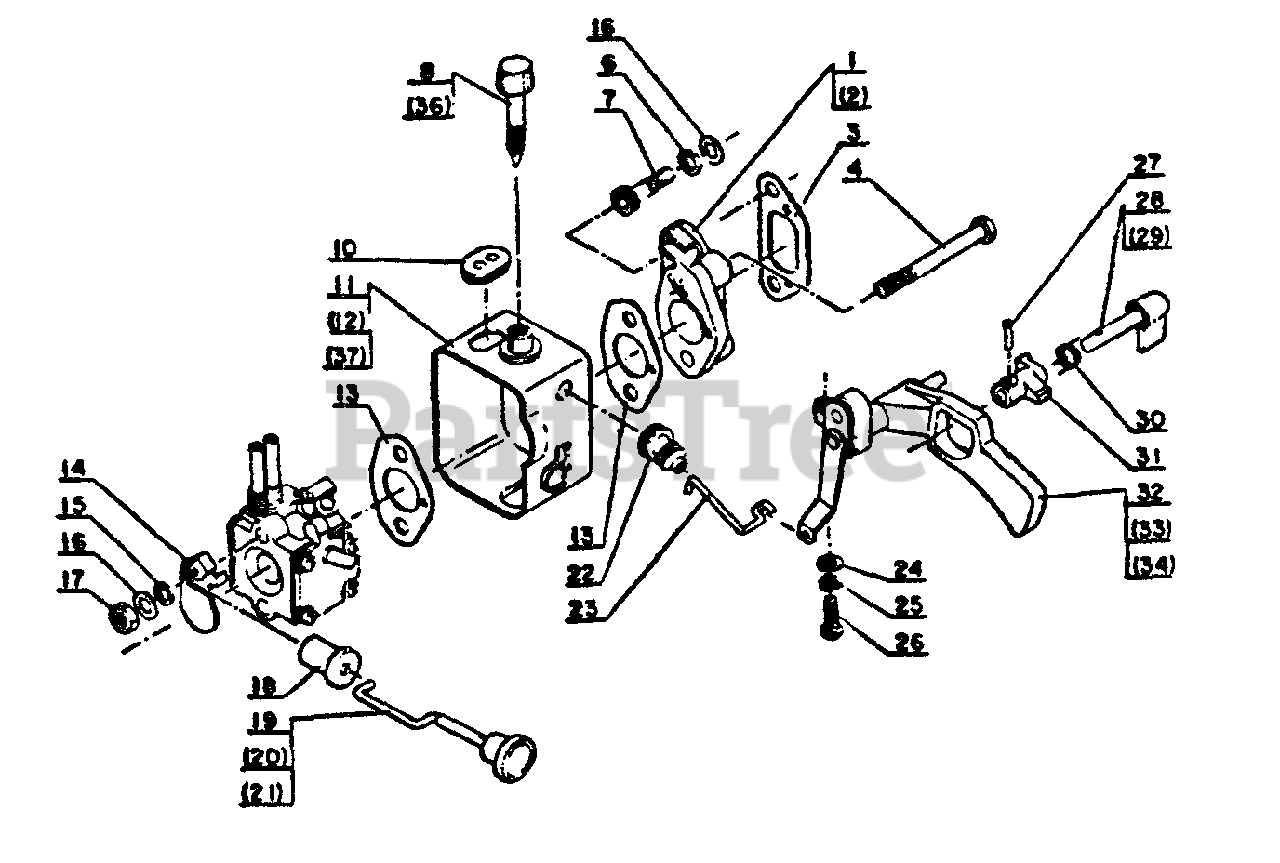

Throttle And Carburetor Parts Diagram

  • Title

1

Echo 13000503434

CASE, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

2

N/A

$

$

Not available

3

Echo 13001003431

GASKET, INTAKE
(Superseded to 13001003432)

$

$

Not available

4

Echo 13002103430

BOLT

$1.49

$

Usually ships in 2-4 days

0

5

Echo 10024702830

WASHER
(Superseded to Discontinued)

$

$

Not available

6

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

7

Echo 13001502830

BOLT - 5×20
(Superseded to 90010505020)

$1.49

$

In Stock, Qty 20+

0

8

Echo 17800703430

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

10

Echo 12901003430

GROMMET
(Superseded to Discontinued)

$

$

Not available

11

Echo 13030603431

CASE, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

12

N/A

$

$

Not available

13

Echo 13001603430

GASKET, INTAKE
(Superseded to 13001603431)

$

$

Not available

14

Echo 17851503430

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

15

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

16

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

18

Echo 17881003430

GROMMET
(Superseded to Discontinued)

$

$

Not available

19

Echo 17850103431

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

20

N/A

$

$

Not available

21

N/A

$

$

Not available

22

Echo 17821003430

RUBBER BUSH
(Superseded to 17821039130)

$2.99

$

In Stock, only 2 left!

0

23

Echo 17801103430

ROD, THROTTLE
(Superseded to 17801110130)

$

$

Not available

24

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

25

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

26

Echo 90022004014

SCREW 4×14

$0.99

$

Usually ships in 2-4 days

0

27

Echo 43704002830

PIN, SPRING
(Superseded to 90034016010)

$0.99

$

Usually ships in 2-4 days

0

28

Echo 17800803430

LEVER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

29

N/A

$

$

Not available

30

Echo 17801303430

SPRING, THROTTLE LOCK

$1.99

$

Usually ships in 2-4 days

0

31

Echo 17801203430

LOCKOUT, TRIGGER
(Superseded to 17801211030)

$3.49

$

Usually ships in 2-4 days

0

32

Echo 17800503431

TRIGGER, THROTTLE
(Superseded to 17800511030)

$

$

Not available

33

N/A

$

$

Not available

34

N/A

$

$

Not available

36

N/A

$

$

Not available

37

N/A

$

$

Not available
