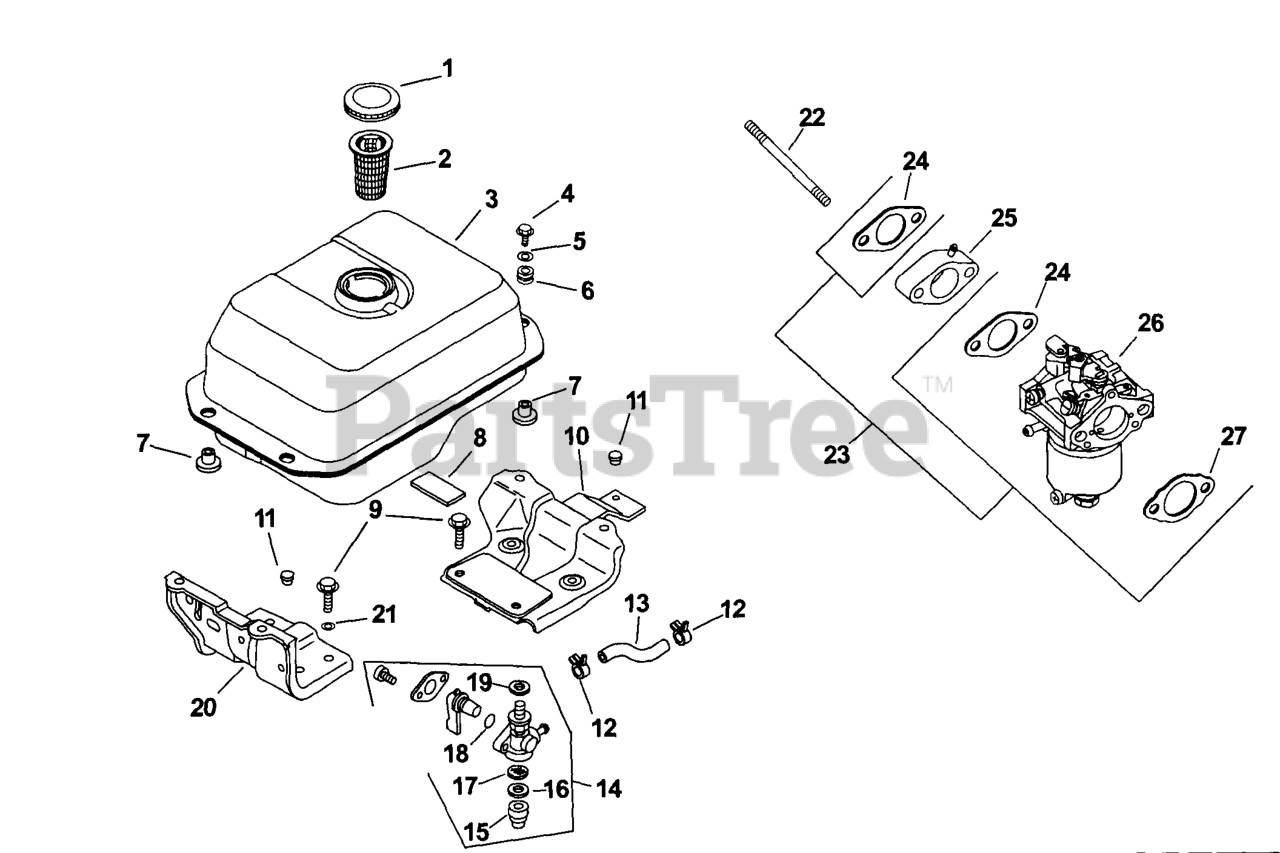

CS10-931618 - Kohler Command PRO Engine, Basic Version, 10hp, 7.46kW Fuel System Created 11/15/2005 Parts Diagram

Command PRO Engine, Basic Version, 10hp, 7.46kW

Fuel System Created 11/15/2005 Parts Diagram

  • Title

1

Kohler 63 173 07-S

CAP, CARBURETOR ADJUSTING

$

$

Not available

4

Kohler 63 086 72-S

SCREW, FLOAT BOWL, L.F.

$

$

Not available

9

Kohler 63 086 65-S

SCREW

$5.49

$

Usually ships in 2-5 days

0

22

Kohler 63 072 06-S

STUD, CARBURETOR

$7.49

$

Usually ships in 2-5 days

0

23

Kohler 63 853 06-S

KIT, CARBURETOR W/GASKET

$219.99

$

Usually ships in 2-5 days

0

24

Kohler 63 041 13-S

GASKET, INTAKE

$2.99

$

In Stock, Qty 10

0

25

Kohler 63 164 01-S

MANIFOLD, INTAKE

$21.99

$

Usually ships in 2-5 days

0

6375701-S

Kohler 63 757 01-S

CARB REPAIR KIT (CS10 & CS12)

Note: (Includes needle assembly, clip, seal, bowl gasket, bowl screw gasket, air cleaner gasket, & intake gasket [2]) (Not illustrated)

$70.99

$

Usually ships in 2-5 days

0

6375702-S

Kohler 63 757 02-S

CARB FLOAT KIT (CS 10 & 12)

Note: (Includes float, pin, bowl gasket, bowl screw gasket, air cleaner gasket, & intake gasket [2]) (Not illustrated)

$52.99

$

Usually ships in 2-5 days

0

6375534-S

Kohler 63 755 34-S

12HP HIGH ALT KIT(O&N 8,000 FT)

$45.99

$

Usually ships in 2-5 days

0

6308686-S

Kohler 63 086 86-S

SCREW, PAN HEAD

$2.49

$

Usually ships in 2-5 days

0

6346202-S

Kohler 63 462 02-S

VALVE, FUEL COCK ASSEMBLY

$46.99

$

In Stock, only 4 left!

0

6304109-S

Kohler 63 041 09-S

GASKET

$3.99

$

In Stock, only 1 left!

0

6304110-S

Kohler 63 041 10-S

GASKET

$3.99

$

Usually ships in 2-5 days

0

6305001-S

Kohler 63 050 01-S

CUP, FILTER

$4.99

$

In Stock, only 1 left!

0

6305002-S

Kohler 63 050 02-S

FILTER SCREEN

$

$

Not available

6315309-S

Kohler 63 153 09-S

O-RING, FUEL VALVE

$5.99

$

Usually ships in 2-5 days

0
