CS10-931618 - Kohler Command PRO Engine, Basic Version, 10hp, 7.46kW Head/Valve/Breather 4-7-20 Parts Diagram

Command PRO Engine, Basic Version, 10hp, 7.46kW

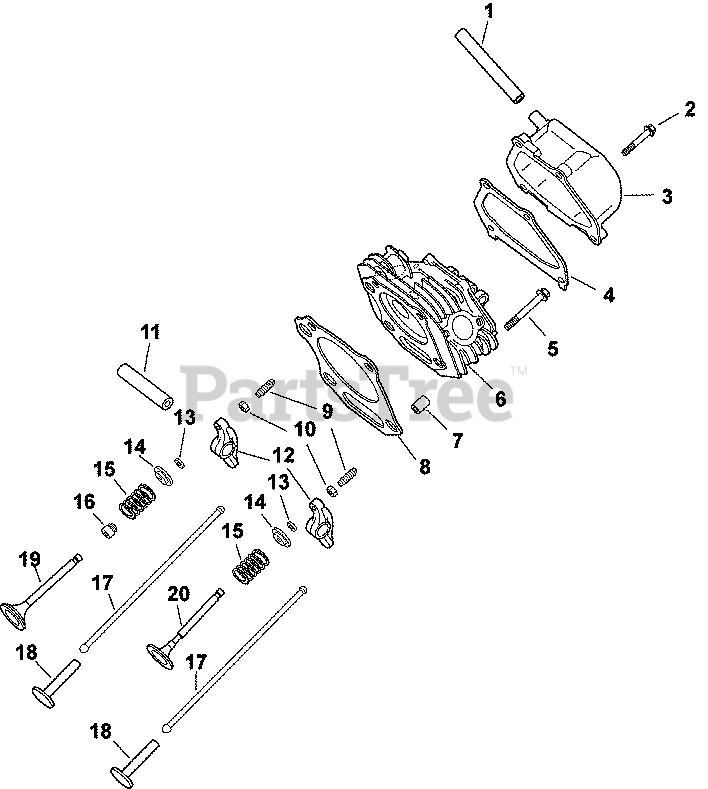

Head/Valve/Breather 4-7-20 Parts Diagram

  • Title

1

Kohler 63 326 13-S

KIT, BREATHER HOSE

$9.99

$

Usually ships in 2-5 days

0

2

Kohler 63 086 02-S

SCREW, VALVE COVER

$2.49

$

In Stock, only 1 left!

0

3

Kohler 63 096 18-S

VALVE COVER FOR 600 SERIES

$85.99

$

Usually ships in 2-5 days

0

4

Kohler 63 041 04-S

GASKET, VALVE COVER

$14.99

$

Usually ships in 2-5 days

0

5

Kohler 63 086 01-S

SCREW, CYL HEAD

$5.99

$

Usually ships in 2-5 days

0

6

Kohler 63 318 06-S

CYLINDER HEAD 600 SERIES

$336.99

$

Usually ships in 2-5 days

0

7

Kohler 63 380 03-S

PIN, DOWEL

$

$

Not available

8

Kohler 63 041 43-S

GASKET, CYL HEAD 600 SERIES

$30.99

$

Usually ships in 2-5 days

0

9

Kohler 63 086 05-S

SCREW, VALVE ADJ

$5.99

$

In Stock, only 1 left!

0

10

Kohler 63 100 02-S

NUT

$2.49

$

In Stock, only 1 left!

0

11

Kohler 63 144 06-S

SHAFT, ROCKER ARM

$12.99

$

Usually ships in 2-5 days

0

12

Kohler 63 186 01-S

ARM, ROCKER

$43.99

$

Usually ships in 2-5 days

0

13

Kohler 63 462 01-S

VALVE, COTTER-(#DSC)

$

$

Not available

14

Kohler 63 173 01-S

CAP, VALVE SPRING

$

$

Not available

15

Kohler 63 089 05-S

SPRING, VALVE

$7.99

$

In Stock, only 1 left!

0

16

Kohler 63 032 01-S

SEAL, VALVE STEM

$12.99

$

Usually ships in 2-5 days

0

17

Kohler 63 411 01-S

PUSH ROD

$

$

Not available

18

Kohler 63 351 01-S

LIFTER, VALVE

$30.99

$

Usually ships in 2-5 days

0

19

Kohler 63 017 01-S

VALVE, INTAKE

$37.99

$

In Stock, only 1 left!

0

20

Kohler 63 016 01-S

VALVE, EXHAUST

$73.99

$

In Stock, only 4 left!

0
