CS8.5-951509 - Kohler Command PRO Engine, Basic Version, 8.5hp, 6.34kW Air Intake/Filtration TP-2536 Parts Diagram

Command PRO Engine, Basic Version, 8.5hp, 6.34kW

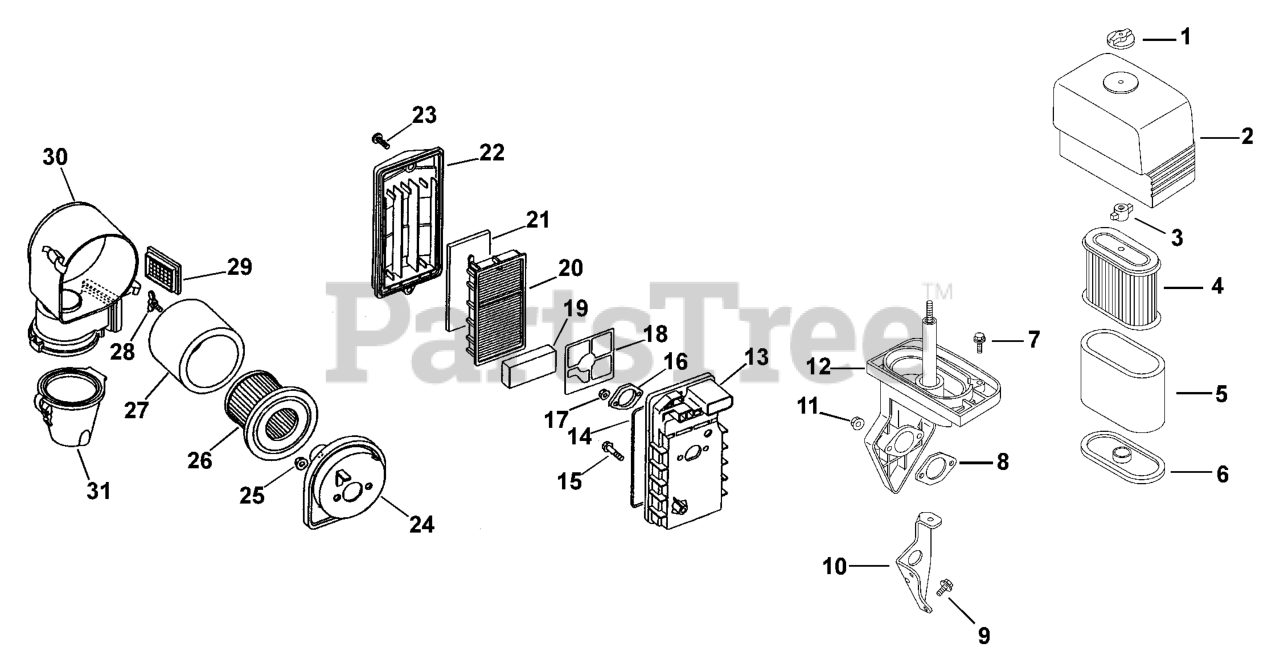

Air Intake/Filtration TP-2536 Parts Diagram

  • Title

1

Kohler 63 100 19-S

NUT-(#DSC)

$

$

Not available

2

Kohler 63 096 14-S

COVER, A/C

$99.99

$

In Stock, only 1 left!

0

3

Kohler 63 100 21-S

NUT, WING A/C

$2.99

$

In Stock, only 3 left!

0

4

Kohler 63 083 11-S

ELEMENT, A/C

$30.99

$

In Stock, only 3 left!

0

5

Kohler 63 083 12-S

PRE-CLEANER/ELEMENT

$12.99

$

Usually ships in 2-5 days

0

6

Kohler 63 032 18-S

SEAL, A/C

$31.99

$

Usually ships in 2-5 days

0

7

Kohler 63 086 20-S

SCREW

$2.49

$

In Stock, only 1 left!

0

8

Kohler 63 041 39-S

GASKET, A/C 8.5

$2.49

$

In Stock, only 2 left!

0

9

Kohler 63 086 35-S

SCREW, HEX FLANGE

$1.99

$

In Stock, only 4 left!

0

10

Kohler 63 126 12-S

BRACKET, A/C CS8

$55.99

$

Usually ships in 2-5 days

0

11

Kohler 63 100 15-S

NUT A/C

$2.99

$

In Stock, only 4 left!

0

12

Kohler 63 094 07-S

BASE, A/C

$47.99

$

Usually ships in 2-5 days

0

6311303-S

Kohler 63 113 03-S

DECAL, A/C

Note: NOT ILLUSTRATED.

$7.49

$

Usually ships in 2-5 days

0
