CV1000-0002 - Kohler Command PRO Engine, Basic Version, 40hp, 29.8kW 04 CylinderHead/Breather Parts Diagram

Command PRO Engine, Basic Version, 40hp, 29.8kW

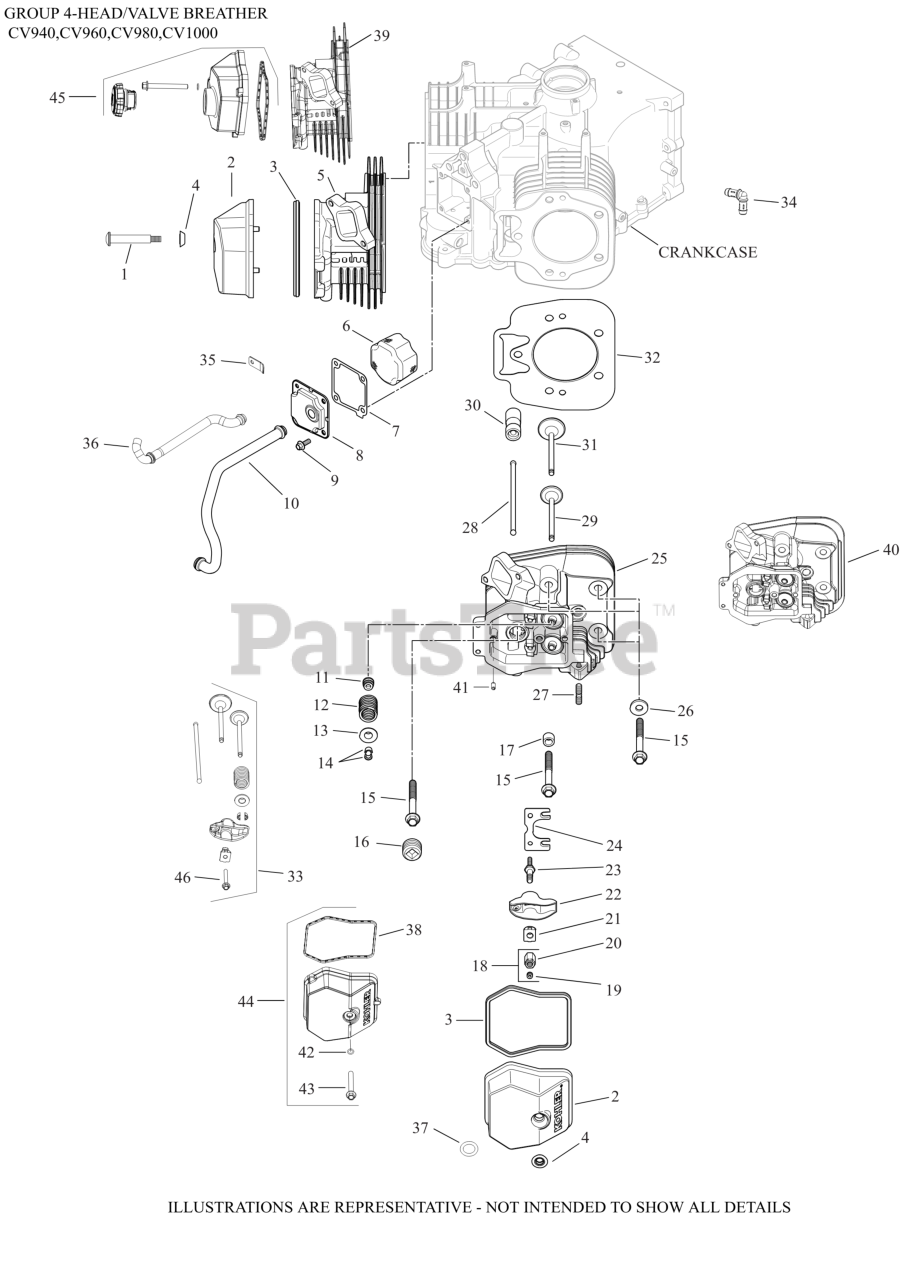

04 CylinderHead/Breather Parts Diagram

  • Title

1

Kohler 25 086 272 -S

SCREW, SHOULDER

$

$

Not available

2

Kohler 62 096 26-S

KIT,COVER VALVE(NO OIL FILL)-(#6209650S)
(Superseded to 62 096 50-S)

$104.99

$

In Stock, only 4 left!

0

3

Kohler 62 032 20-S

SEAL, VALVE COVER

$43.99

$

In Stock, Qty 5

0

4

Kohler 62 313 07-S

GROMMET, VALVE COVER SCREW

$3.49

$

In Stock, only 2 left!

0

5

Kohler 62 318 14-S

KIT, CYLINDER HEAD #1-USE 62 318 12-S
(Superseded to 62 318 32-S)

$428.99

$

Usually ships in 2-5 days

0

6

Kohler 62 050 08-S

FILTER, BREATHER-USE 62 050 10-S
(Superseded to 62 050 10-S)

$15.99

$

Usually ships in 2-5 days

0

7

Kohler 62 041 27-S

GASKET, BREATHER

$2.99

$

In Stock, only 2 left!

0

8

Kohler 62 033 06-S

KIT, BREATHER ASSEMBLY

$53.99

$

Usually ships in 2-5 days

0

9

Kohler 25 086 397-S

SCREW, THREAD FORMING

$4.99

$

In Stock, Qty 7

0

9

Kohler M-651016-S

SCREW, FLG M6X1.0X16

$2.49

$

Usually ships in 2-5 days

0

10

Kohler 62 326 14-S

HOSE, BREATHER (VERTICAL)

$36.99

$

Usually ships in 2-5 days

0

11

Kohler 66 032 05-S

SEAL, VALVE STEM-USE 25 032 14-S
(Superseded to 25 032 14-S)

$11.99

$

In Stock, Qty 20+

0

12

Kohler 24 089 02-S

SPRING, VALVE

$10.99

$

In Stock, Qty 20+

0

13

Kohler 25 173 28-S

CAP, VALVE SPRING

$8.49

$

In Stock, Qty 7

0

14

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 14

0

15

Kohler 62 086 08-S

SCREW, FLG M10X1.5X90

$5.99

$

In Stock, Qty 20+

0

16

Kohler 25 139 66-S

PLUG,PIPE 3/4 NPTF SQ-USE 25 139 89-S
(Superseded to 25 139 89-S)

$3.49

$

Usually ships in 2-5 days

0

17

Kohler 62 112 03-S

SPACER

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 32 100 05-S

HEX NUT ASSEMBLY

$3.99

$

Usually ships in 2-5 days

0

19

Kohler 25 086 168-S

SCREW, SET

$4.99

$

In Stock, only 3 left!

0

21

Kohler 25 599 01-S

PIVOT, ROCKER ARM

$2.99

$

In Stock, Qty 13

0

22

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 3 left!

0

23

Kohler 32 072 04-S

STUD, ROCKER

$4.99

$

In Stock, Qty 9

0

24

Kohler 62 146 11-S

PLATE, GUIDE-DISCONTINUED

$

$

Not available

25

Kohler 62 318 15-S

KIT, CYLINDER HEAD #2-USE 62 318 13-S
(Superseded to 62 318 33-S)

$428.99

$

Usually ships in 2-5 days

0

26

Kohler 12 468 05-S

WASHER, FLAT 13/32"

$2.99

$

In Stock, only 3 left!

0

28

Kohler 12 411 04-S

ROD, PUSH

$5.99

$

In Stock, Qty 6

0

29

Kohler 62 016 02-S

VALVE, EXHAUST

$70.99

$

In Stock, only 1 left!

0

30

Kohler 25 351 10-S

LIFTER, VALVE HYDRAULIC-USE 25 351 11-S
(Superseded to 25 351 11-S)

$29.99

$

In Stock, Qty 20+

0

31

Kohler 62 017 01-S

VALVE, INTAKE

$38.99

$

Usually ships in 2-5 days

0

32

Kohler 62 841 01-S

KIT, CYLINDER HEAD GASKET

$34.99

$

In Stock, only 3 left!

0
