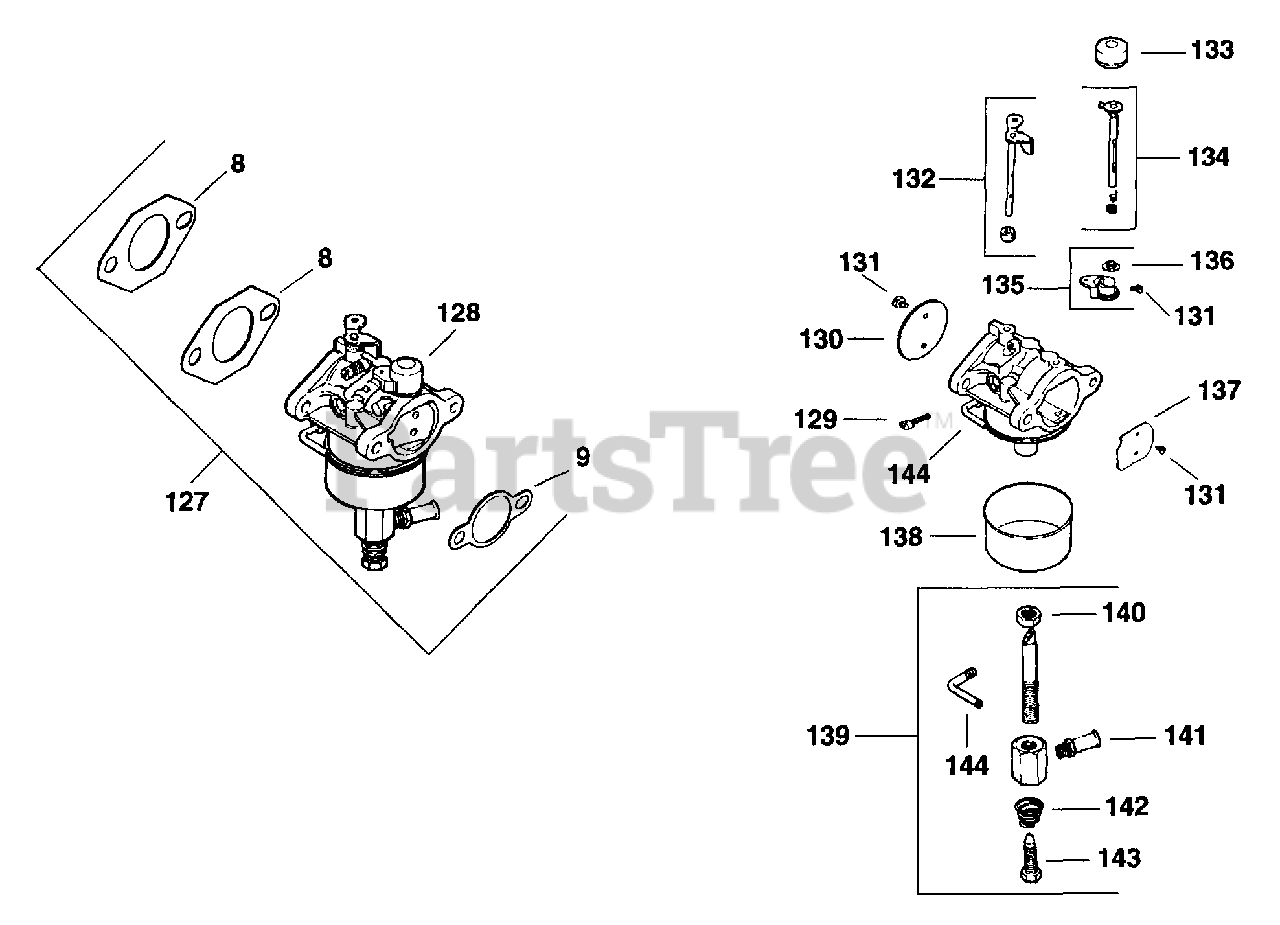

CV11-1110 - Kohler Command PRO Engine, Made for Pioneer Eclipse, 11hp, 8.2kW Fuel System (Cont.) 8-27-281 (TP-2351) Parts Diagram

Kohler 12 041 01-S

Kohler 12 041 02-S

Kohler 12 853 25-S

Note: Includes 8,9,128, Carburetor assembly 12-053-31.

Kohler 12 053 31

Note: Includes 129-143, choke repair kit 12-757-13

Kohler 12 086 04-S

Kohler 12 146 03-S

Kohler 25 086 27-S

Kohler 12 144 09-S

Kohler 12 173 06-S

Kohler 12 144 20-S

Kohler 12 757 12

Note: Includes 131,136

Kohler 12 158 01-S

Kohler 12 146 12-S

Kohler 12 104 01-S

Kohler 12 757 07-S

Note: Includes 140-144

Kohler 12 100 03-S

Kohler 12 294 04-S

Kohler 12 089 22-S

Kohler 12 086 19-S

Kohler 12 123 14-S

Kohler 12 757 01-S

Note: Not Illustrated. Includes carburetor gasket, air filter base gasket, fuel bowl gasket, bowl screw gasket, welch plug, inlet needle valve, valve inlet seat, solenoid seal

Kohler 12 757 03-S

Note: Not Illustrated. Includes carburetor gasket, air filter base gasket, fuel bowl gasket, bowl screw gasket, welch plug, inlet needle valve, valve inlet seat, solenoid seal

Kohler 12 755 09

Note: Not Illustrated. Includes carburetor gasket, air filter base gasket, fuel bowl gasket, bowl screw gasket, main jet

Kohler 12 755 36-S

Note: Not Illustrated. Includes carburetor gasket, air filter base gasket, fuel bowl gasket, bowl screw gasket, main jet

Kohler 12 757 08-S

Note: Not Illustrated. Includes choke lever, choke shaft assembly, choke plate, choke bushing, choke lever cap, valve screw

Kohler 12 757 11-S

Note: Not Illustrated. Includes choke lever, choke shaft assembly, choke plate, choke bushing, choke lever cap, valve screw

Kohler 12 757 13-S

Note: Not Illustrated. Includes choke lever, choke shaft assembly, choke plate, choke bushing, choke lever cap, valve screw
