CV12.5-1206 - Kohler Command PRO Engine, Basic Version, 12.5hp Starting System 7-27-6 (TP-2351) Parts Diagram

Command PRO Engine, Basic Version, 12.5hp

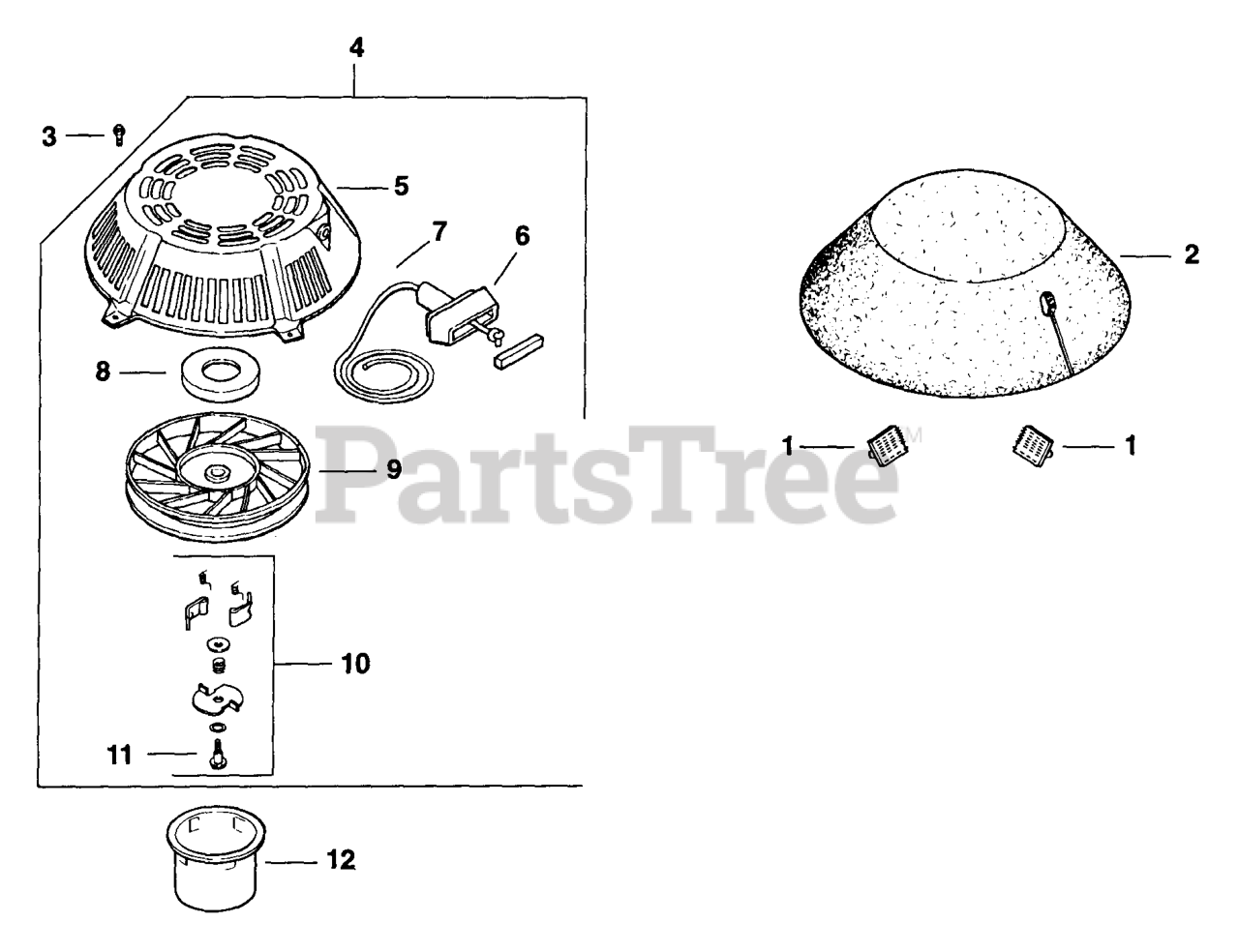

Starting System 7-27-6 (TP-2351) Parts Diagram

  • Title

1

Kohler 12 290 01-S

FASTENER

$6.99

$

Usually ships in 2-5 days

0

2

Kohler 12 050 02-S

FILTER

$75.99

$

Usually ships in 2-5 days

0

3

Kohler M-0545010

SCREW - USE M-545010
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

4

Kohler 12 165 01-S

STARTER ASSY,RETRACTABLE-USE 12 165 03-S
(Superseded to 24 165 02-S)

Note: Includes 5-11

$97.99

$

In Stock, only 4 left!

0

5

Kohler 12 081 01-S

HOUSING - DISCONTINUED

$

$

Not available

6

Kohler 234452

HANDLE - USE 25 166 01
(Superseded to 25 166 01)

$19.99

$

In Stock, Qty 9

0

7

Kohler 12 160 01-S

ROPE - DISCONTINUED

$

$

Not available

8

Kohler 12 089 06-S

SPRING & KEEPER - (#DSC)

$

$

Not available

9

Kohler 12 093 01-S

PULLEY - (#DSC)

$

$

Not available

10

Kohler 12 757 06-S

KIT, DOG REPAIR - (#DSC)

Note: Includes 11

$

$

Not available

11

Kohler 41 086 09-S

SCREW - DISCONTINUED

$

$

Not available

12

Kohler 15 109 01-S

CUP

$27.99

$

In Stock, only 1 left!

0

5235701-S

Kohler 52 357 01-S

Lubricant, Inertia Drive Starter (0.25 oz.)

Note: Not Illustrated

$

$

Not available
