CV12.5-1211 - Kohler Command PRO Engine, Made for Cub Cadet, 12.5hp Starting System 7-27-10 (TP-2351) Parts Diagram

Command PRO Engine, Made for Cub Cadet, 12.5hp

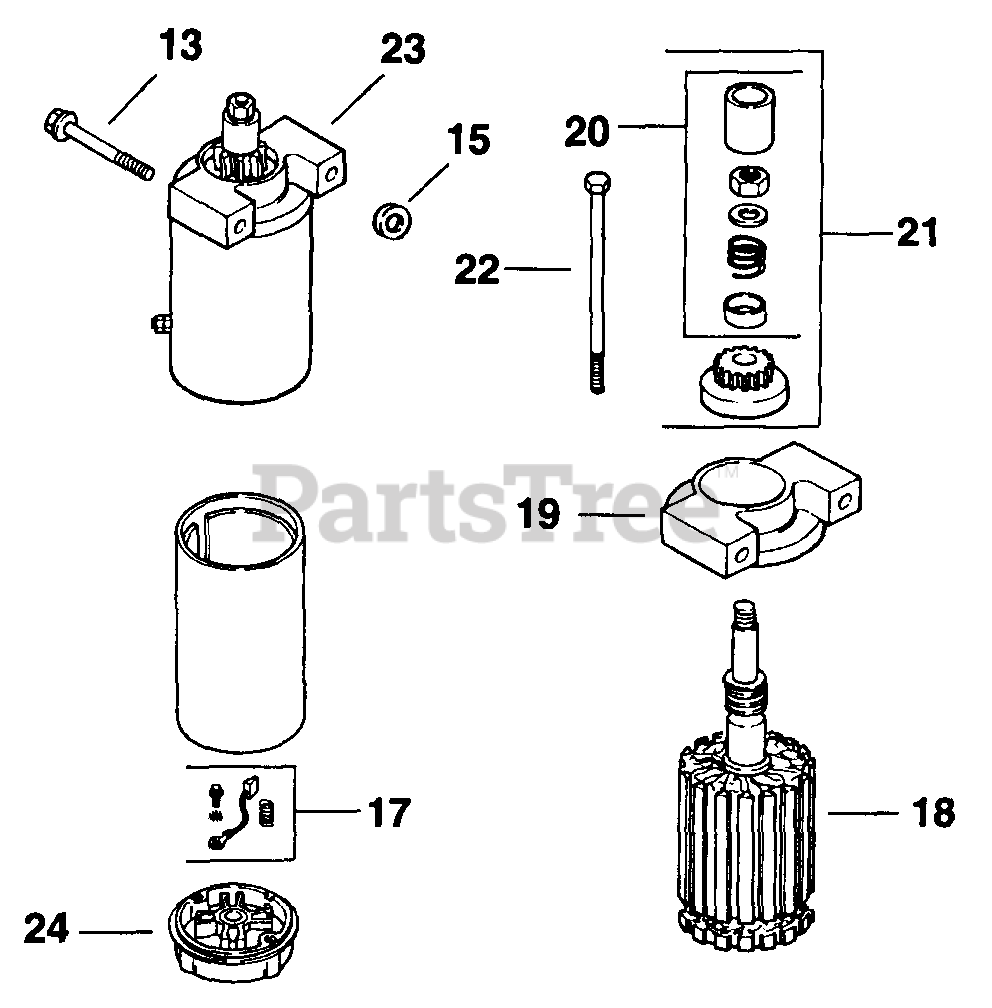

Starting System 7-27-10 (TP-2351) Parts Diagram

  • Title

13

Kohler M-0839070

SCREW - USE M-839070

$

$

Not available

15

Kohler 12 468 01-S

WASHER, FLAT 11/32"

$2.99

$

Usually ships in 2-5 days

0

17

Kohler 52 755 15

KIT - USE 82 755 28
(Superseded to 82 755 28)

Note: Replaced by 82-755-28

$

$

Not available

18

Kohler 12 170 02

ARMATURE - DISCONTINUED

$

$

Not available

19

Kohler 12 227 01

CAP - USE 12 227 05
(Superseded to 12 227 16-S)

$

$

Not available

20

Kohler 12 755 06

DRIVE KIT - USE 12 755 53
(Superseded to 12 755 53)

$215.99

$

Usually ships in 2-5 days

0

21

Kohler 12 755 12

DRIVE KIT - USE 12 755 53
(Superseded to 12 755 53)

Note: Includes 20

$215.99

$

Usually ships in 2-5 days

0

22

Kohler 12 086 02-S

SCREW - DISCONTINUED

$

$

Not available

23

Kohler 12 098 06

STARTER - USE 12 098 12
(Superseded to 12 098 12)

Note: Includes 17-22,24

$385.99

$

Usually ships in 2-5 days

0

24

Kohler 12 243 03

CAP - USE 12 227 10
(Superseded to 12 227 10-S)

$

$

Not available

5235701-S

Kohler 52 357 01-S

Lubricant, Inertia Drive Starter (0.25 oz.)

Note: Not Illustrated

$

$

Not available
