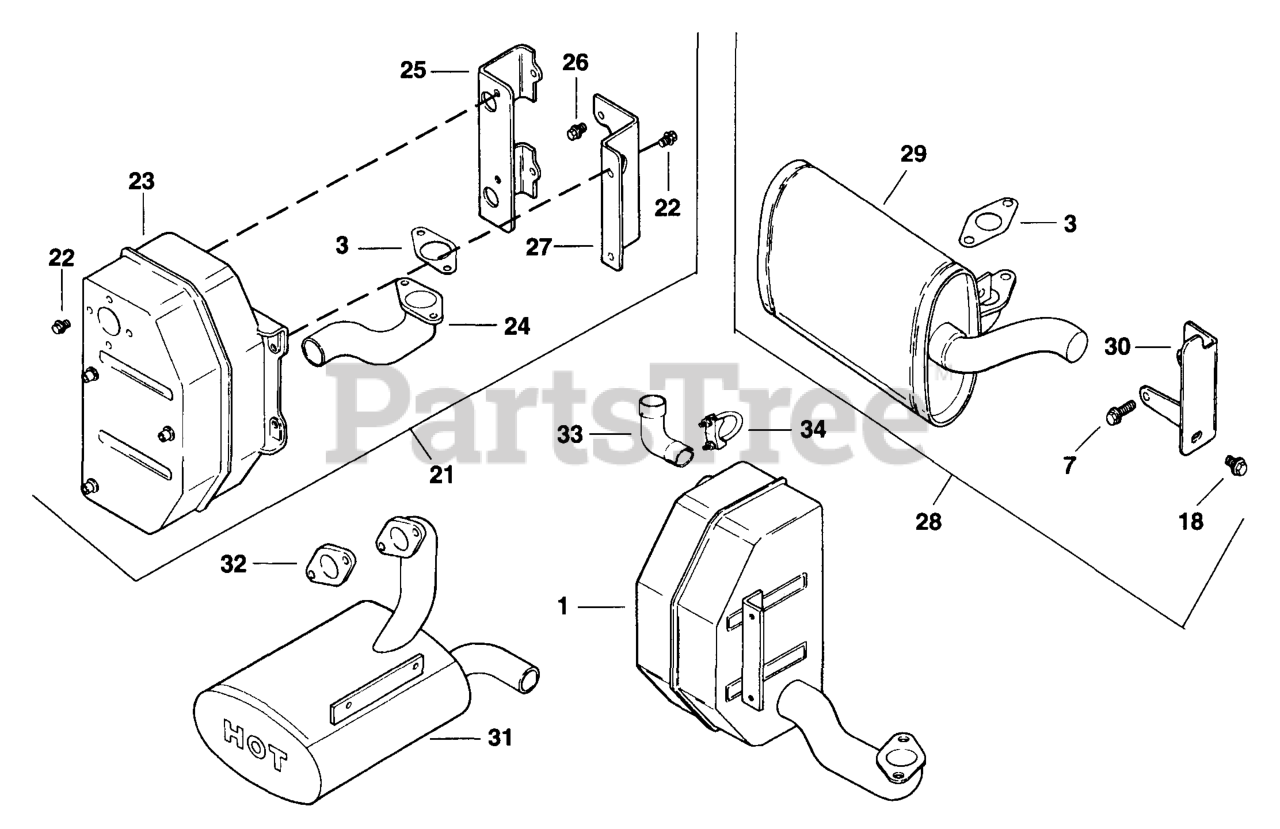

CV12.5-1214 - Kohler Command PRO Engine, Made for Metalcraft, 12.5hp Exhaust (Cont.) 11-27-4 (TP-2351) Parts Diagram

Command PRO Engine, Made for Metalcraft, 12.5hp

Exhaust (Cont.) 11-27-4 (TP-2351) Parts Diagram

  • Title

3

Kohler 12 041 03-S

GASKET, EXHAUST MANIFOLD

$7.49

$

In Stock, Qty 5

0

7

Kohler M-0645025

SCREW - USE M-645025
(Superseded to M-645025)

$2.49

$

In Stock, Qty 12

0

21

Kohler 12 755 29-S

KIT, MUFFLER - DISCONTINUED

Note: Includes 3,22-27

$

$

Not available

22

Kohler M-0649016

Screw, hex. flange M6x1.0x16
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 20+

0

23

Kohler 12 068 11-S

MUFFLER

$451.99

$

Usually ships in 2-5 days

0

24

Kohler 12 382 01-S

PIPE, INLET

$38.99

$

Usually ships in 2-5 days

0

25

Kohler 12 126 40-S

BRACKET, MUFFLER - DISC.

$

$

Not available

26

Kohler M-0649025

Screw, hex. flange M6x1.0x25

$0.99

$

Usually ships in 2-5 days

0

27

Kohler 12 126 41-S

BRACKET, MUFFLER - DISCONTINUED

$

$

Not available
