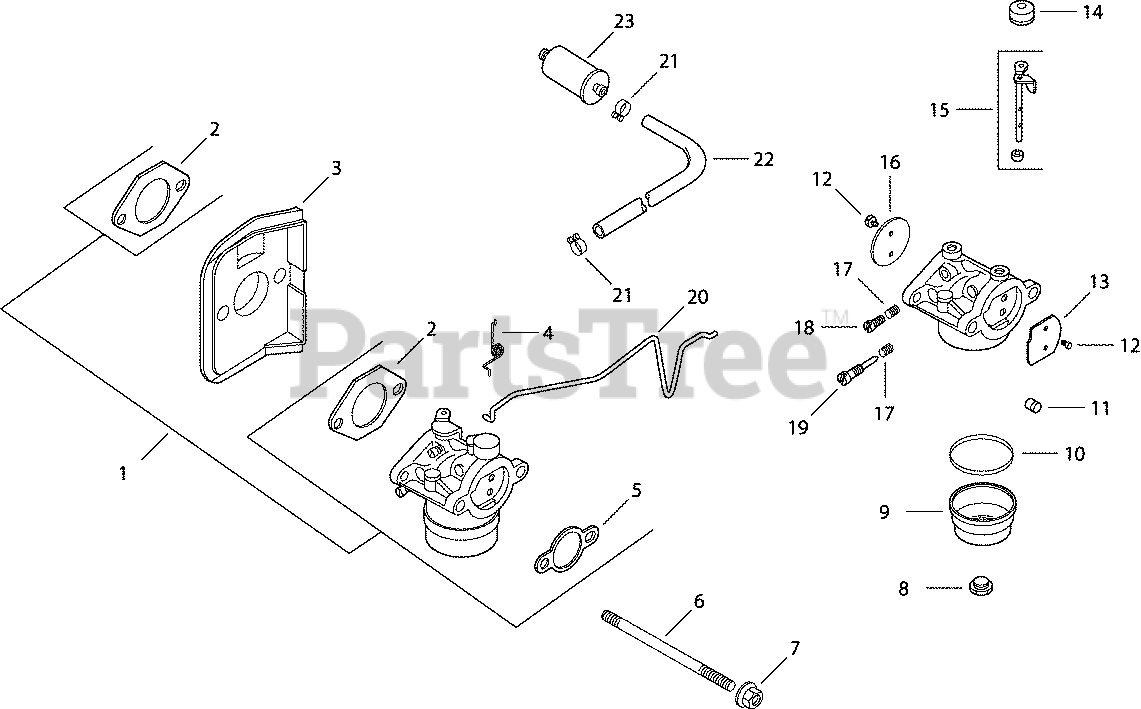

CV12.5-1284 - Kohler Command PRO Engine, Made for Bunton, 12.5hp Fuel System 8-27-129 Parts Diagram

Command PRO Engine, Made for Bunton, 12.5hp

Fuel System 8-27-129 Parts Diagram

  • Title

1

Kohler 12 853 45-S

KIT, CARBURETOR W/GASKET

Note: (includes 2,4,5,8-20)

$263.99

$

Usually ships in 2-5 days

0

2

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

3

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 1 left!

0

4

Kohler 12 089 23-S

SPRING

$10.99

$

In Stock, only 1 left!

0

5

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 14

0

6

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, Qty 6

0

7

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 10

0

8

Kohler 12 086 05-S

SCREW, FUEL BOWL RETAINER

$4.99

$

Usually ships in 2-5 days

0

9

Kohler 12 104 01-S

BOWL

$6.99

$

In Stock, only 2 left!

0

10

Kohler 12 041 05-S

GASKET, FUEL BOWL

$4.49

$

In Stock, Qty 11

0

11

Kohler 12 337 04-S

JET, MAIN

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 25 086 27-S

SCREW, VALVE

$4.49

$

Usually ships in 2-5 days

0

13

Kohler 12 146 12-S

PLATE, CHOKE

$4.49

$

Usually ships in 2-5 days

0

14

Kohler 12 173 06-S

CAP, CHOKE LEVER

$5.49

$

In Stock, only 3 left!

0

15

Kohler 12 144 09-S

SHAFT, THROTTLE

$14.99

$

In Stock, only 2 left!

0

16

Kohler 12 146 03-S

PLATE

$9.99

$

Usually ships in 2-5 days

0

17

Kohler 12 089 09-S

SPRING

$2.49

$

In Stock, only 3 left!

0

18

Kohler 12 086 04-S

SCREW

$4.49

$

In Stock, only 2 left!

0

19

Kohler 12 368 05-S

NEEDLE, IDLE MIXTURE

$10.99

$

Usually ships in 2-5 days

0

20

Kohler 12 079 07-S

LINKAGE, CHOKE

$7.49

$

In Stock, only 1 left!

0

21

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 7

0

22

Kohler 25 353 10-S

LINE, FLEXIBLE FUEL 9.0

$6.49

$

In Stock, only 2 left!

0

23

Kohler 25 050 07-S

FILTER, FUEL

$10.99

$

In Stock, Qty 20+

0

1275737-S

Kohler 12 757 37-S

KIT, REPAIR BOWL REPLACEMENT

Note: NOT ILLUSTRATED

$15.99

$

In Stock, Qty 5

0

1275708-S

Kohler 12 757 08-S

KIT, CHOKE REPAIR

Note: NOT ILLUSTRATED

$35.99

$

In Stock, only 1 left!

0

1275702-S

Kohler 12 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$13.99

$

In Stock, Qty 6

0

1275703-S

Kohler 12 757 03-S

KIT, REPAIR CARBURETOR (PUMP FEED)

Note: NOT ILLUSTRATED

$34.99

$

In Stock, only 3 left!

0
