CV13-21503 - Kohler Command PRO Engine, Basic Version, 13hp, 9.7kW Starting System 7-27-60 Parts Diagram

Command PRO Engine, Basic Version, 13hp, 9.7kW

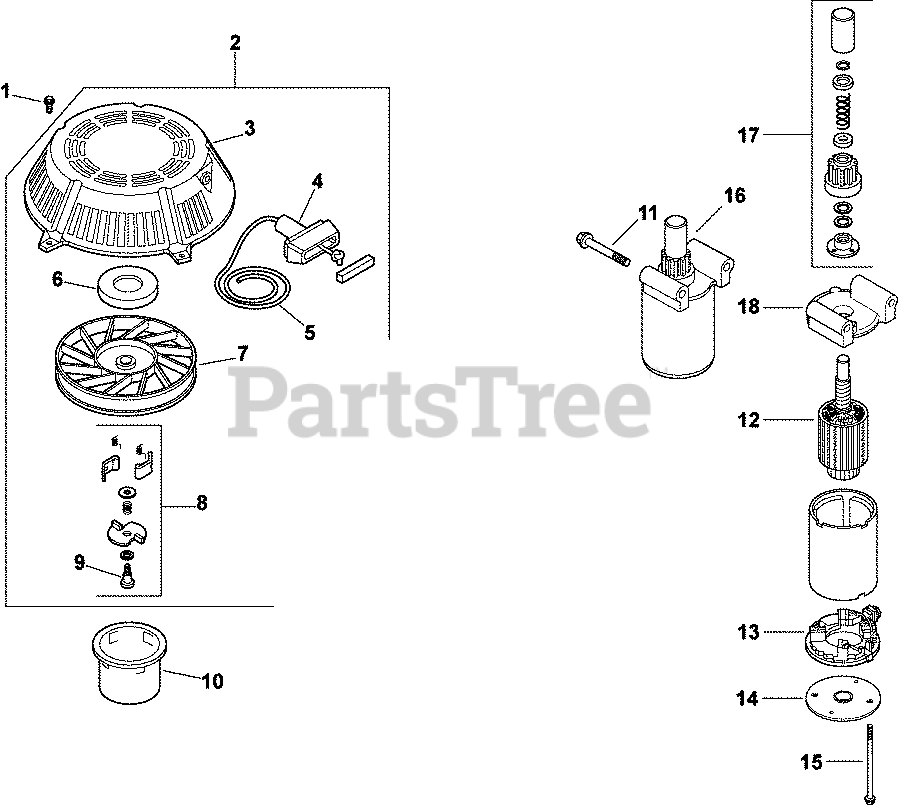

Starting System 7-27-60 Parts Diagram

  • Title

1

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$4.99

$

In Stock, only 3 left!

0

2

Kohler 12 165 01-S

STARTER ASSY,RETRACTABLE-USE 12 165 03-S
(Superseded to 24 165 02-S)

Note: (includes 3-8)

$119.99

$

In Stock, only 2 left!

0

3

Kohler 12 081 01-S

HOUSING - DISCONTINUED

$

$

Not available

4

Kohler 25 166 01-S

HANDLE, RECOIL STARTER

$18.99

$

In Stock, Qty 8

0

5

Kohler 12 160 01-S

ROPE - DISCONTINUED

$

$

Not available

6

Kohler 12 089 06-S

SPRING & KEEPER - (#DSC)

$

$

Not available

7

Kohler 12 093 01-S

PULLEY - (#DSC)

$

$

Not available

8

Kohler 12 757 06-S

KIT, DOG REPAIR - (#DSC)

Note: (includes 9)

$

$

Not available

9

Kohler 41 086 09-S

SCREW - DISCONTINUED

$

$

Not available

10

Kohler 15 109 01-S

CUP

$25.99

$

Usually ships in 2-5 days

0

11

Kohler M-839070-S

SCREW, FLG M8X1.25X70

$10.99

$

Usually ships in 2-5 days

0

12

Kohler 12 170 05-S

ARMATURE - DISCONTINUED

$

$

Not available

13

Kohler 12 221 01-S

BRUSH KIT - (#DSC)

$

$

Not available

14

Kohler 12 227 13-S

CAP - DISCONTINUED

$

$

Not available

15

Kohler 12 211 01-S

BOLT, THRU #10-24X4 13/32" - DISCONTINUED

$

$

Not available

16

Kohler 12 098 22-S

ELECTRIC STARTER-BENDIX DRIVE

$334.99

$

In Stock, only 2 left!

0

17

Kohler 12 755 53-S

KIT, DRIVE

$203.99

$

Usually ships in 2-5 days

0

18

Kohler 12 227 19-S

CAP, DRIVE END - (#DSC)

$

$

Not available

1211371-S

Kohler 12 113 71-S

DECAL, STARTING/STOPPING - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2511325-S

Kohler 25 113 25-S

DECAL, MEDIUM ROUND

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0
