CV13-21528 - Kohler Command PRO Engine, Made for Bunton, 13hp, 9.7kW Fuel System 8-27-161 Parts Diagram

Command PRO Engine, Made for Bunton, 13hp, 9.7kW

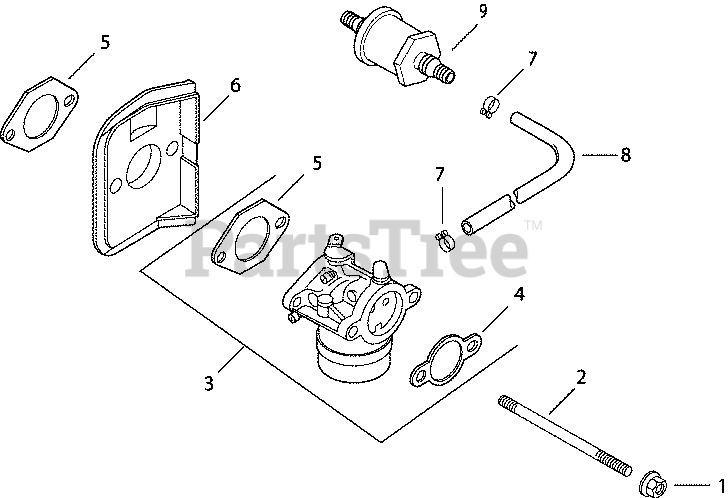

Fuel System 8-27-161 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 10

0

2

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, Qty 6

0

3

Kohler 12 853 139-S

KIT, CARBURETOR w/GASKETS

Note: (includes 4,5)

$263.99

$

In Stock, only 1 left!

0

4

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 14

0

5

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

6

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 1 left!

0

7

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 7

0

8

Kohler 25 353 10-S

LINE, FLEXIBLE FUEL 9.0

$6.49

$

In Stock, only 2 left!

0

9

Kohler 25 050 07-S

FILTER, FUEL

$10.99

$

In Stock, Qty 20+

0

1275592-S

Kohler 12 755 92-S

KIT, HIGH ALTITUDE (+10,000 FT)

Note: NOT ILLUSTRATED

$15.99

$

Usually ships in 2-5 days

0

1275702-S

Kohler 12 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$13.99

$

In Stock, Qty 6

0

1275703-S

Kohler 12 757 03-S

KIT, REPAIR CARBURETOR (PUMP FEED)

Note: NOT ILLUSTRATED

$34.99

$

In Stock, only 3 left!

0

1275708-S

Kohler 12 757 08-S

KIT, CHOKE REPAIR

Note: NOT ILLUSTRATED

$35.99

$

In Stock, only 1 left!

0

1275736-S

Kohler 12 757 36-S

KIT, THROTTLE SHAFT BEARING

Note: NOT ILLUSTRATED

$13.99

$

Usually ships in 2-5 days

0
