CV13-21537 - Kohler Command PRO Engine, Made for Lawn Doctor, 13hp, 9.7kW Starting System 7-27-65 Parts Diagram

Command PRO Engine, Made for Lawn Doctor, 13hp, 9.7kW

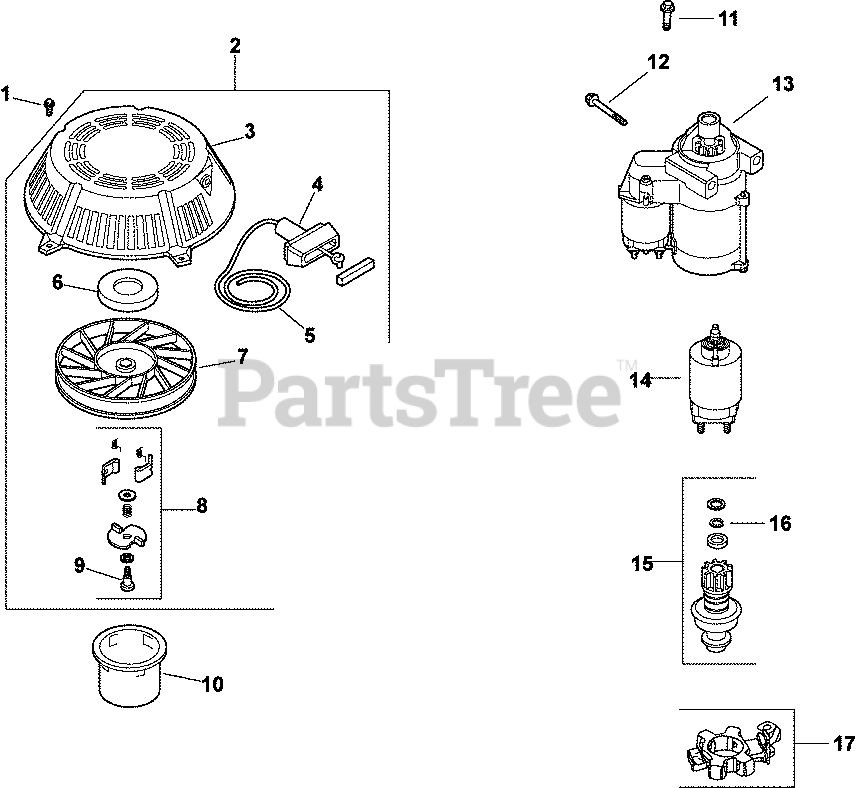

Starting System 7-27-65 Parts Diagram

  • Title

1

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$4.99

$

In Stock, only 3 left!

0

2

Kohler 12 165 01-S

STARTER ASSY,RETRACTABLE-USE 12 165 03-S
(Superseded to 24 165 02-S)

Note: (includes 3-9)

$125.99

$

In Stock, only 2 left!

0

3

Kohler 12 081 01-S

HOUSING - DISCONTINUED

$

$

Not available

4

Kohler 25 166 01-S

HANDLE, RECOIL STARTER

$19.99

$

In Stock, Qty 8

0

5

Kohler 12 160 01-S

ROPE - DISCONTINUED

$

$

Not available

6

Kohler 12 089 06-S

SPRING & KEEPER - (#DSC)

$

$

Not available

7

Kohler 12 093 01-S

PULLEY - (#DSC)

$

$

Not available

8

Kohler 12 757 06-S

KIT, DOG REPAIR - (#DSC)

Note: (includes 9)

$

$

Not available

9

Kohler 41 086 09-S

SCREW - DISCONTINUED

$

$

Not available

10

Kohler 15 109 01-S

CUP

$27.99

$

Usually ships in 2-5 days

0

11

Kohler 25 086 113-S

SCREW, EXTERNAL TORX HEAD

$18.99

$

Usually ships in 2-5 days

0

12

Kohler M-839070-S

SCREW, FLG M8X1.25X70

$10.99

$

Usually ships in 2-5 days

0

13

Kohler 25 098 09-S

STARTER, SOLENOID SHIFT-USE 25 098 11-S
(Superseded to 25 098 20-S)

Note: (includes 11, 15-17)

$400.99

$

Usually ships in 2-5 days

0

14

Kohler 25 435 06-S

KIT, SOLENOID

Note: (includes 11)

$243.99

$

In Stock, only 1 left!

0

15

Kohler 25 755 33-S

KIT, STARTER PINION

Note: (includes 16)

$

$

Not available

16

Kohler 25 141 05-S

RING, RETAINING-(#DSC)

$

$

Not available

17

Kohler 25 221 01-S

KIT, BRUSH HOLDER

$81.99

$

Usually ships in 2-5 days

0

1211371-S

Kohler 12 113 71-S

DECAL, STARTING/STOPPING - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2511325-S

Kohler 25 113 25-S

DECAL, MEDIUM ROUND

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0
