CV15-41539 - Kohler Command PRO Engine, Made for Castel Garden, 15hp, 11.2kW Ignition/Electrical 5-27-143 Parts Diagram

Command PRO Engine, Made for Castel Garden, 15hp, 11.2kW

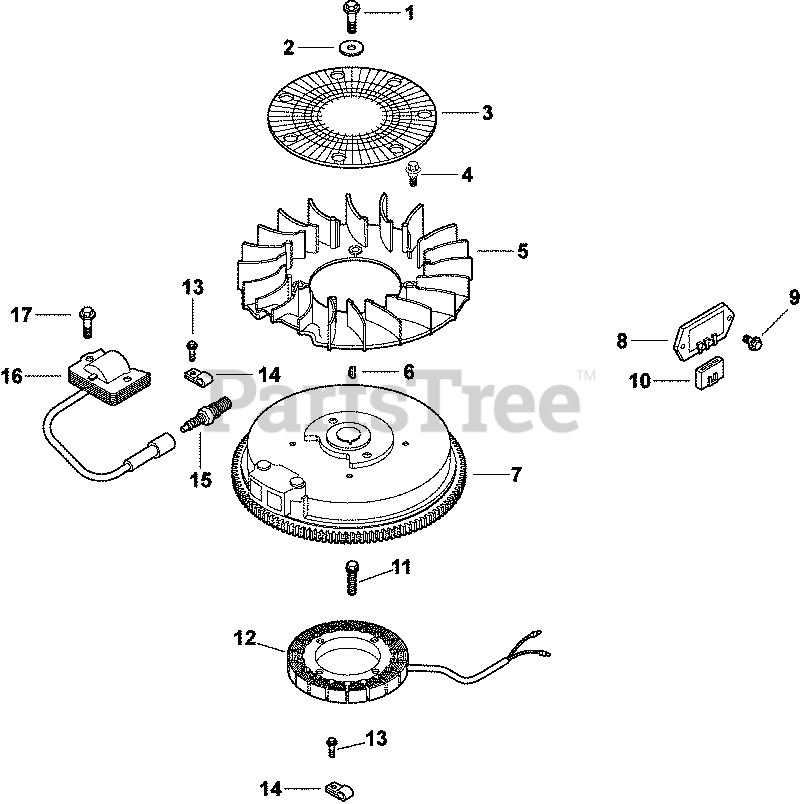

Ignition/Electrical 5-27-143 Parts Diagram

  • Title

1

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

Usually ships in 2-5 days

0

2

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

3

Kohler 24 162 03-S

SCREEN, GRASS

$

$

Not available

4

Kohler 25 086 47-S

BOLT, SHOULDER

$2.99

$

In Stock, Qty 20+

0

5

Kohler 12 157 06-S

FAN

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

7

Kohler 12 025 33-S

USE 12 025 72-S FLYWHEEL
(Superseded to 12 025 72-S)

$393.99

$

Usually ships in 2-5 days

0

8

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$126.99

$

Usually ships in 2-5 days

0

9

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 1 left!

0

10

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$31.99

$

In Stock, only 2 left!

0

11

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.99

$

In Stock, only 2 left!

0

12

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 12

0

13

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

14

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.99

$

Usually ships in 2-6 days

0

16

Kohler 12 584 04-S

MODULE, IGNITION

$71.99

$

Usually ships in 2-5 days

0

17

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.99

$

In Stock, Qty 20+

0

2551826-S

Kohler 25 518 26-S

LEAD - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2551827-S

Kohler 25 518 27-S

LEAD - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2451812-S

Kohler 24 518 12-S

LEAD

Note: NOT ILLUSTRATED

$5.99

$

In Stock, only 2 left!

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
