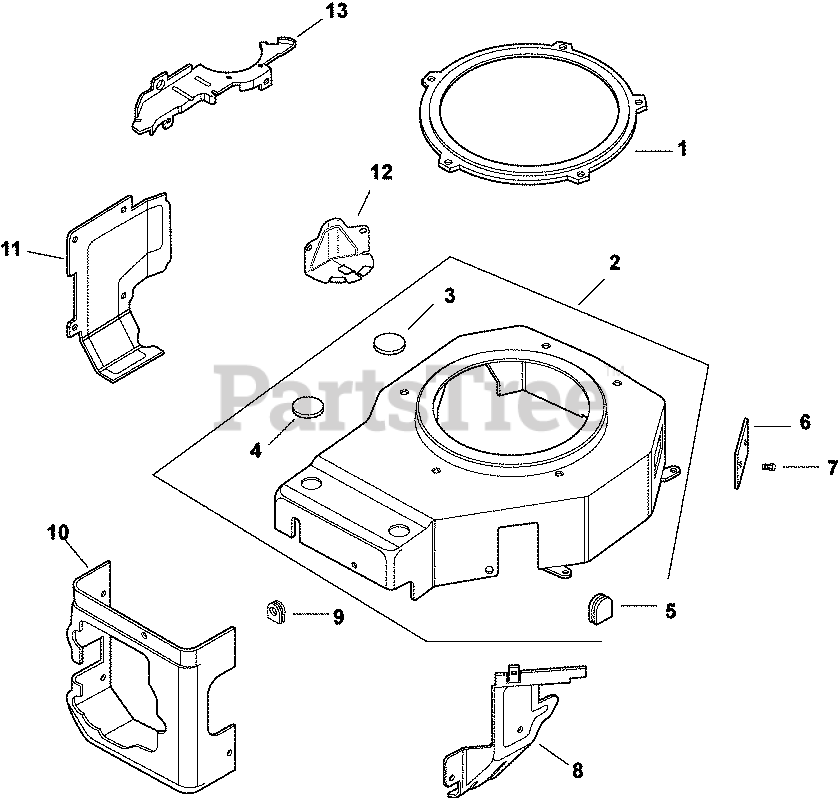

CV15-41552 - Kohler Command PRO Engine, Made for Ransomes, 15hp, 11.2kW Blower Housing & Baffles 6-27-86 Parts Diagram

Command PRO Engine, Made for Ransomes, 15hp, 11.2kW

Blower Housing & Baffles 6-27-86 Parts Diagram

  • Title

1

Kohler 12 314 10-S

GUARD, GRASS SCREEN - DISCONTINUED

$

$

Not available

2

Kohler 12 027 69-S

KIT, BLOWER HOUSING - DISCONTINUED

Note: (includes 2-5 & 41 037 10-S)

$

$

Not available

3

Kohler 25 139 17-S

PLUG, BUTTON 1/2

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

5

Kohler 12 313 05-S

GROMMET

$20.99

$

Usually ships in 2-5 days

0

6

Kohler 12 096 29-S

COVER, STARTER MOTOR

$12.99

$

Usually ships in 2-5 days

0

7

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

8

Kohler 12 063 10-S

BAFFLE, INTAKE SIDE

$45.99

$

Usually ships in 2-5 days

0

9

Kohler 12 313 03-S

GROMMET

$

$

Not available

10

Kohler 12 063 19-S

BAFFLE, CYLINDER - DISCONTINUED

$

$

Not available

11

Kohler 12 063 08-S

BAFFLE, CYLINDER HEAD

$48.99

$

Usually ships in 2-5 days

0

12

Kohler 12 096 29-S

COVER, STARTER MOTOR

$12.99

$

Usually ships in 2-5 days

0

13

Kohler 12 146 07-S

PLATE, BACKING

$9.49

$

Usually ships in 2-5 days

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

Note: NOT ILLUSTRATED

$4.49

$

In Stock, Qty 13

0

M-550010-S

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 3 left!

0

M-561016-S

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 15

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.49

$

In Stock, only 3 left!

0
