CV15-41560 - Kohler Command PRO Engine, Made for Toro, 15hp, 11.2kW Ignition/Electrical 5-27-292 Parts Diagram

Command PRO Engine, Made for Toro, 15hp, 11.2kW

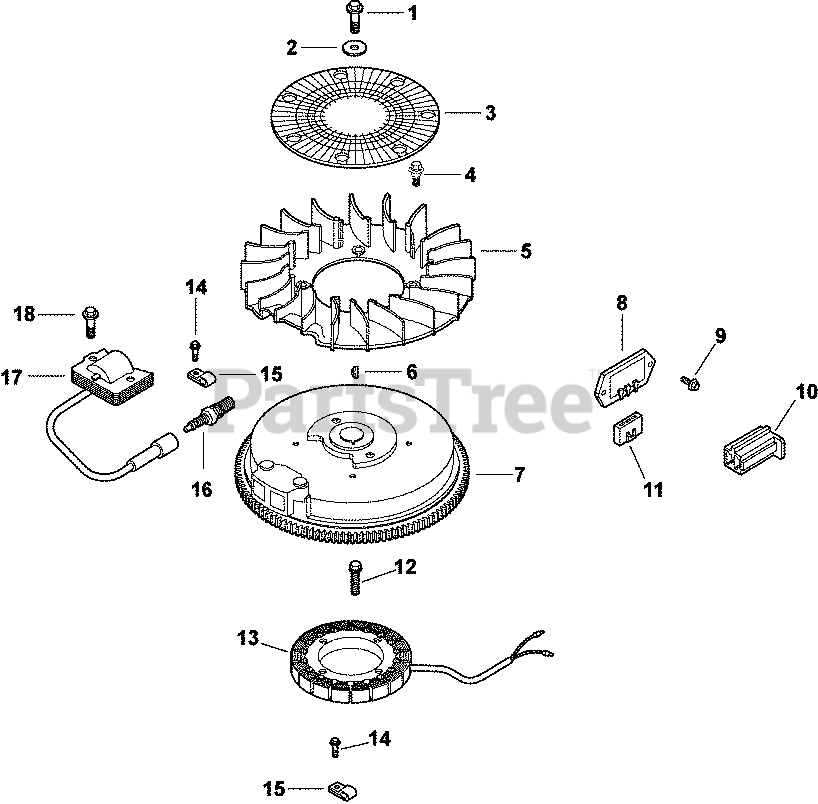

Ignition/Electrical 5-27-292 Parts Diagram

  • Title

1

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.49

$

In Stock, only 1 left!

0

2

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$6.49

$

In Stock, only 1 left!

0

3

Kohler 12 162 03-S

SCREEN

$12.99

$

Usually ships in 2-5 days

0

4

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 12 157 03-S

FAN - DISCONTINUED

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 5

0

7

Kohler 12 025 66-S

FLYWHEEL - USE 12 025 65-S
(Superseded to 12 025 65-S)

$

$

Not available

8

Kohler 12 403 01-S

RECTIFIER
(Superseded to 12 755 111-S)

$127.99

$

Usually ships in 2-5 days

0

9

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

10

Kohler 41 155 03-S

CONNECTOR

$4.99

$

Usually ships in 2-5 days

0

11

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$7.99

$

In Stock, Qty 12

0

12

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

13

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 16

0

14

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, Qty 13

0

15

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

17

Kohler 12 584 05-S

MODULE, IGNITION

$125.99

$

Usually ships in 2-5 days

0

18

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 17

0

1212696-S

Kohler 12 126 96-S

BRACKET, GROUND STRAP

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

1251801-S

Kohler 12 518 01-S

LEAD

Note: NOT ILLUSTRATED

$19.99

$

Usually ships in 2-5 days

0

2551805-S

Kohler 25 518 05-S

LEAD

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

Usually ships in 2-5 days

0
