CV15-41579 - Kohler Command PRO Engine, Made for Snapper, 15hp, 11.2kW Exhaust Group 11-27-110 CV18-750 Parts Diagram

Command PRO Engine, Made for Snapper, 15hp, 11.2kW

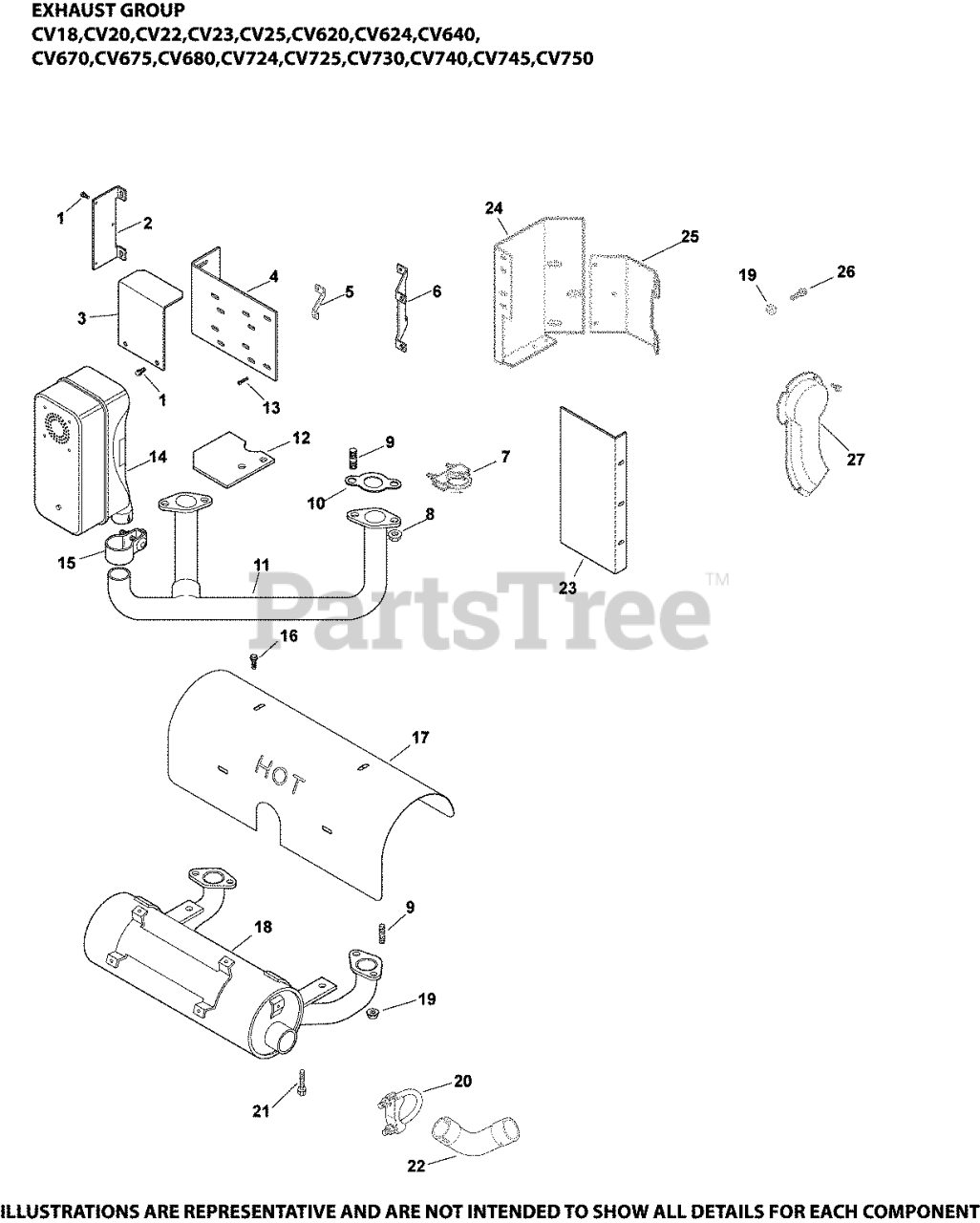

Exhaust Group 11-27-110 CV18-750 Parts Diagram

  • Title

1

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 20+

0

8

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, Qty 7

0

9

Kohler 25 072 14-S

STUD, EXHAUST-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, Qty 20+

0

21

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, Qty 20+

0

1212687-S

Kohler 12 126 87-S

BRACKET, LIFTING STRAP - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

1208613-S

Kohler 12 086 13-S

SCREW, FLG M8X1.25X50
(Superseded to 25 086 618-S)

Note: NOT ILLUSTRATED

$2.99

$

Usually ships in 2-5 days

0

1212655-S

Kohler 12 126 55-S

BRACKET, MUFFLER - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

1246801-S

Kohler 12 468 01-S

WASHER, FLAT 11/32"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

1204103-S

Kohler 12 041 03-S

GASKET, EXHAUST MANIFOLD

Note: NOT ILLUSTRATED

$7.49

$

In Stock, Qty 9

0

1206842-S

Kohler 12 068 42-S

MUFFLER

Note: NOT ILLUSTRATED

$238.99

$

Usually ships in 2-5 days

0

X-25-52-S

Kohler X-25-52-S

WASHER, FLAT 1/4"

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 2 left!

0

1218902-S

Kohler 12 189 02-S

SPARK ARRESTOR

Note: NOT ILLUSTRATED

$47.99

$

Usually ships in 2-5 days

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

Note: NOT ILLUSTRATED

$4.49

$

In Stock, Qty 9

0
