CV15-41597 - Kohler Command PRO Engine, Made for Fhp, 15hp, 11.2kW Fuel System 8-27-191 Parts Diagram

Command PRO Engine, Made for Fhp, 15hp, 11.2kW

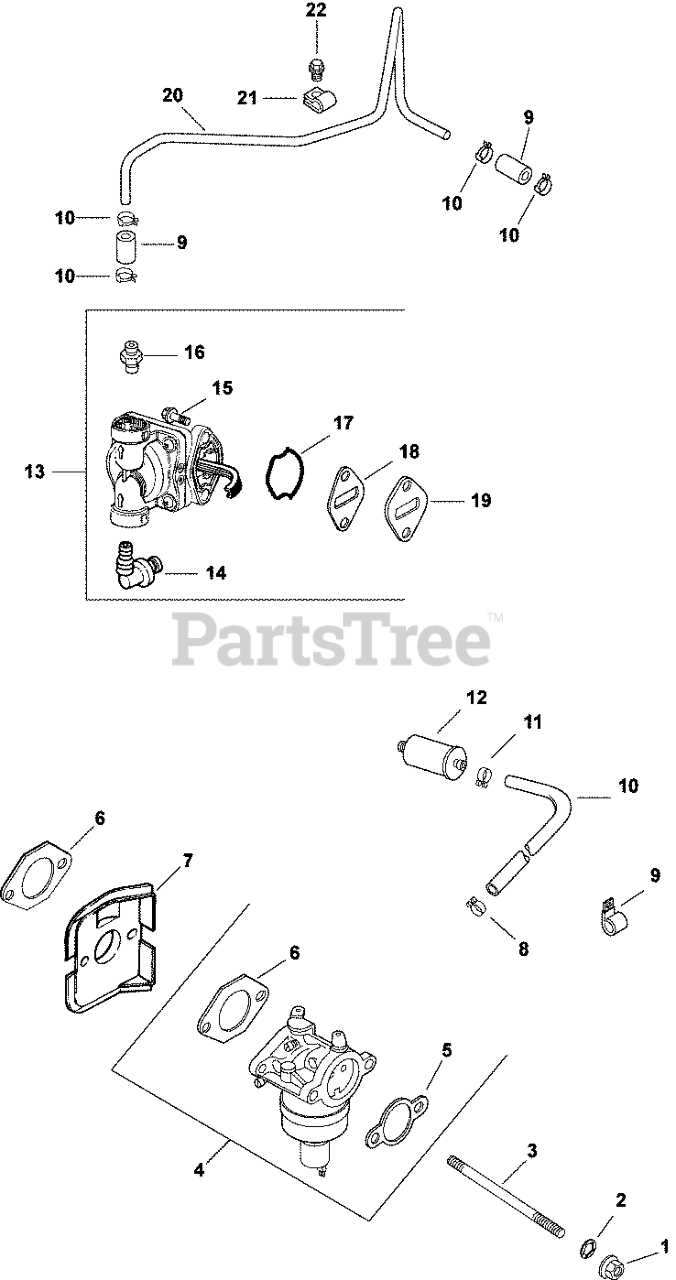

Fuel System 8-27-191 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

2

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

3

Kohler M-629116-S

STUD,M6X1.0X116

$

$

Not available

4

Kohler 12 853 131-S

KIT, CARBURETOR - USE 12 853 178-S
(Superseded to 12 853 178-S)

Note: (after S/N 3536600001)(includes 5,6)

$336.99

$

In Stock, only 2 left!

0

1285395-S

Kohler 12 853 95-S

KIT, CARB W/GASKETS - USE 12 853 93-S
(Superseded to 12 853 93-S)

Note: (before S/N 3536600011)

$269.99

$

In Stock, only 1 left!

0

5

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 10

0

6

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 10

0

7

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

8

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 14

0

9

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 2 left!

0

10

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 9

0

11

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.99

$

In Stock, only 2 left!

0

12

Kohler 25 050 21-S

FILTR,FUEL 75 MICRON (GRAVTY FEED)

$12.99

$

Usually ships in 2-5 days

0

13

Kohler 12 559 02-S

KIT, FUEL PUMP

Note: (includes 14-19 & 25 141 06-S)

$56.99

$

In Stock, only 3 left!

0

14

Kohler 12 294 13-S

CONNECTOR, 90 DEG. HOSE

$6.99

$

Usually ships in 2-5 days

0

15

Kohler M-664020-S

SCREW, LBD SKT M6x1.0x20-(#25086403S)
(Superseded to 25 086 403-S)

$2.99

$

In Stock, only 3 left!

0

16

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.99

$

In Stock, Qty 8

0

17

Kohler 25 041 10-S

GASKET, FUEL PUMP

$3.49

$

In Stock, only 2 left!

0

18

Kohler 12 112 05-S

SPACER, FUEL PUMP

$7.49

$

In Stock, only 1 left!

0

19

Kohler 25 153 04-S

O-RING, FUEL PUMP

$2.99

$

In Stock, Qty 5

0

20

Kohler 12 123 19-S

LINE, FUEL

$23.99

$

In Stock, only 2 left!

0

21

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

22

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

1251837-S

Kohler 12 518 37-S

LEAD

Note: NOT ILLUSTRATED

$5.49

$

Usually ships in 2-5 days

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

M-561010-S

Kohler M-561010-S

SCREW, THRD FRM M5X0.8X10

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2514106-S

Kohler 25 141 06-S

TOOL, INSTALLATION (SNAP RING)

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

1252104-S

Kohler 12 521 04-S

KIT, INLET SEAT (PRESSURE) CMD

Note: NOT ILLUSTRATED

$78.99

$

In Stock, Qty 5

0
