CV15-41603 - Kohler Command PRO Engine, Made for Snapper, 15hp, 11.2kW Fuel System 8-27-201 Parts Diagram

Command PRO Engine, Made for Snapper, 15hp, 11.2kW

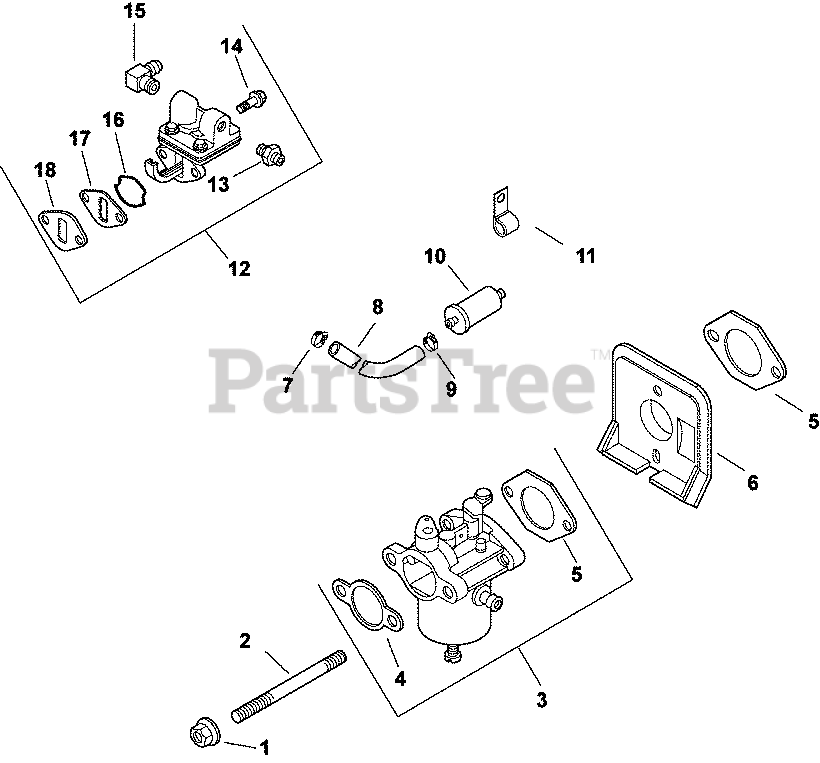

Fuel System 8-27-201 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

2

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

Usually ships in 2-5 days

0

3

Kohler 12 853 140-S

KIT, CARBURETOR w/GASKETS

Note: (includes 4,5)

$269.99

$

In Stock, only 2 left!

0

4

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, only 3 left!

0

5

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 13

0

6

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 1 left!

0

7

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 14

0

8

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 8

0

9

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.99

$

In Stock, only 2 left!

0

10

Kohler 25 050 21-S

FILTR,FUEL 75 MICRON (GRAVTY FEED)

$8.99

$

Usually ships in 2-5 days

0

11

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 2 left!

0

12

Kohler 12 559 02-S

KIT, FUEL PUMP

Note: (includes 13-18 & 25 141 06-S)

$48.99

$

In Stock, Qty 6

0

13

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.49

$

In Stock, Qty 9

0

14

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.99

$

In Stock, Qty 10

0

15

Kohler 12 294 13-S

CONNECTOR, 90 DEG. HOSE

$7.99

$

Usually ships in 2-5 days

0

16

Kohler 25 153 04-S

O-RING, FUEL PUMP

$2.99

$

In Stock, Qty 6

0

17

Kohler 12 112 05-S

SPACER, FUEL PUMP

$7.49

$

In Stock, only 2 left!

0

18

Kohler 25 041 10-S

GASKET, FUEL PUMP

$3.49

$

In Stock, only 1 left!

0

2514106-S

Kohler 25 141 06-S

TOOL, INSTALLATION (SNAP RING)

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

1252104-S

Kohler 12 521 04-S

KIT, INLET SEAT (PRESSURE) CMD

Note: NOT ILLUSTRATED

$60.99

$

In Stock, Qty 5

0
